Akai 1700 Service Manual

Il

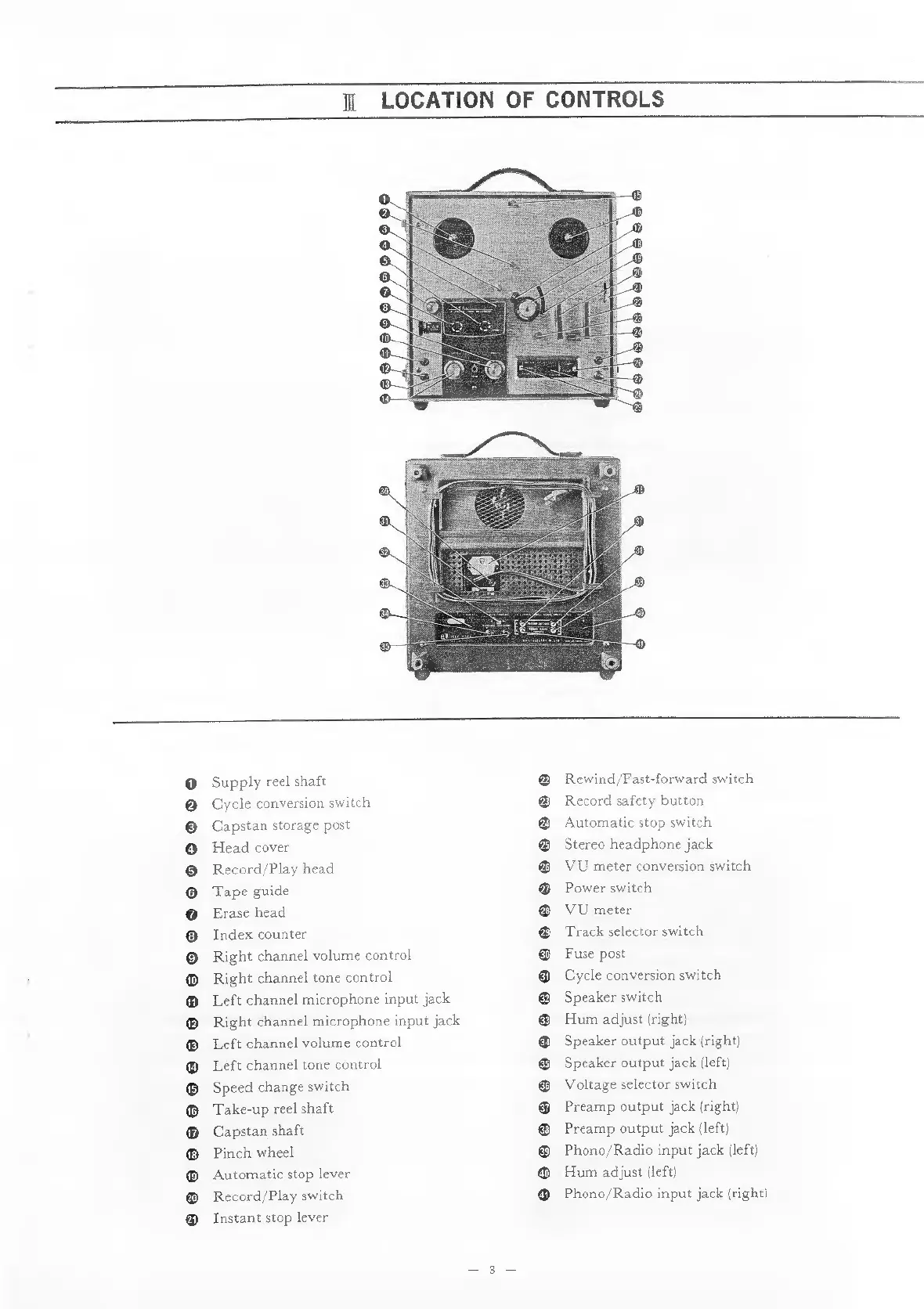

LOCATION
OF
CONTROLS
SBSGSBHG8SOGHOHGBHSSGOORODDOOOS
Supply reel shaft
Cycle conversion switch
Capstan storage post
Head cover
Record/Play head
Tape guide
Erase head
Index counter
Right channel volume control
Right channel tone control
Left channel microphone input jack
Right channel microphone input jack
Left channel volume control
Left channel tone control
Speed change switch
Take-up reel shaft
Capstan shaft
Pinch wheel
Automatic stop lever
Record/Play switch
Instant stop lever
SGE6GGOSHOSSBBSHBHOHHHBHS
Rewind/Fast-forward switch
Record safety button
Automatic stop switch
Stereo headphone jack
VU meter conversion switch
Power switch
VU meter
Track selector switch
Fuse post
Cycle conversion switch
Speaker switch
Hum adjust (right)
Speaker output jack (right)
Speaker output jack (left)
Voltage selector switch
Preamp output jack (right)
Preamp output jack (left)
Phono/Radio input jack (left)
Hum adjust (left)
Phono/Radio input jack (right!
