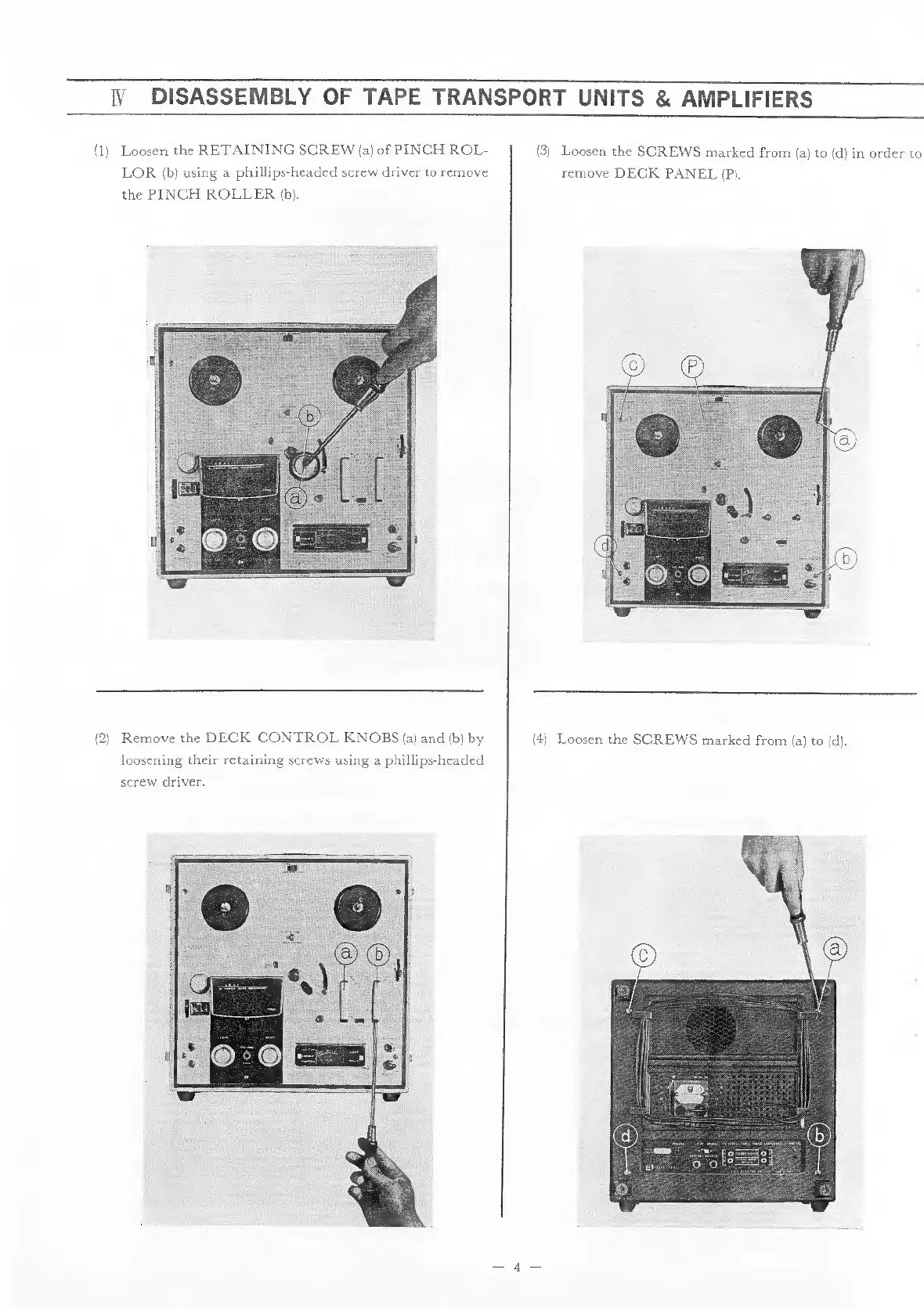

VV
DISASSEMBLY
OF
TAPE
TRANSPORT
UNITS
&
AMPLIFIERS
(1)
Loosen
the
RETAINING
SCREW
{a}
of
PINCH
ROL-
(3)
Loosen
the
SCREWS
marked
from
(a)
to
(d)
in
order
to
LOR
(b}
using
a
phillips-headed
screw
driver
to
remove
remove
DECK
PANEL
(P).
the
PINCH
ROLLER
(b).
(2)
Remove
the
DECK
CONTROL
KNOBS
(a)
and
(b)
by
(4)
Loosen
the
SCREWS
marked
from
(a)
to
(d).
loosening
their
retaining
screws
using
a
phillips-headed
screw
driver.
