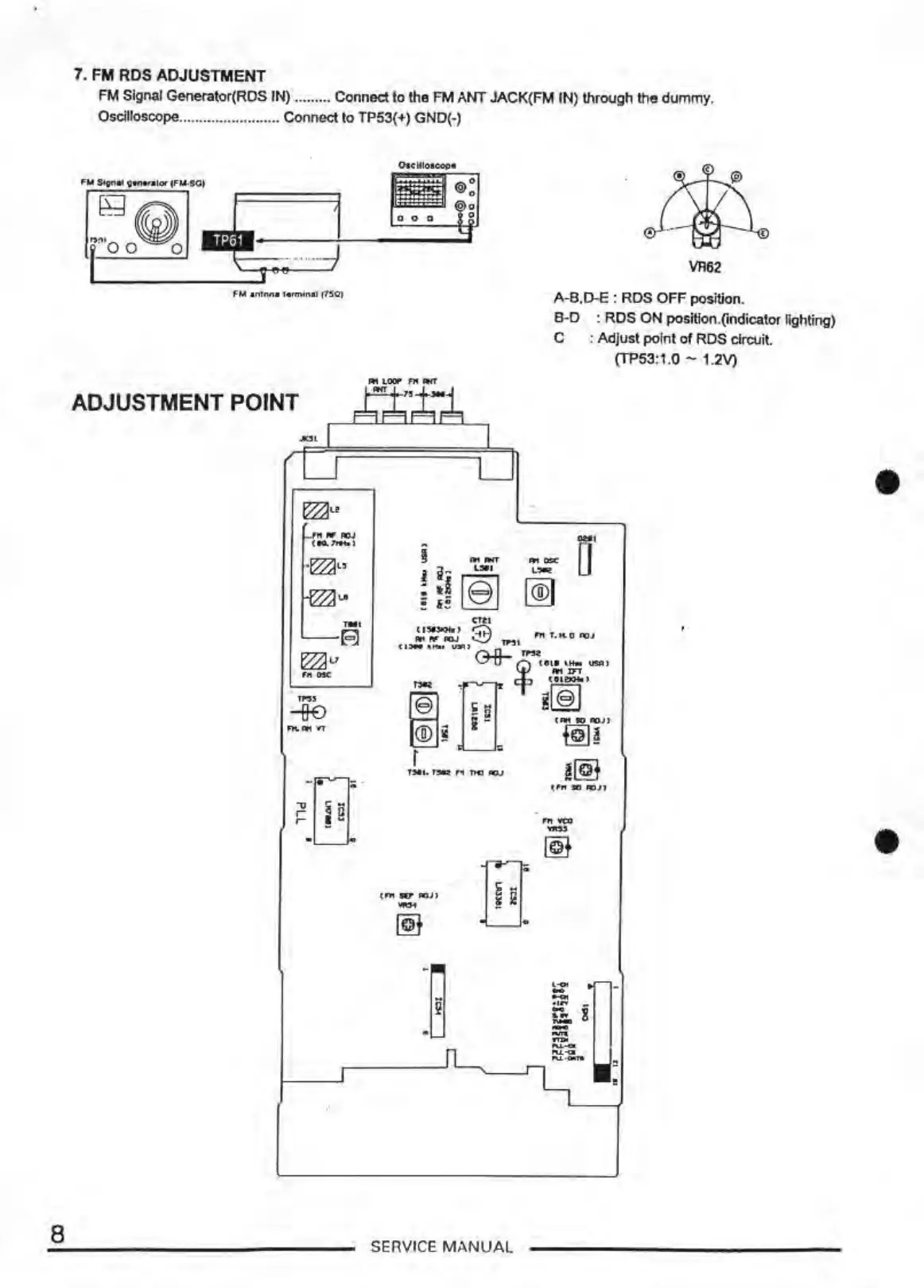

7. FM ROS A DJUST MENT
FM Signal Generator(RDS IN) •........ Connect to the FM ANT JACK(FM IN) through the dummy.
Oscilloscope .........................
Connect to TP53(+) GND(·)
ADJUSTMENT PO I NT
....... ..,
''"'"
""
~
SERVICE MANUA L
VR62
A-B,D-E : RDS OFF position.
B-D :
RDS ON position.(indicator fighting)
C : Adjust point of RDS circuit.
"' ""
....
@
(TP53:1.0 ~ 1.2V)
•
•
