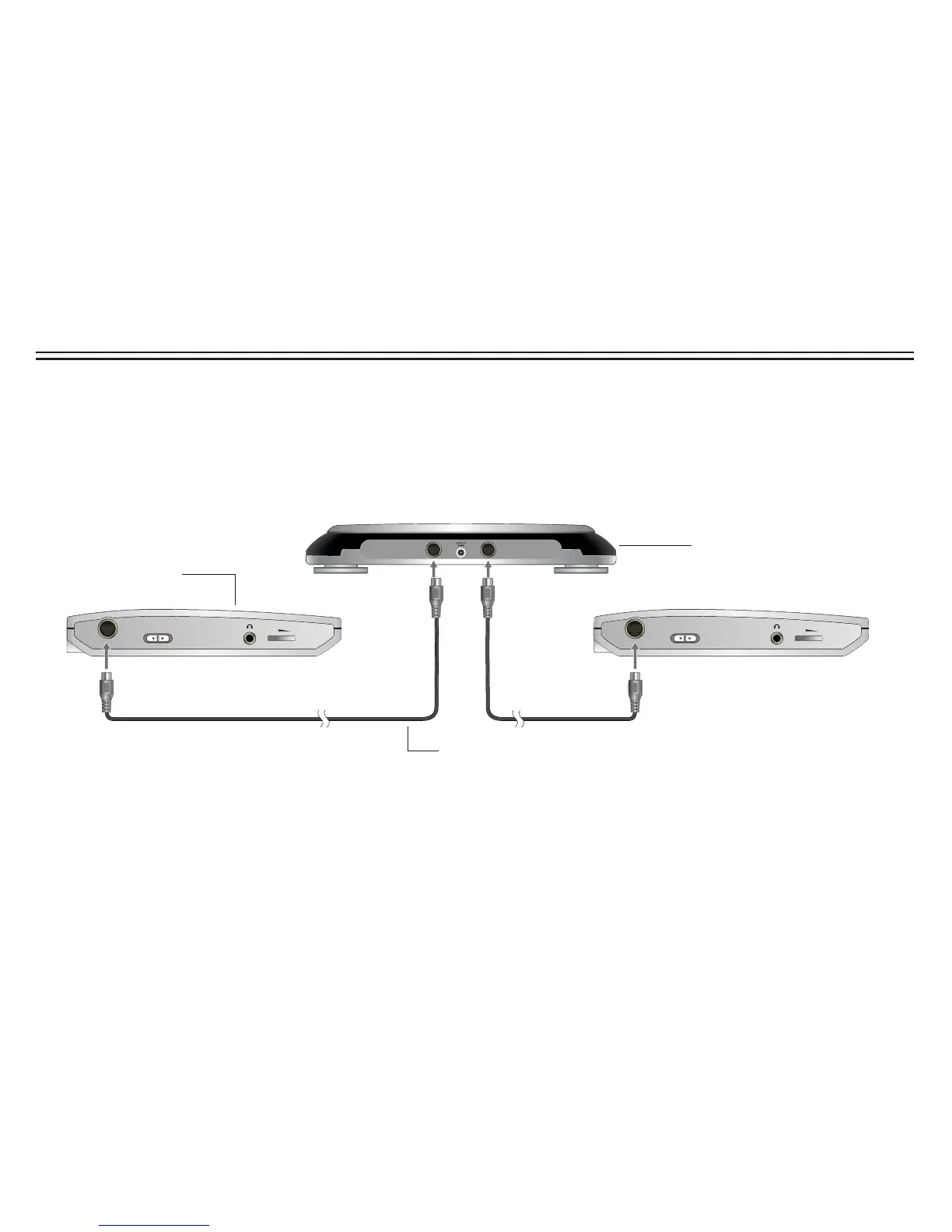

Connecting the LCD Screens
The power for the two screens is provided by the DVD player through the provided cables which also serve to provide the audio/video
signal from the player to the screens. Follow these steps to make the connections.
Warning!
1. Do not turn on the DVD player power until the connection of Power/AV cable between the Player and the screen is done.
2. Always turn off the DVD player power before disconnecting the Power/AV cable between the Player and the screen.
1. Connect one end of the Power/AV cable (mini DIN) to the OUT1 on the player and the other end to the DC. AV INPUT on the screen.
2. Repeat step 1 for the other screen.
OUT1 OUT 2
ON OFF
POWER
VOL
DC .AV INPUT
ON OFF
POWER
VOL
DC .AV INPUT
DVD Player
LCD Screen
Power/AV Cable
