Selecting the Installation Place (Cont.)
Outdoor unit
• Do not install the unit:
• Near sources of heat, steam or
flammable gas.
• Where it is exposed to high
winds or excessive dust.
• Where people often pass.
• Avoid installing the unit where it
will be exposed to direct sunlight
(otherwise use a protection that will
not interfere with the airflow).
• Select a place where the air
discharge and operating sound
level will not disturb neighbours.
Installation diagram (Fig. 6)
Only persons and/or companies qualified and experienced in the installation,
service and repair of refrigerant products should be permitted to do so. The
purchaser must ensure that the person and/or company who is to install,
service or repair this air conditioner has qualifications and experience in
refrigerant products.
• Leave the minimum clearances around the unit for free air circulation (Fig. 5).
• Install the outdoor unit in a safe and solid place.
• If the outdoor unit is subject to vibration, place rubber gaskets on the feet
of the unit.

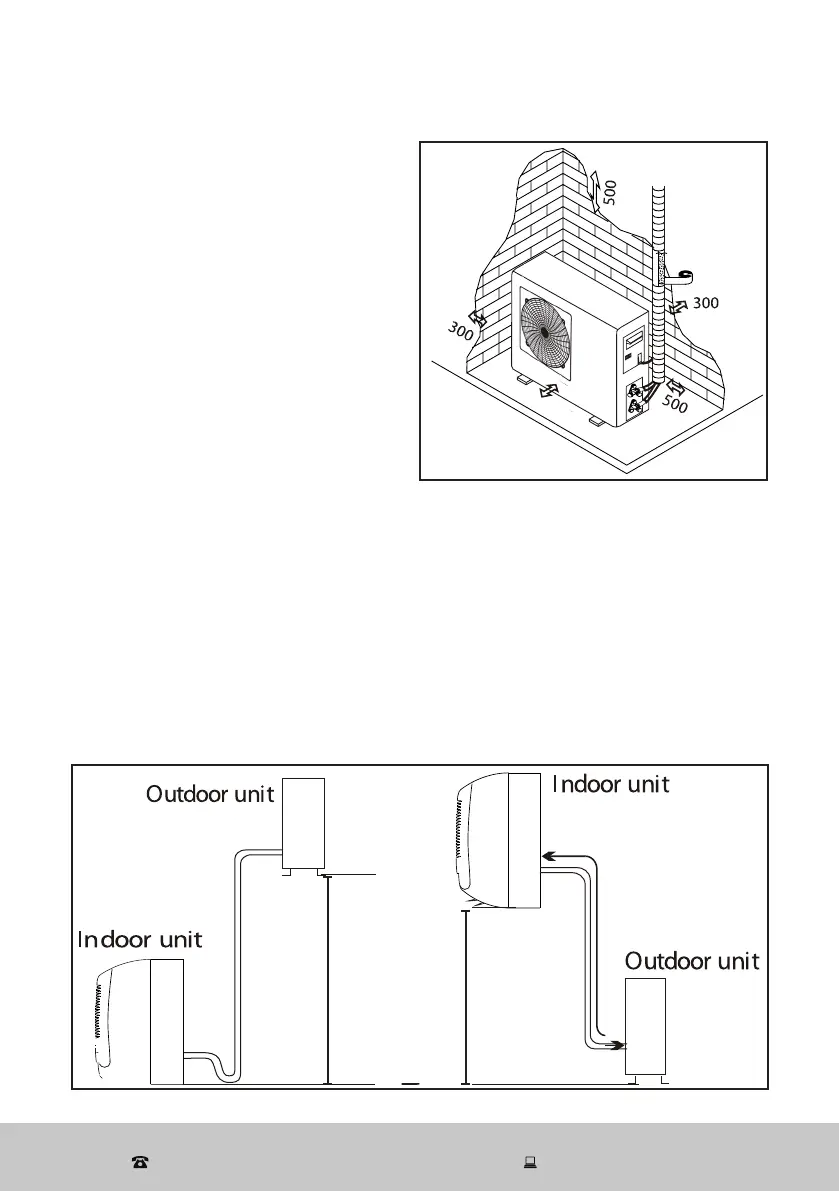

Fig. 6
Pipe length is
15m max.
Pipe length is
15m max.
Height should be less
than 5m
Height should be less
than 5m
Fig. 5
Minimum
clearances (mm)
1000
