Installation (Cont.)
Electrical connections for the indoor unit
• Lift the front panel.

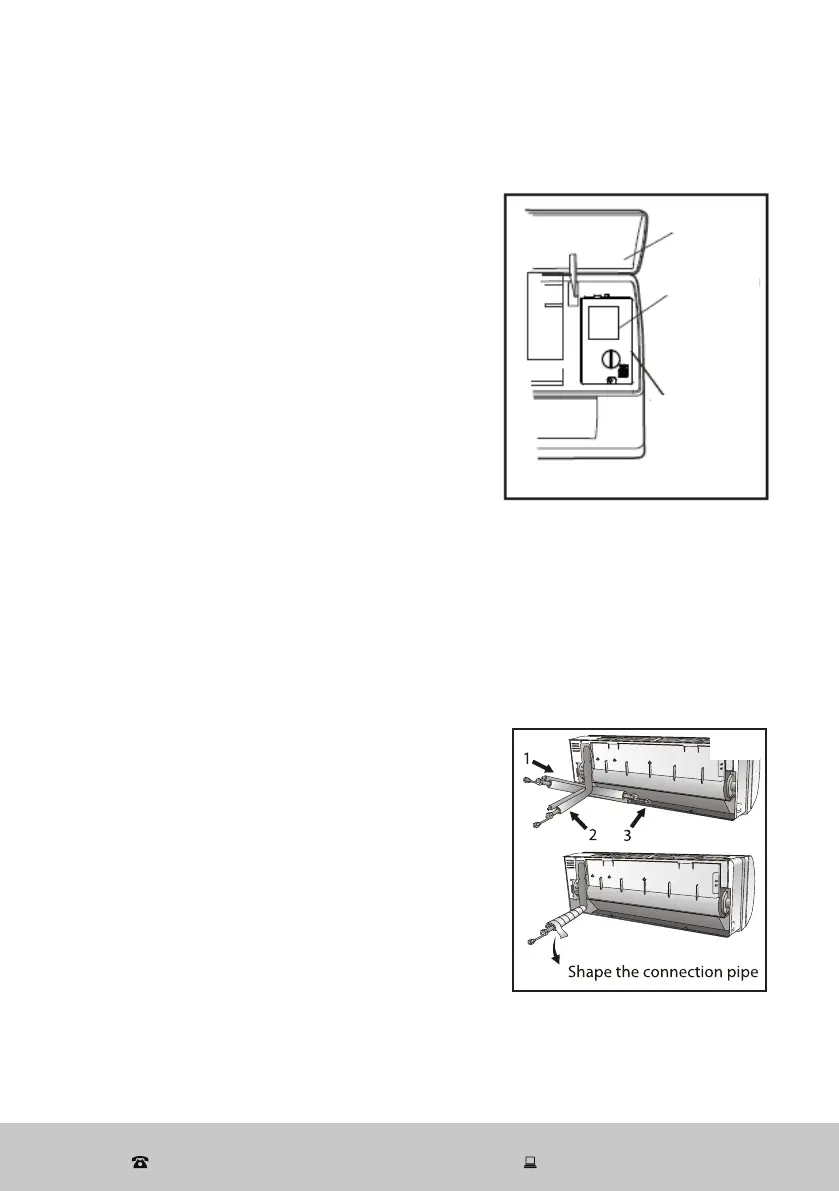

• Take off the cover, as indicated (Fig. 9), by
removing a screw or breaking the hooks.
• For the electrical connections, see the circuit
diagram on the right part of the unit under
the front panel.
• Connect the cable wires to the screw
terminals by following the numbering.
Use wire of a size suitable to the electric
power input (see the unit rating plate) and
according to all current national safety code
requirements.
• The cable connecting the outdoor and indoor
units must be suitable for outdoor use.
• An efficient earth connection must be ensured.
• The appliance must be fitted with means for disconnection from the
supply mains having a contact separation in all poles that provide full
disconnection under overvoltage category III conditions, and these means
must be incorporated in the fixed wiring in accordance with the wiring rules.
• If the power cable is damaged, contact our after sales support centre for
advice on replacement.
Refrigerant piping connection
• The piping can be run in the three directions,
as indicated by the numbers 1 to 3 in Fig. 10.
When the piping is run in directions 1 or 3, cut
a notch along the groove on the side of the
indoor unit with a cutter.
• Run the piping in the direction of the wall
hole and bind the copper pipes, the drain
pipe and the power cables together with
tape at the bottom.
Fig. 10
View from rear
Terminal block
cover
Fig. 9
Wiring diagram
Front panel
