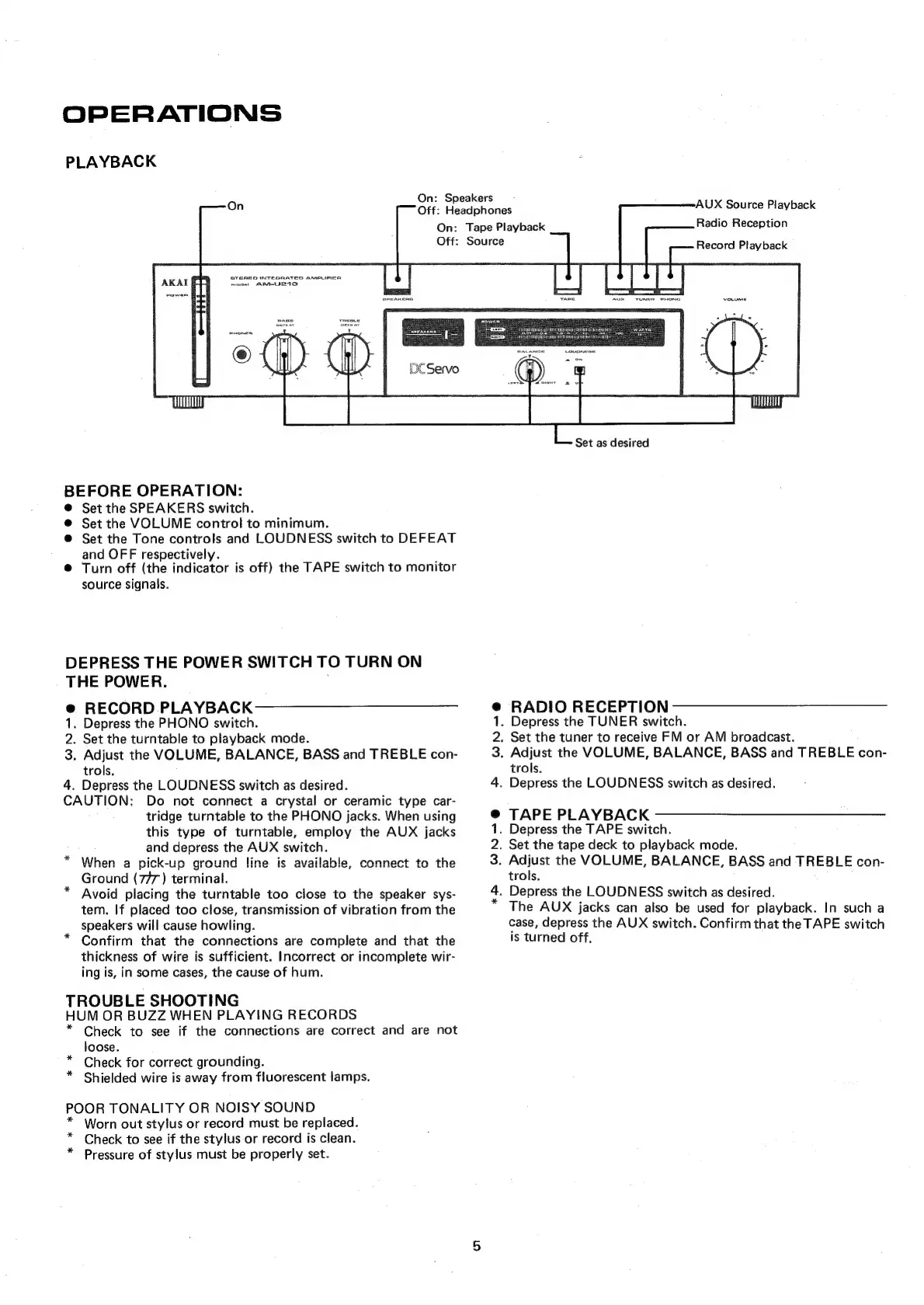

OPERATIONS
PLAYBACK
On: Speakers
On:
Off:
SYEHEG INTEGRATES AMeURIEA
Power
proce
BERORE OPERATION:
Set the SPEAKERS switch.
Set the VOLUME control to minimum.
Set the Tone controls and LOUDNESS switch to DEFEAT
and OFF respectively.
Turn off (the indicator is off) the TAPE switch to monitor
source signals.
DEPRESS THE POWER SWITCH TO TURN ON
THE POWER.
@e RECORD PLAYBACK
1. Depress the PHONO switch.
2. Set the turntable to playback mode.
3. Adjust the VOLUME, BALANCE, BASS and TREBLE con-
trols.
4. Depress the LOUDNESS switch as desired.
CAUTION: Do not connect a crystal or ceramic type car-
tridge turntable to the PHONO jacks. When using
this type of turntable, employ the AUX jacks
and depress the AUX switch.
When a pick- -up ground line is available,
a Wis
Ground (777) terminal.
Avoid placing the turntable too close to the speaker sys-
tem. If placed too close, transmission of vibration from the
speakers will cause howling.
Confirm that the connections are complete and that the
thickness of wire is sufficient. Incorrect or incomplete wir-
ing is, in some cases, the cause of hum.
TROUBLE SHOOTING
HUM OR BUZZ WHEN PLAYING RECORDS
* Check to see if the connections are correct and are not
loose.
Check for correct grounding.
* Shielded wire is away from fluorescent lamps.
conn
GOrint
ect to the
ect to the
*
POOR TONALITY OR NOISY SOUND
* Worn out stylus or record must be replaced.
* Check to see if the stylus or record is clean.
* Pressure of stylus must be properly set.
Off: Headphones
Tape Playback
Source
FF WrhH-@6
kB WNH-@
AUX Source Playback
Radio Reception
Record Playback
Set as desired
RADIO RECEPTION
. Depress the TUNER switch.
. Set the tuner to receive FM or AM broadcast.
. Adjust the VOLUME, BALANCE, BASS and TREBLE con-
trols.
. Depress the LOUDNESS switch as desired.
TAPE PLAYBACK
. Depress the TAPE switch.
. Set the tape deck to playback mode.
. Adjust the VOLUME, BALANCE, BASS and TREBLE con-
trols.
. Depress the LOUDNESS switch as desired.
The AUX jacks can also be used for playback. In such a
case, depress the AUX switch. Confirm that the TAPE switch
is turned off.
