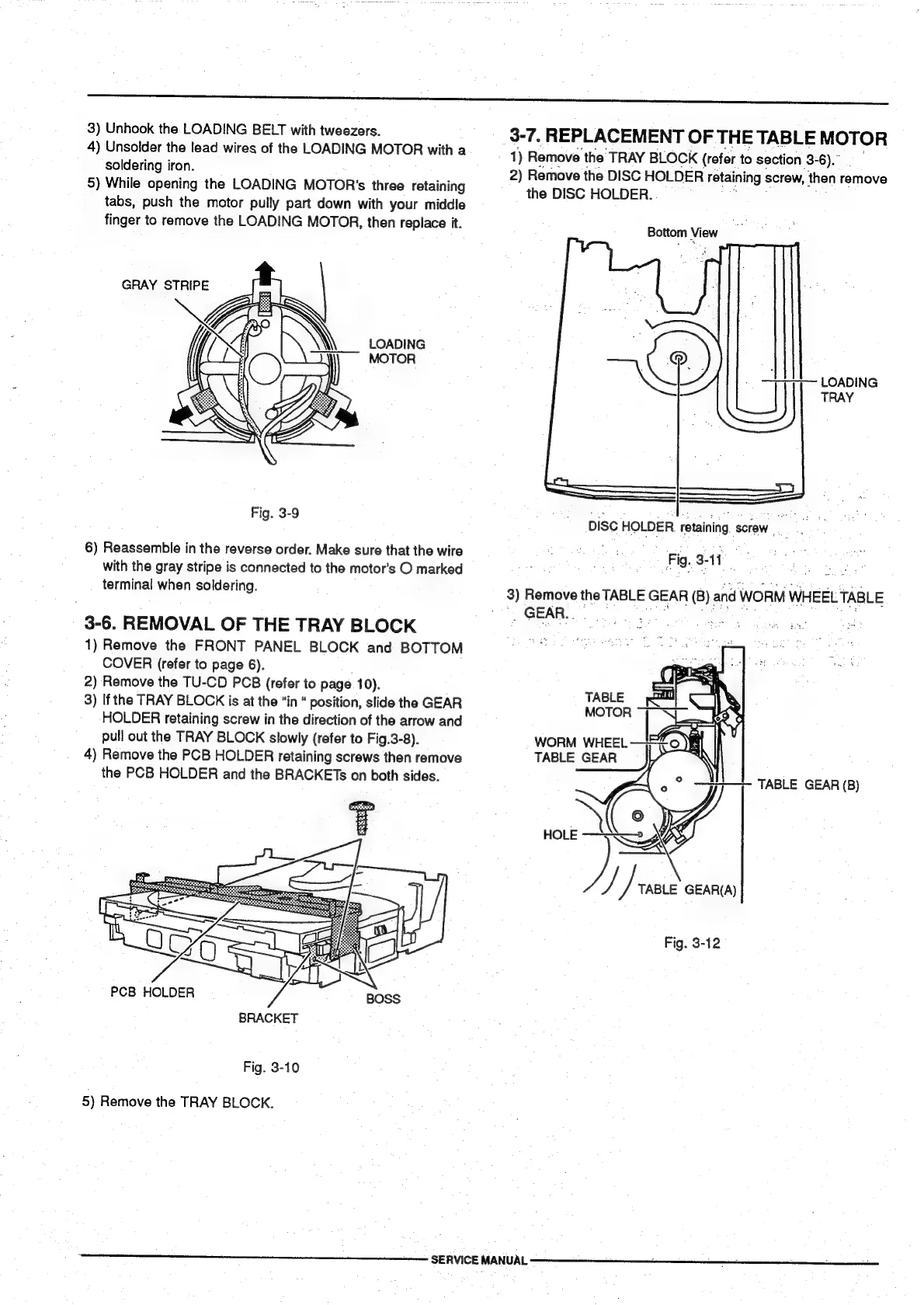

3)
Unhook
the
LOADING
BELT
with
tweezers.
4)
Unsolder
the
lead
wires
of
the
LOADING
MOTOR
with
a
soldering
iron.
5)
While
opening
the
LOADING
MOTOR's
three
retaining
tabs,
push
the
motor
pully
part
down
with
your
middle
finger
to
remove
the
LOADING
MOTOR,
then
replace
it.
GRAY
STRIPE
LOADING
MOTOR
Fig.
3-9
6)
Reassemble
in
the
reverse
order.
Make
sure
that
the
wire
with
the
gray
stripe
is
connected
to
the
motor’s
O
marked
terminal
when
soldering.
3-6.
REMOVAL
OF
THE
TRAY
BLOCK
1)
Remove
the
FRONT
PANEL
BLOCK
and
BOTTOM
COVER
(refer
to
page
6).
2)
Remove
the
TU-CD
PCB
(refer
to
page
10).
3)
If
the
TRAY
BLOCK
is
at
the
“in
position,
slide
the
GEAR
HOLDER
retaining
screw
in
the
direction
of
the
arrow
and
pull
out
the
TRAY
BLOCK
slowly
(refer
to
Fig.3-8).
4)
Remove
the
PCB
HOLDER
retaining
screws
then
remove
the
PCB
HOLDER
and
the
BRACKETs
on
both
sides.
PCB
HOLDER
BRACKET
Fig.
3-10
5)
Remove
the
TRAY
BLOCK.
3-7.
REPLACEMENT
OF
THE
TABLE
MOTOR
1)
Remove
the
TRAY
BLOCK
(refer
to
section
3-6)”
2)
Remove
the
DISC
HOLDER
retaining
screw,
then
remove
the
DISC
HOLDER.
Bo
Oo
-
Bottom
View
LOADING
TRAY
Disc
HOLDER
retaining.
screw
oe
a
Fig.
3-11
3)
Remove
the
TABLE
GEAR
(B)
and
WORM
WHEEL
TABLE
GEN
as
5
es
ty
ae
WORM
WHEEL
—-“o0
)
TABLE
GEAR
|
S|
TABLE
GEAR
(B)
si
y
TABLE
GEAR(A)
Fig.
3-12
renames
SERVICE
MANUAL
