Akai AX-890 User Manual

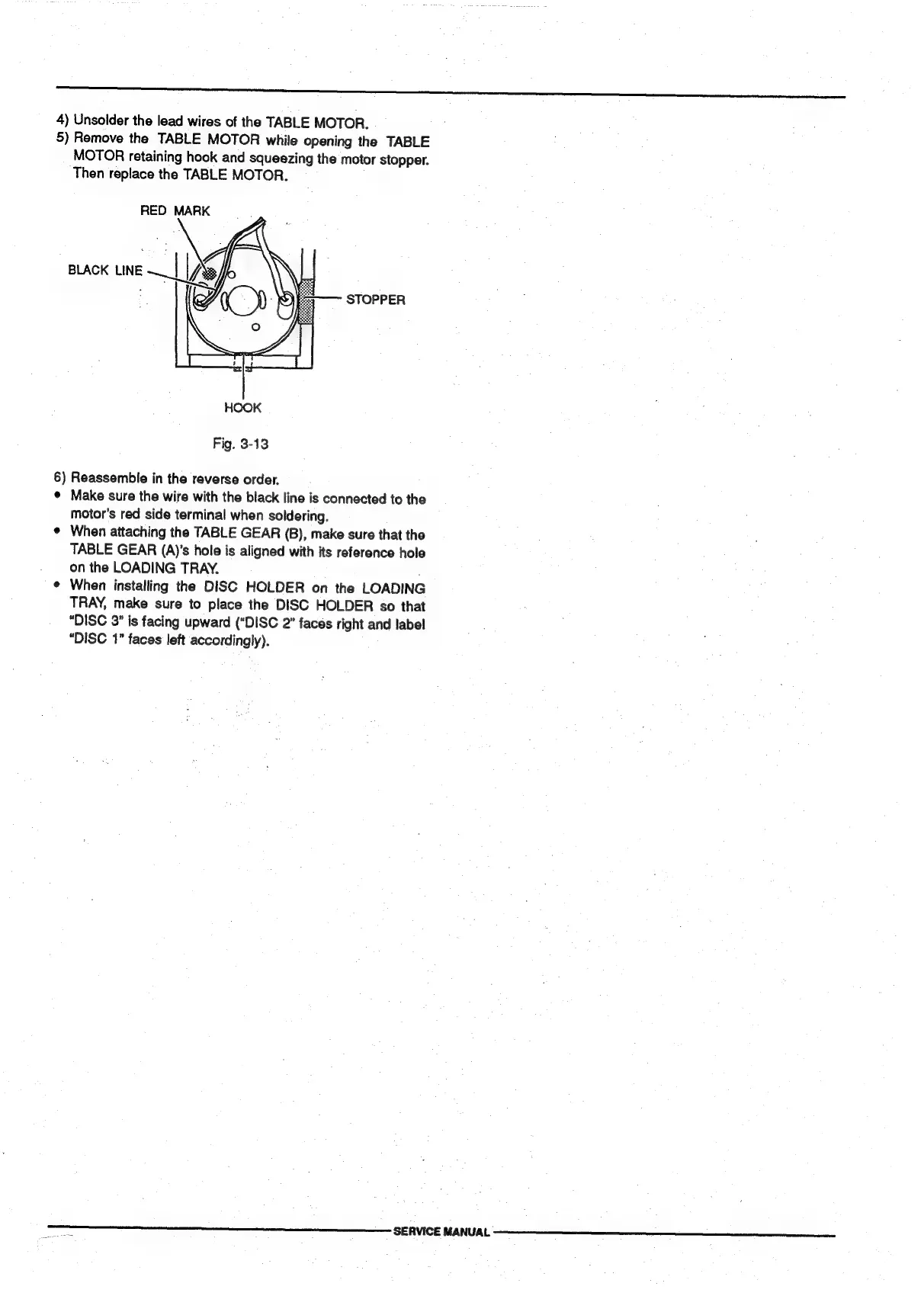

4)
Unsolder
the
lead
wires
of
the
TABLE
MOTOR.
5)
Remove
the
TABLE
MOTOR
while
opening
the
TABLE
MOTOR
retaining
hook
and
squeezing
the
motor
stopper.
Then
replace
the
TABLE
MOTOR.
RED MARK
MA
BLACK LINE
STOPPER
HOOK
Fig. 3-13
6) Reassemble in the reverse order.
©
Make
sure
the
wire
with
the
black
line
is
connected
to
the
motor's
red
side
terminal
when
soldering.
¢
When
attaching
the
TABLE
GEAR
(B),
make
sure
that
the
TABLE
GEAR
(A)’s
hole
is
aligned
with
its
reference
hole
on
the
LOADING
TRAY.
¢
When
installing
the
DISC
HOLDER
on
the
LOADING
TRAY,
make
sure
to
place
the
DISC
HOLDER
so
that
“DISC
3”
is
facing
upward
(“DISC
2”
faces
right
and
label
“DISC
1”
faces
left
accordingly).
rere
neces
SERVICE
MANUAL
ee
eneeeeereneees
