IV.
ADJUSTMENT
(TUNER
SECTION)
Note:
There
is
no
adjustment
for
the
CD
player.
4-1.
INSTRUMENT
CONNECTIONS
DISTORTION
_
METER
Place
as
close
as
possible
TEST
LOOP
ANTENNA
OUTPUT.

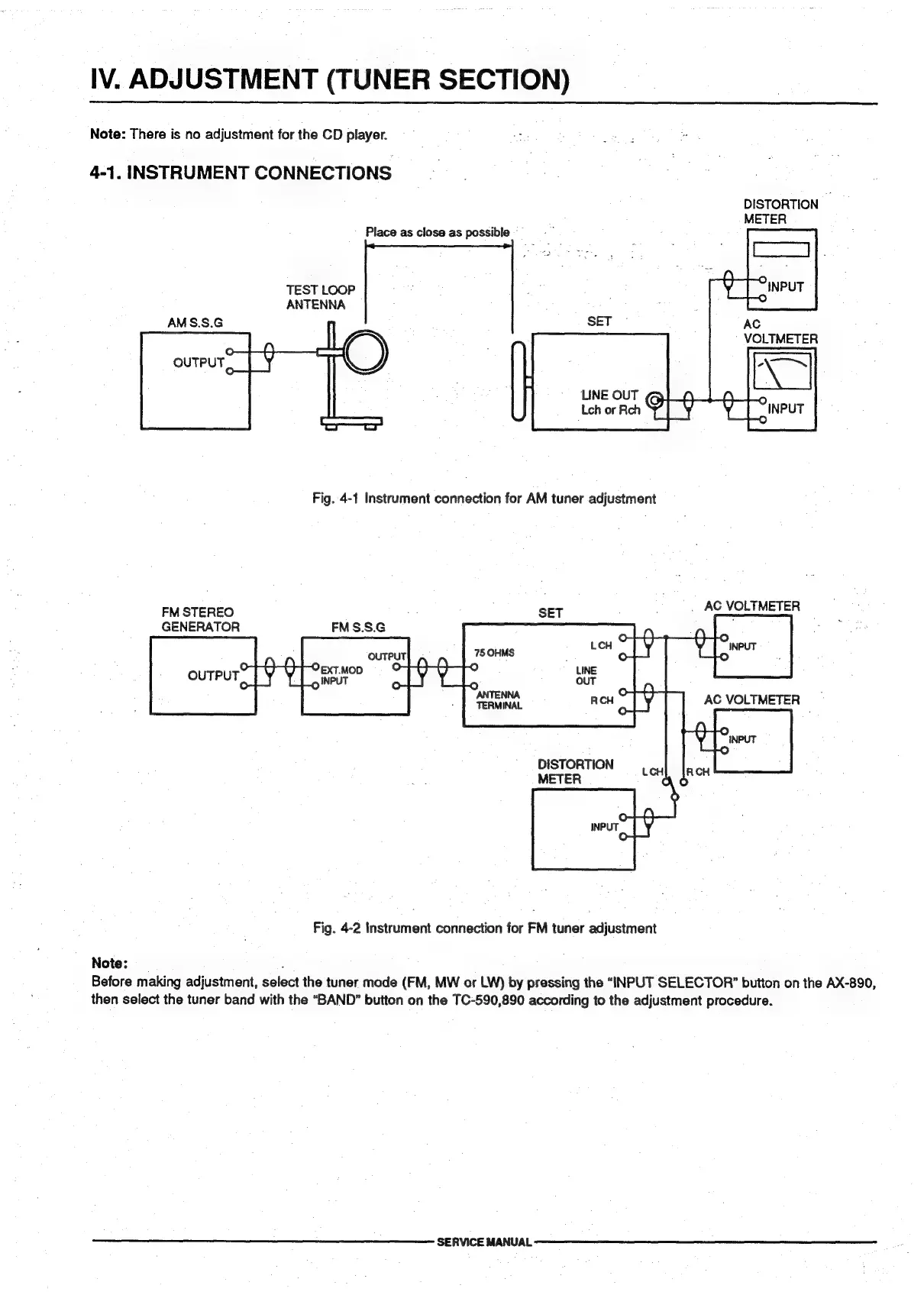

Fig.
4-1
Instrument
connection
for
AM
tuner
adjustment
FM
STEREO
SET
_
AC
VOLTMETER
GENERATOR
75
OHMS
pall
ire
ry
AC
VOLTMETER
Fig.
4-2
instrument
connection
for
FM
tuner
adjustment
Note:
:
Before
making
adjustment,
select
the
tuner
mode
(FM,
MW
or
LW)
by
pressing
the
“INPUT
SELECTOR?”
button
on
the
AX-890,
then
select
the
tuner
band
with
the
“BAND”
button
on
the
TC-590,890
according
to
the
adjustment
procedure.
SERVICE
MANUAL
