Akai AX80 Service Manual

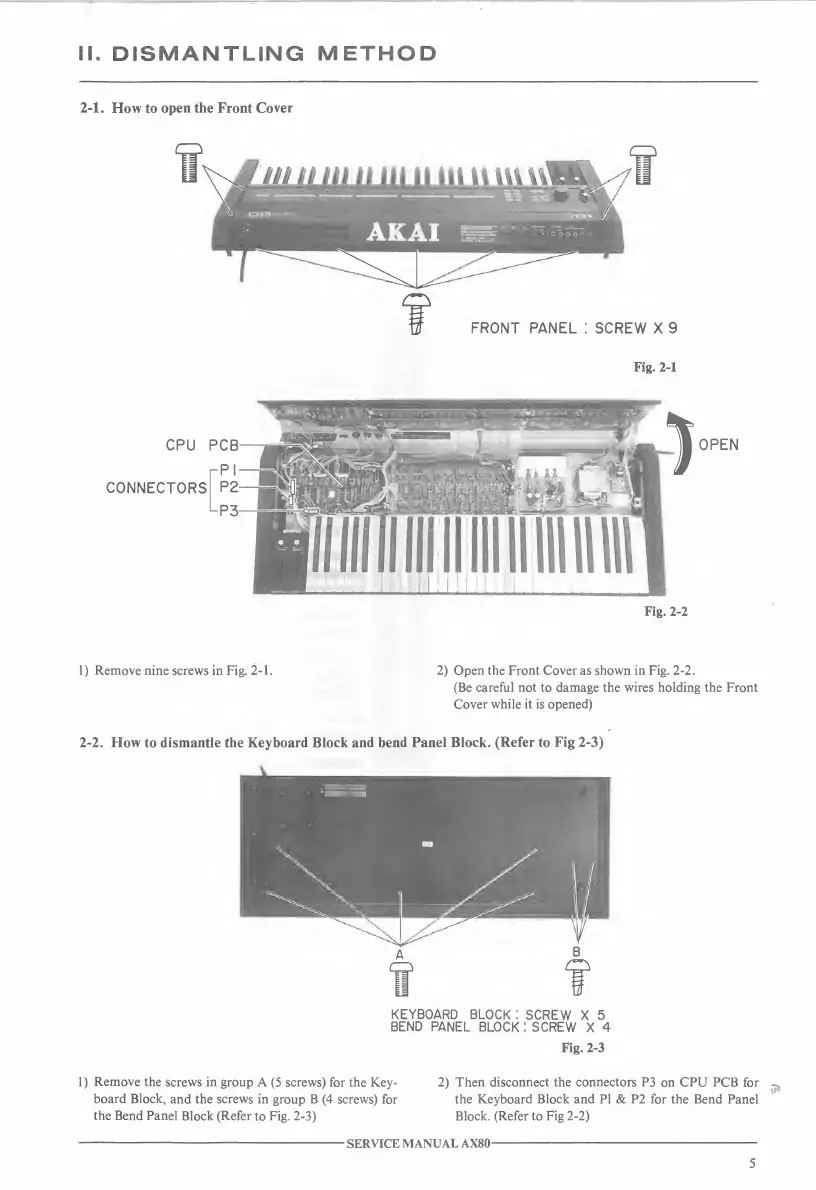

II.
DISMANTLING
METHOD
2-1.
How to
open the
Front
Cover
OPEN
Fig.
2-2
1
)
Remove nine
screws
in
Fig.
2-
1
.
2)
Open the Front Cover
as
shown in Fig.
2-2.
(Be
careful
not to damage
the
wires holding the Front
Cover while it is opened)
2-2.
How
to
dismantle
the
Keyboard Block and bend
Panel Block. (Refer to
Fig 2-3)
KEYBOARD
BLOCK
!
SCREW
X
5
BEND
PANEL
BLOCK
\
SCREW
X
4
Fig.
2-3
1
)
Remove the
screws
in group
A
(5
screws) for the
Key-
board
Block,
and the
screws in
group B
(4
screws) for
the
Bend Panel
Block (Refer
to
Fig. 2-3)
2)
Then disconnect the
connectors
P3
on
CPU
PCB for
the Keyboard Block and
PI
& P2 for the Bend Panel
Block. (Refer
to
Fig
2-2)
-
SERVICE
MANUAL AX80-
5
