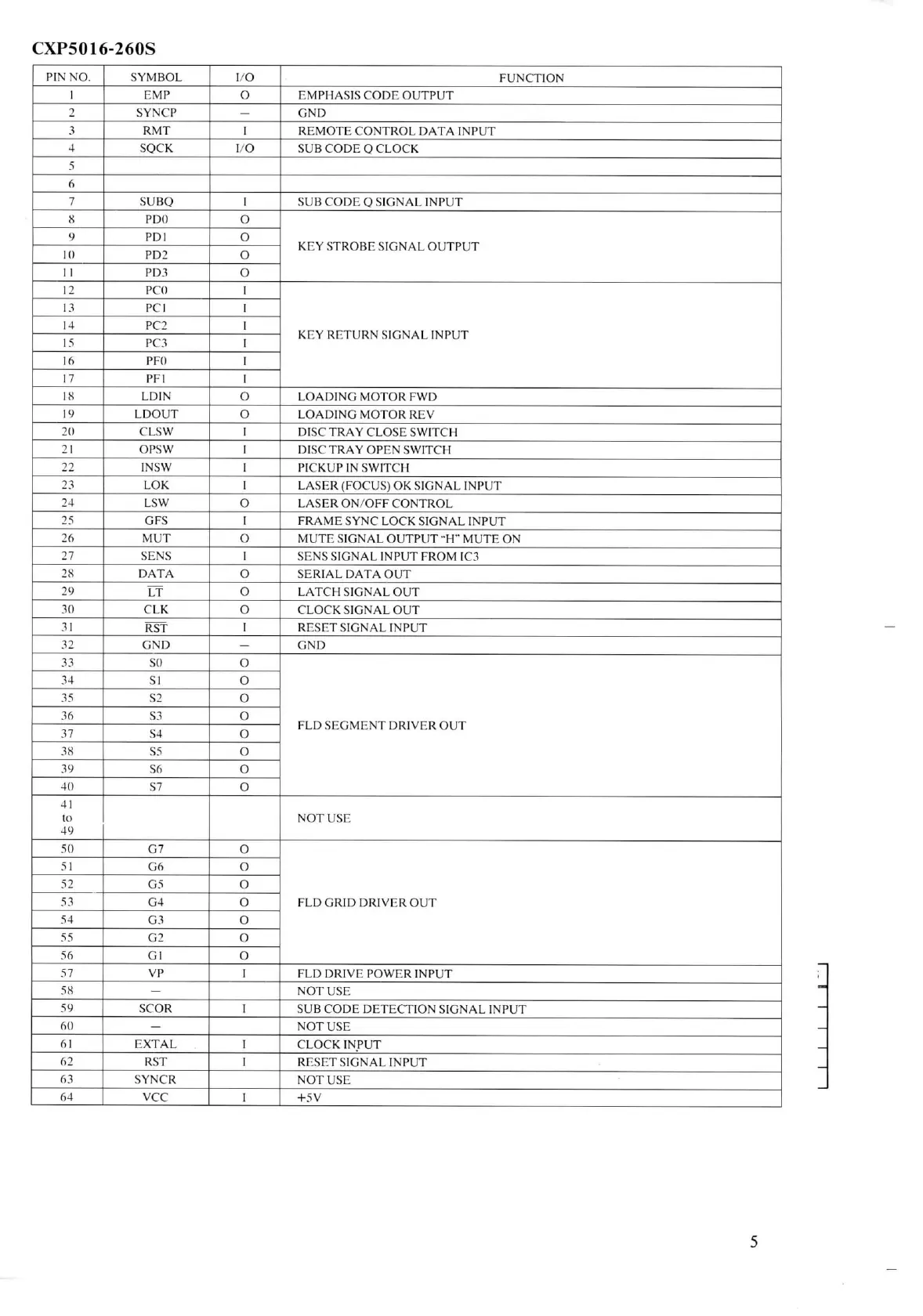

CXP5016-260S
PIN NO.
SYMBOL I/O
FUNCTION
1 EMP
O
EMPI lASIS CODE OUTPUT
2
SYNCP
-
GND
3
RMT
I REMOTE CONTROL DATA INPUT
4
SQCK
I/O SUB CODE 0 CLOCK
5
6
7
SUBQ I
SUB CODE 0 SIGNAL INPUT
8
PDO
O
KEY STROBE SIGNAL OUTPUT
9
PDl
O
KEY STROBE SIGNAL OUTPUT
10
PD2
O
KEY STROBE SIGNAL OUTPUT
1 1
PD3
O
KEY STROBE SIGNAL OUTPUT
12
PCO I
KEY RETURN SIGNAL INPUT
1.1 PCI
I
KEY RETURN SIGNAL INPUT
14
PC2 I
KEY RETURN SIGNAL INPUT
\5
PC 3
I
KEY RETURN SIGNAL INPUT
16 PFO I
KEY RETURN SIGNAL INPUT
17 PFl
I
KEY RETURN SIGNAL INPUT
18
LDIN
O LOADING MOTOR FWD
19
LDOUT
O
LOADING MOTOR
REV
20
CLSW I
DISC TRAY CLOSE SWITCH
21 OPSW
I DISC TRAY OPEN SWITCFI
22 INSW
I
PICKUP IN SWITCH
23
LOK I
LASER (FOCUS) OK SIGNAL INPUT
24 LSW
O
LASER ON/OFF CONTROL
2zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJIHGFEDCBA.'ï
GFS
I FRAME SYNC LOCK SIGNAL INPUT
26
MUT
O
MUTE SIGNAL OUTPUT "H" MUTE
ON
27
SENS
I SENS SIGNAL INPUT EROM IC3
28 DATA
O
SERIAL DATA OUT
29
Ï7f
O LATCH SIGNAL OUT
M) CLK
O CLOCK SIGNAL OUT
3\
RST
I
RESET SIGNAL INPUT
32
GND
-
GND
33 SO
O
FLD SEGMENT DRIVER OUT
34 SI
O
FLD SEGMENT DRIVER OUT
3.5 S2
O
FLD SEGMENT DRIVER OUT
36
S3
O
FLD SEGMENT DRIVER OUT
37 S4
O
FLD SEGMENT DRIVER OUT
38
S5
O
FLD SEGMENT DRIVER OUT
39
S6
O
FLD SEGMENT DRIVER OUT
40 S7
O
FLD SEGMENT DRIVER OUT
41
to
49
NOT USE
50
G7
O
FLD GRID DRIVER OUT
51
G6
O
FLD GRID DRIVER OUT
52
G5 O
FLD GRID DRIVER OUT
53
G4
O
FLD GRID DRIVER OUT
54
G3 O
FLD GRID DRIVER OUT
55
G2 O
FLD GRID DRIVER OUT
56
Gl O
FLD GRID DRIVER OUT
57
VP
I FLD DRIVE POWER INPUT
58
-
NOTUSE
59
SCOR I
SUB CODE DETECTION SIGNAL INPUT
60
NOTUSE
61 EXTAL
I CLOCKINPUT
62
RST I
RESET SIGNAL INPUT
63
SYNCR
NOTUSE
64
VCC
I
+5V
