Akai CS-F110

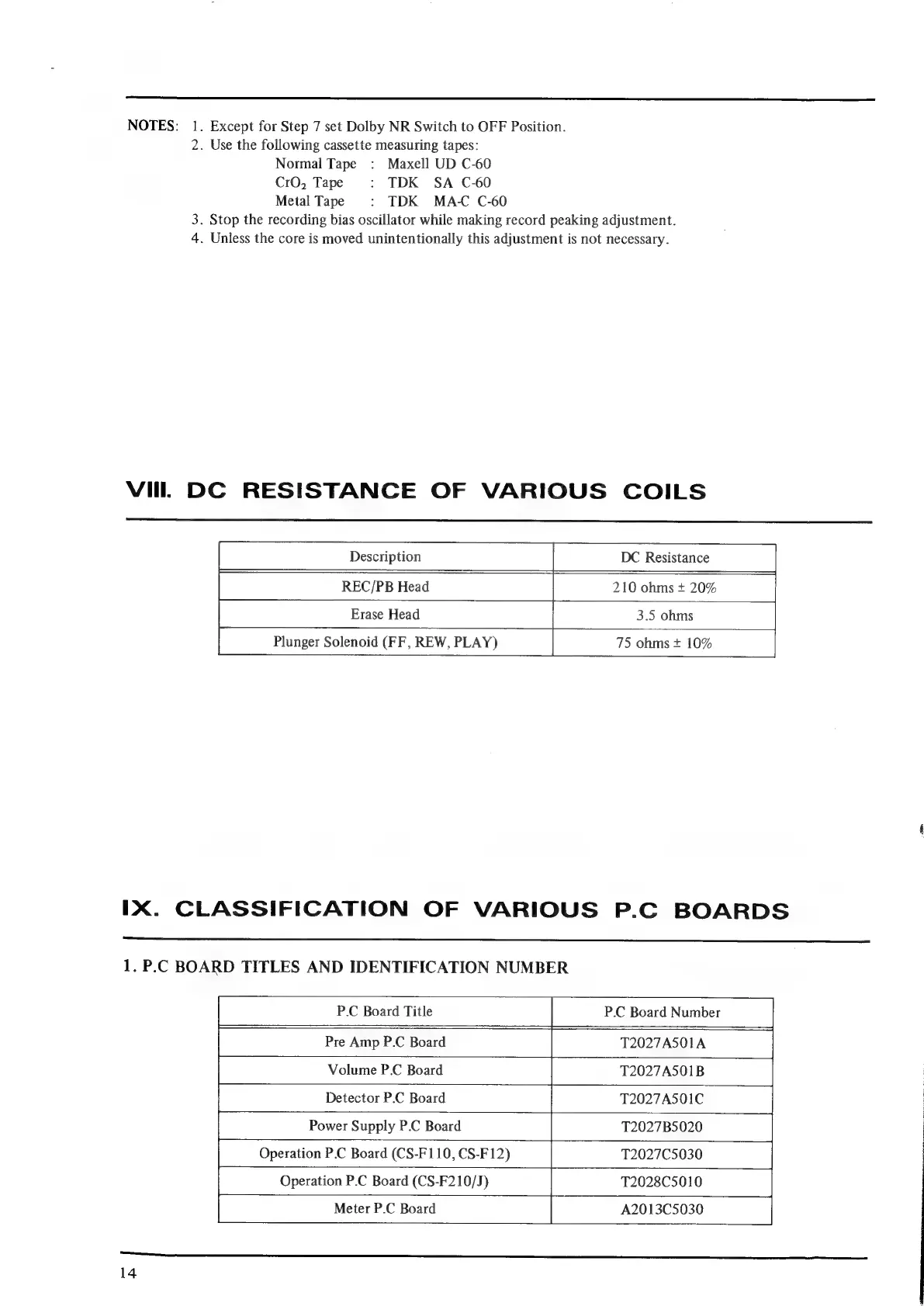

NOTES:
1. Except for Step 7 set Dolby NR Switch to OFF Position.
2. Use the following cassette measuring tapes:
Normal Tape : Maxell UD C-60
CrO, Tape : TDK SA C-60
Metal Tape : TDK MAC C-60
3. Stop the recording bias oscillator while making record peaking adjustment.
4. Unless the core is moved unintentionally this adjustment is not necessary.
Vil. DC RESISTANCE OF VARIOUS COILS
DC Resistance
REC/PB Head 210 ohms + 20%
Plunger Solenoid (FF, REW, PLAY) 75 ohms + 10%
Description
IX.
CLASSIFICATION
OF
VARIOUS
P.C
BOARDS
1. P.-C BOARD TITLES AND IDENTIFICATION NUMBER
PC Board Title P.C Board Number
Pre Amp P.C Board T2027A501A
Volume P.C Board T2027A501B
Detector P.C Board T2027A501C |
Power Supply P.C Board T2027B5020
Operation P.C Board (CS-F110, CS-F12) T2027C5030 |
Operation P.C Board (CS-F210/J) T2028C5010
Meter P.C Board A2013C5030 |
