Akai CS-F110

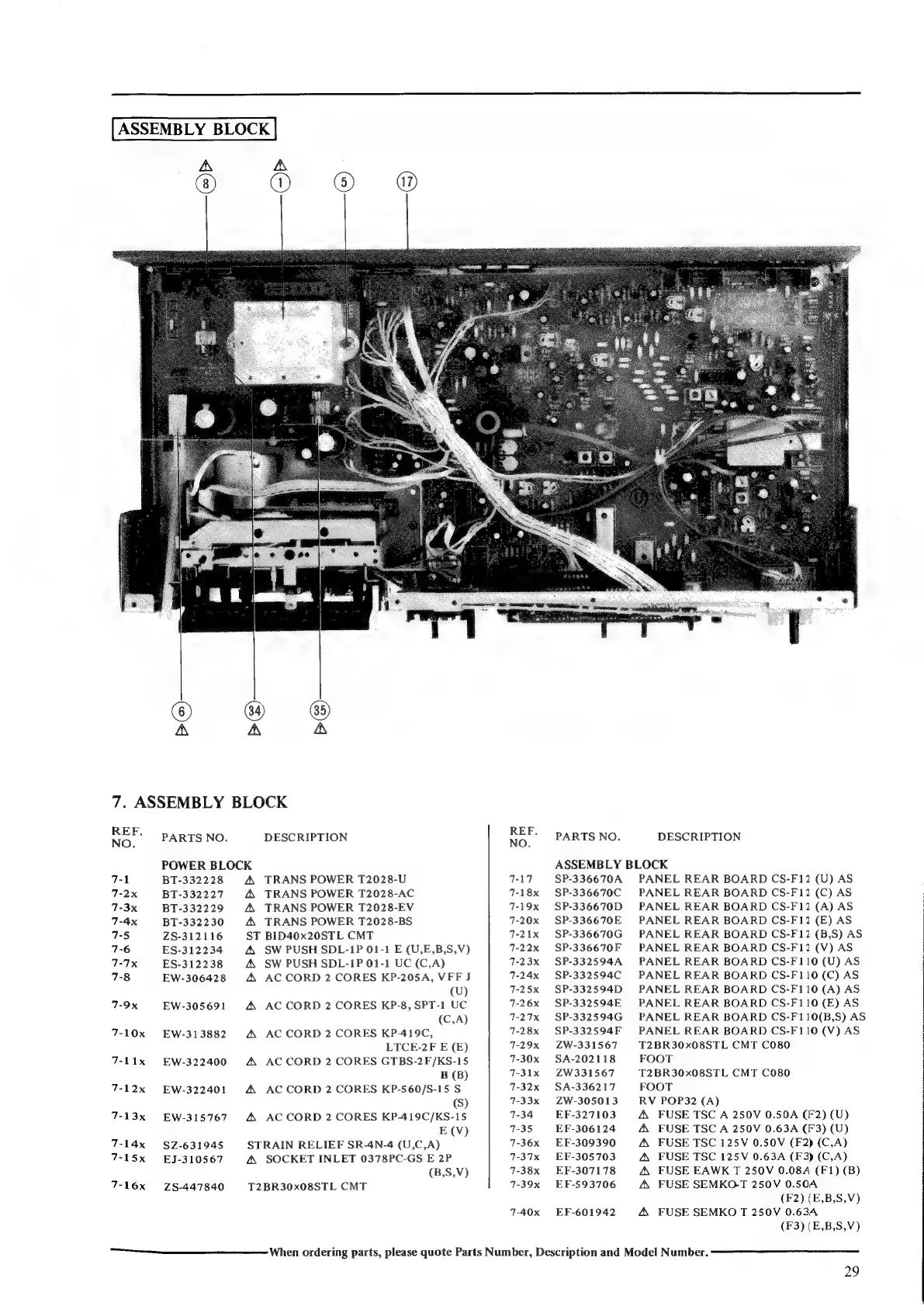

ASSEMBLY BLOCK
A A
>
QO &
A A
7. ASSEMBLY BLOCK
REF. REF.
(F2) (E,B,S,V)
FUSE SEMKO T 250V 0.63A
(F3) (E,B,S,V)
7-40x EF-601942
nn When ordering parts, please quote Parts Number, Description and Model Number.
29
NO. PARTS NO. DESCRIPTION NO. PARTS NO. DESCRIPTION
POWER BLOCK ASSEMBLY BLOCK
7-1 BT-332228 A TRANS POWER T2028-U 7-17 SP-336670A PANEL REAR BOARD CS-F12 (U) AS
7-2x BT-332227 4, TRANS POWER T2028-AC 7-18x SP-336670C PANEL REAR BOARD CS-F12 (C) AS
7-3x BT-332229 A. TRANS POWER T2028-EV 7-19x SP-336670D PANEL REAR BOARD CS-F12 (A) AS
7-4x BT-332230 A. TRANS POWER T2028-BS 7-20x SP-336670E PANEL REAR BOARD CS-F12 (E) AS
7-5 ZS-312116 ST BID40x20STL CMT 7-21x SP-336670G PANEL REAR BOARD CS-F12? (B,S) AS |
7-6 ES-312234 4A SW PUSH SDL-1P 01-1 E (U,E,B,S,V) 7-22x SP-336670F PANEL REAR BOARD CS-F12 (V) AS |
7-7x ES-312238 A. SW PUSH SDL-1P 01-1 UC (C,A) 7-23x SP-332594A PANEL REAR BOARD CS-F110 (U) AS |
7-8 EW-306428 A AC CORD 2 CORES KP-205A, VFF J 7-24x SP-332594C PANEL REAR BOARD CS-F110 (C) AS |
(U) 7-25x SP-332594D PANEL REAR BOARD CS-F1 10 (A) AS
7-9x EW-305691 A AC CORD 2 CORES KP-8, SPT-1 UC 7-26x SP-332594E PANEL REAR BOARD CS-F110 (E) AS
(C,A) 7-27x SP-332594G PANEL REAR BOARD CS-F110(B,S) AS
7-10x EW-313882 A AC CORD 2 CORES KP-419C, 7-28x SP-332594F PANEL REAR BOARD CS-F1L10 (V) AS |
LTCE-2F E (E) 7-29x ZW-331567 T2BR30x08STL CMT CO80
7-11x EW-322400 A AC CORD 2 CORES GTBS-2F/KS-15 7-30x SA-202118 FOOT
B (B) 7-31x ZW331567 T2BR30x08STL CMT C080
7-12x EW-322401 A ACCORD 2 CORES KP-560/S-15 S 7-32x SA-336217 FOOT
(S) 7-33x ZW-305013 RV POP32 (A)
7-13x EW-315767. A AC CORD 2 CORES KP-419C/KS-15 7-34 EF-327103 A FUSE TSC A 250V 0.50A (F2) (U)
E(V) 7-35 EF-306124 A FUSE TSC A 250V 0.63A (F3) (U)
7-14x §Z-631945 STRAIN RELIEF SR-4N-4 (U,C,A) 7-36x EF-309390 A FUSE TSC 125V 0.50V (F2) (C,A)
7-15x EJ-310567 A SOCKET INLET 0378PC-GS E 2P 7-37x EF-305703 A FUSE TSC 125V 0.63A (F3) (C,A)
(B,S,V) 7-38x EF-307178 A FUSE EAWK T 250V 0.084 (F1) (B)
7-16x ZS-447840 T2BR30x08STL CMT 7-39x EF-593706 A, FUSE SEMKO-T 250V 0.50A
A
