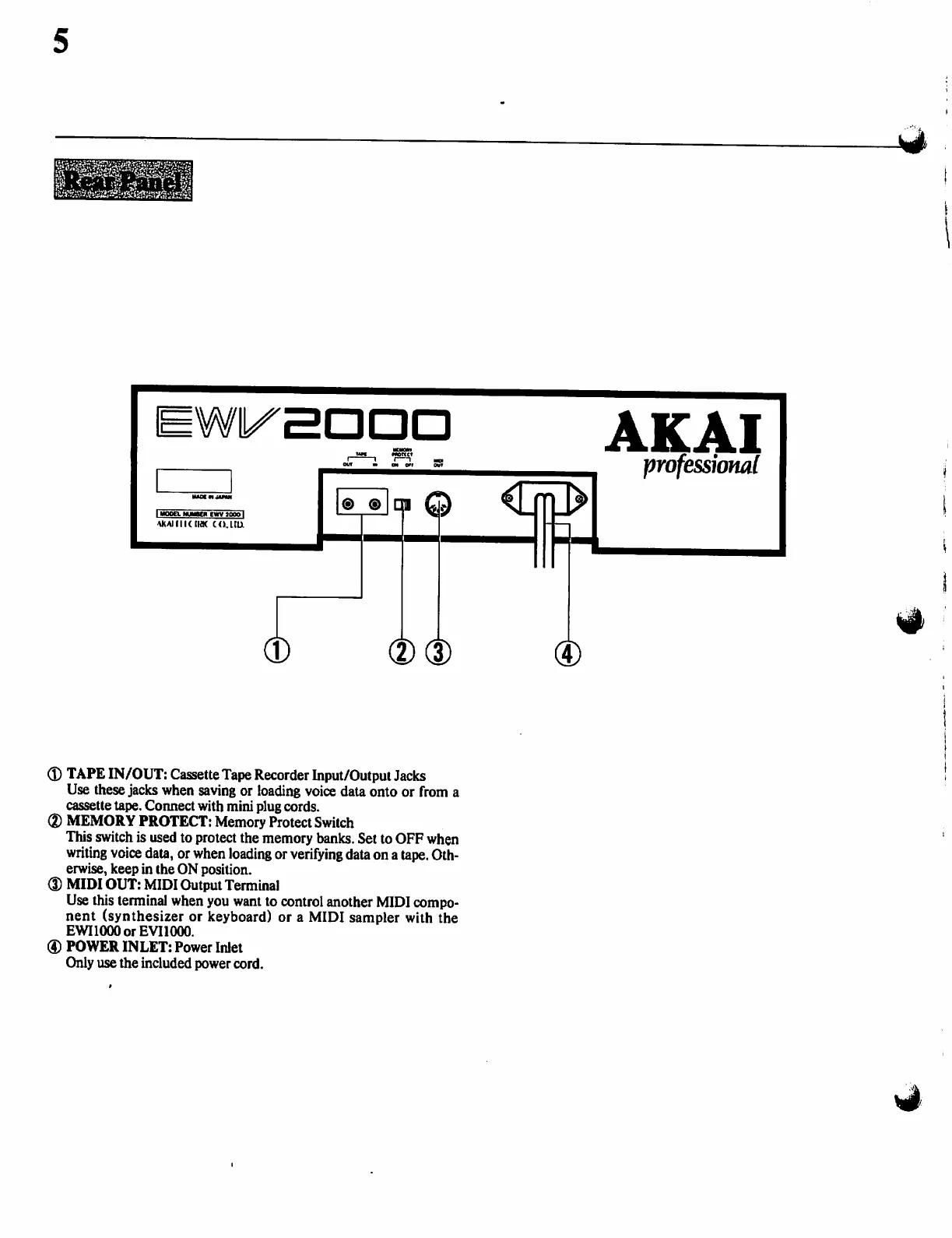

Akai EWI Series - Rear Panel Interface; Rear Panel Terminals and Switches

AKAI
professional
(D TAPE IN/OUT: Cassette Tape Recorder Input/Output Jacks
Use these jacks when saving or loading voice data onto or from a
cassette tape. Connect with mini plug cords.
(D MEMORY PROTECT: Memory Protect Switch
This switch is used to protect the memory banks. Set to OFF when
writing voice data, or when loading or verifying data on a tape. Oth
erwise, keep in the ON position.
(D MIDI OUT: MIDI Output Terminal
Use this terminal when you want to control another MIDI compo
nent (synthesizer or keyboard) or a MIDI sampler with the
EWIlOOOorEVIlOOO.
® POWER INLET: Power Inlet
Only use the included power cord.
