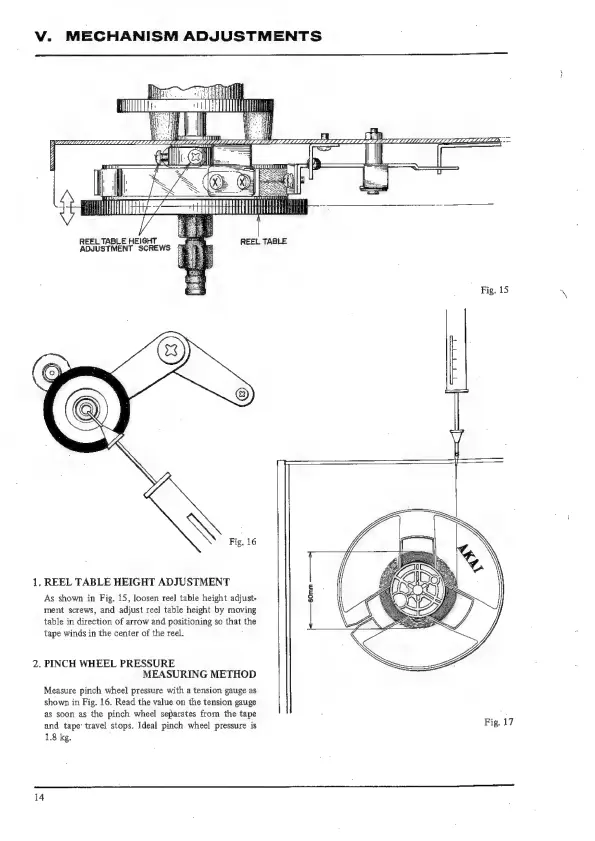

V.
MECHANISM
ADJUSTMENTS
Nie
HHL
om
a
Els
tit
/
REEL
TABLE
HEIGHT
REEL
TABLE
ADJUSTMENT
SCREWS
~
Fig,
15
1,
REEL
FABLE
HEIGHT
ADJUSTMENT
As
shown
in
Fig.
15,
loosen
reel
table
height
adjust-
ment
screws,
and
adjust
reel
table
height
by
moving
table
in
direction
of
arrow
and
positioning
so
that
ne
tape
winds
in
the
center
of
the
reel.
2,
PINCH
WHEEL
PRESSURE
MEASURING
METHOD
Measure
pinch
wheel
pressure
with
a
tension
gauge
as
shown
in
Fig.
16.
Read
the
value
on
the
tension
gauge
as
soon
as
the
pinch
wheel
separates
from
the
tape
_—
and
tape
travel
stops.
Ideal
pinch
wheel
pressure
is
Fig.
17
1.8
kg.
14
