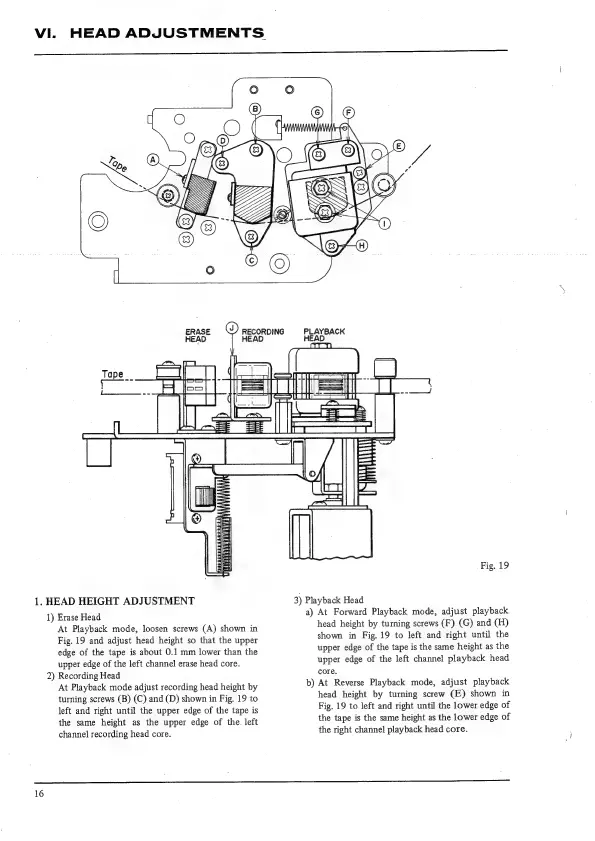

VI.
HEAD
ADJUSTMENTS
RECORDING
PLAYBACK
HEAD
HEAD
—s
ee
aE
=
|
Fig.
19
1.
HEAD
HEIGHT
ADJUSTMENT
3)
Playback
Head
1)
Erase
Head
a)
At
Forward
Playback
mode,
adjust
playback
head
height
by
turning
screws
(F)
(G)
and
(H)
shown
in
Fig.
19
to
left
and
right
until
the
upper
edge
of
the
tape
is
the
same
height
as
the
upper
edge
of
the
left
channel
playback
head
At
Playback
mode,
loosen
screws
(A)
shown
in
Fig.
19
and
adjust
head
height
so
that
the
upper
edge
of
the
tape
is
about
0.1
mm
lower
than
the
upper
edge
of
the
left
channel
erase
head
core.
2)
Recording
Head
core.
At
Playback
mode
adjust
recording
head
height
by
b)
At
Reverse
Playback
mode,
adjust
playback
turning
screws
(B)
(C)
and
(D)
shown
in
Fig.
19
to
head
height
by
turning
screw
(E)
shown
in
Fig.
19
to
left
and
right
until
the
lower
edge
of
the
tape
is
the
same
height
as
the
lower
edge
of
the
right
channel
playback
head
core.
left
and
right
until
the
upper
edge
of
the
tape
is
the
same
height
as
the
upper
edge
of
the.
left
channel
recording
head
core.
16
