3.
BRAKE
TENSION
ADJUSTMENT
1)
As
shown
in
Fig.
17,
use
a
60
mm
diameter
tape
wound
on
a
5”
reel
and
measure
the
brake
tension
with
a
tension
gauge.
Ideal
brake
tension
is
from
300
to
370
grams.
2)
Brake
tension
adjustment
can
be
made
as
follows:
(Refer
to
Fig.
18)
a)
Change
position
of
suspended
spring
(a).
b)
Loosen
screws
(b)
and
(c)
and
adjust
the
vertical
position
of
spring
suspension
metal
(d).
c)
Loosen
screws
(e)
and
(f)
and
adjust
the
horizontal
position
of
brake
band
suspension
metal
(g).
d)
Only
the
left
side
is
shown
in
Fig.
18,
but
the
right
side
must
be
adjusted
in
the
same
way.
NOTE:
In
making
brake
tension
adjustment,
at
all
modes
except
stop
mode,
confirm
that
the
brake
band
completely
separates
from
the
cloth
tape
on
the
brake
drum.
(Refer
to
Fig.
18)

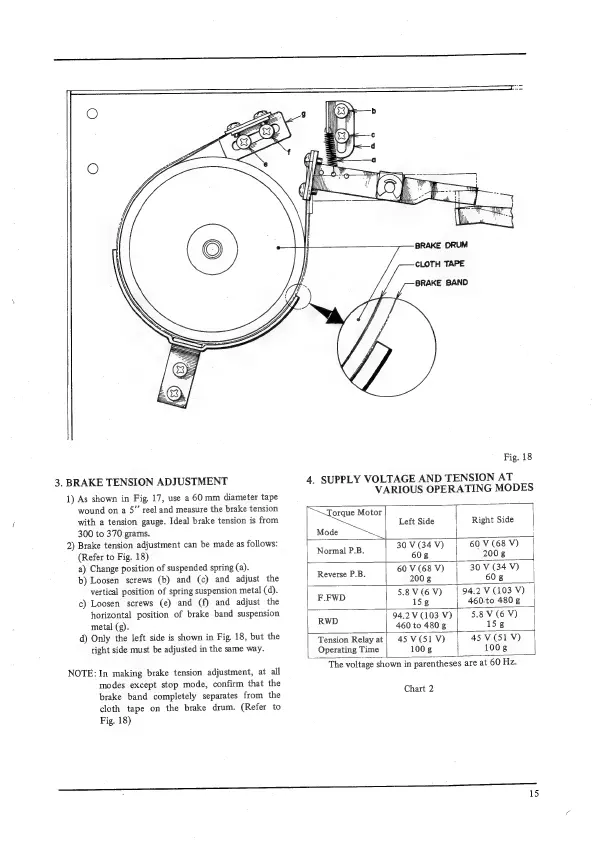

Fig.
18
4.
SUPPLY
VOLTAGE
AND
TENSION
AT
VARIOUS
OPERATING
MODES
orque
Motor
|
Left
Side
Right
Side
Mode
30
V
(34
V)
60
V
(68
V)
|
Normal
P.B.
608
200
g
60
V
(68
V)
30
V
(34
V)
Reverse
P.B.
200
g
60g
5.8V(6V)
|
94.2
V
(103
Vv)
roe
Sg
460.to
480
g
94.2
V
(103
V)
5.8V(6V)
ROP
460
to
480
g
15¢g
Tension
Relay
at)
45
V(51
V)
45V
(51
V)
Operating
Time
100g
100g
The
voltage
shown
in
parentheses
are
at
60
Hz.
Chart
2
15
