Akai GX-221D

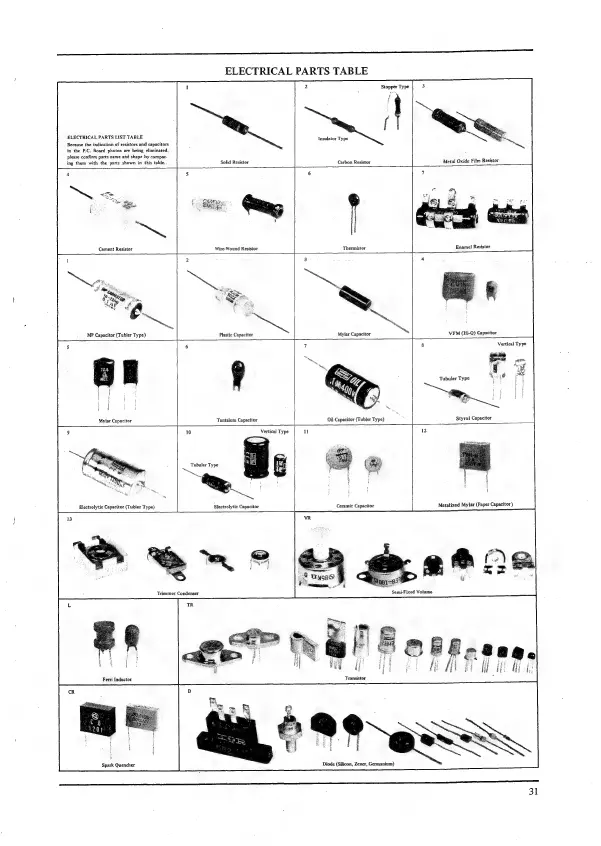

ELECTRICAL PARTS LIST TABLE
Because the indication of resistors and capacitors
in the P.C, Board photos are being eliminated,
ELECTRICAL PARTS TABLE
Stopper Type
f
}
f
Insulator Type
Metal Oxide Film Resistor
please confirm parts name and shape by compar-
ing them with the parts shown in this table.. Solid Resistor Carbon Resistor
4 5 6 7
:
Cement Resistor Wire-Wound Resistor Thermistor Enamel Resistor
1 2 3 4
s ee
MP Capacitor (Tubler Type) Plastic Capacitor Mylar Capacitor al VEM (Hi-Q) Capacitor
6
7
8
Vertical
Type
Mylar Capacitor
Tantalum Capacitor
Vertical Type
Tubuler Type
Electrolytic Capacitor
Trimmer Condenser
i
i
Feri inductor
Spark Quencher
Oil Capacitor (Tubler Type)
Metalized Mylar (Paper Capacitor )
Ceramic Capacitor
Semi-Fixed Volume
Transistor
Diode (Silicon, Zener, Germanium)
