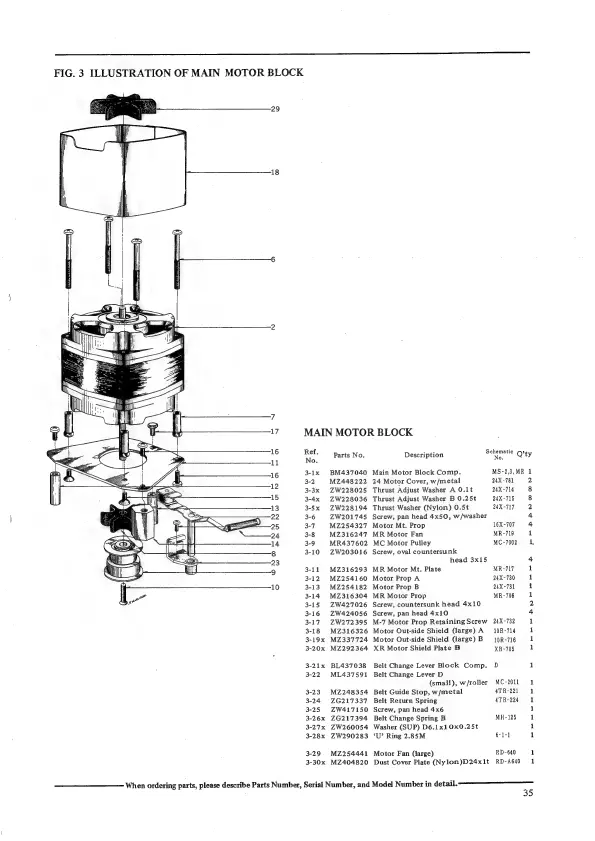

FIG. 3 ILLUSTRATION OF MAIN MOTOR BLOCK
i. yu
HH 4
<a cH
Tn
vil
MAIN MOTOR BLOCK
oo Parts No. Description Pea Q’ty
3-1x BM437040 Main Motor Block Comp. MS-2,3,MR 1
3-2 MZ448222 24 Motor Cover, w/metal 24X-781
3-3x ZW228025 Thrust Adjust Washer A 0.1t 24X-714 8
3-4x ZW228036 Thrust Adjust Washer B 0.25t 24X-715 8
3-5x ZW228194 Thrust Washer (Nylon) 0.St 24X-717 2
3-6 ZW201745 Screw, pan head 4x50, w/washer 4
3-7 MZ254327 Motor Mt. Prop 16X-707 4
3-8 MZ316247 MR Motor Fan MR-719 1
3-9 MR437602 MC Motor Pulley MC-7002 1
3-10 ZW203016 Screw, oval countersunk
head 3x15 4
3-11 MZ316293 MR Motor Mt. Plate MR-717 1
3-12 MZ254160 Motor Prop A 24X-730 1
3-13. MZ254182 Motor Prop B 24X-731 1
3-14 MZ316304 MR Motor Prop MR-706 1
3-15 ZW427026 Screw, countersunk head 4x10 2
3-16 ZW424056 Screw, pan head 4x10 4
3-17 ZW272395 M-7 Motor Prop Retaining Screw 24X-732 1
3-18 MZ316326 Motor Out-side Shield (large) A 10R-714 1
3-19x MZ337724 Motor Out-side Shield (large) B = 10R-716 1
3-20x MZ292364 XR Motor Shield Plate B XR-705 1
3-21x BL437038 Belt Change Lever Block Comp. D 1
3-22, ML437591 Belt Change Lever D
(small), w/roller MC-2011 1
3-23 MZ248354 Belt Guide Stop, w/metal 4TR-221
3-24 7ZG217337 Belt Return Spring 4TR-224 1
3-25 ZW417150 Screw, pan head 4x6 1
3-26x ZG217394 Belt Change Spring B MH-125 1
3-27x ZW260054 Washer (SUP) D6.1x10x0.25t 1
3-28x ZW290283 ‘U’ Ring 2.85M 6-1-1 1
3-29 MZ254441 Motor Fan (large) RD-640 1
3-30x MZ404820 Dust Cover Plate (Nylon)D24x1t RD-A640 1
When ordering parts, please describe Parts Number, Serial Number, and Model Number in detail.
