Akai GX-221D User Manual

ee

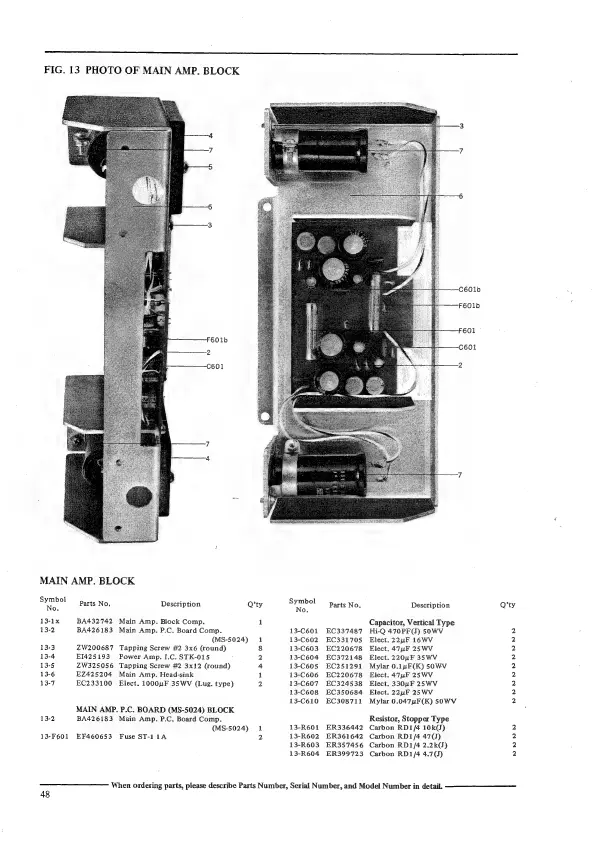

FIG. 13 PHOTO OF MAIN AMP. BLOCK
3
7
6
Cé60ib
F601b
F601
C601
2
7
MAIN AMP. BLOCK
et Parts No, Description Q’ty as Parts No. Description Q’ty
13-1x BA432742 Main Amp. Block Comp. 1 Capacitor, Vertical Type
13-2 BA426183 Main Amp. P.C. Board Comp. 13-C601 EC337487 Hi-Q 470PF(J) SOWV 2
(MS-5024) 1 13-C602 EC331705 Elect. 22uF 16WV 2
13-3 ZW200687 Tapping Screw #2 3x6 (round) 8 13-C603 EC220678 Elect. 47uF 25WV 2
13-4 E1425193 Power Amp. I.C. STK-015 2 13-C604 EC372148 Elect. 220uF 35WV 2
13-5 ZW325056 Tapping Screw #2 3x12 (round) 4 13-C605 EC251291 Mylar 0.inF(K) 50WV 2
13-6 EZ425204 Main Amp. Head-sink 1 13-C606 EC220678 Elect. 47uF 25WV 2
13-7 EC233100 Elect. 1000uF 35 WV (Lug. type) 2 13-C607 EC324538 Elect, 330uF 25WV 2
13-C608 EC350684 Elect. 22uF 25WV 2
13-C610 EC308711 Mylar 0.047uF(K) SOWV 2
MAIN AMP. P.C. BOARD (MS-5024) BLOCK
13-2 BA426183 Main Amp. P.C. Board Comp. Resistor, Stopper Type
(MS-5024) 1 13-R601 ER336442 Carbon RD1/4 10k(J) 2
13-F601 EF460653 Fuse ST-11A 2 13-R602 ER361642 Carbon RD1/4 47(3) 2
13-R603 ER357456 Carbon RD1/4 2.2k(J) 2
13-R604 ER399723 Carbon RD1/4 4.7(J) 2
When ordering parts, please describe Parts Number, Serial Number, and Model Number in detail.
48
