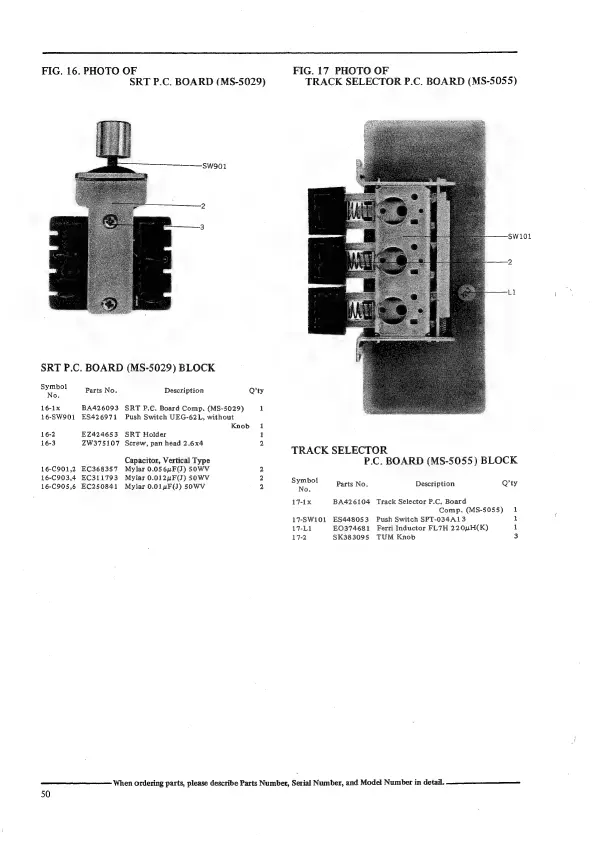

FIG. 16. PHOTO OF FIG. 17 PHOTO OF
SRT P.C. BOARD (MS-5029) TRACK SELECTOR P.C. BOARD (MS-5055)
SW101
2
oe Lt
SRT P.C. BOARD (MS-5029) BLOCK |
en bol Parts No. Description Q’ty
16-1x BA426093 SRT P.C. Board Comp. (MS-5029) 1
16-SW901 ES426971 Push Switch UEG-62L, without
Knob 1
16-2 EZ424653 SRT Holder 1
16-3 ZW375107 Screw, pan head 2.6x4
TRACK SELECTOR
Capacitor, Vertical Type P.C. BOARD (MS-5055) BLOCK
16-C901,2 EC368357 Mylar 0.056uF(J) SOWV 2
16-C903,4 EC311793 Mylar 0.012uF(J) SOWV 2 Symbot! oe /
16-C905,6 EC250841 Mylar 0.01yF(J) SOWV 2 No. Parte No: Peneayon ay
17-1x BA426104 Track Selector P.C. Board
Comp. (MS-5055) 1
17-SW101 ES448053 Push Switch SPT-034A13 1
17-L1 £0374681 Ferri Inductor FL7H 220HH(K) 1
17-2 SK383095 TUM Knob 3
When ordering parts, please describe Parts Number, Serial Number, and Model Number in detail. ——_—___—_-_—
50
