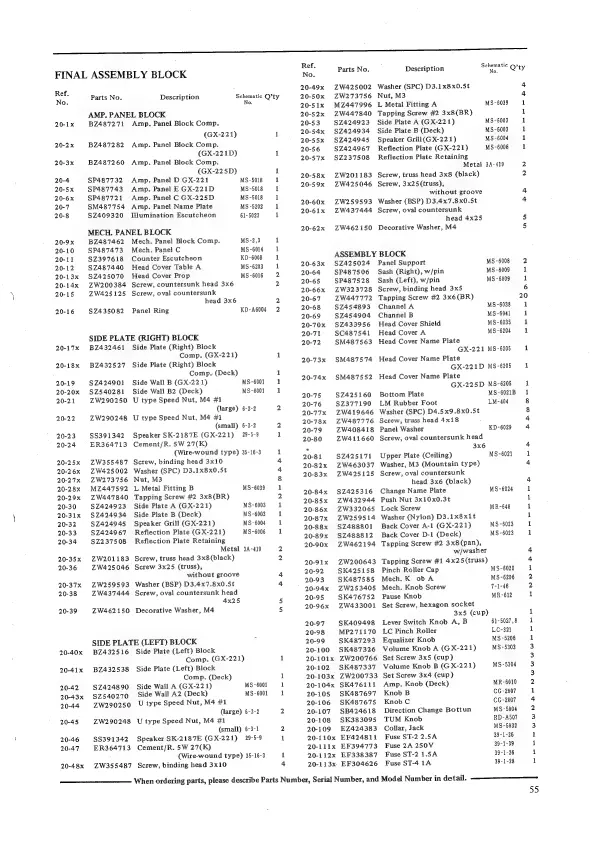

FINAL ASSEMBLY BLOCK
a eet
Nese
NN
eee re NF OP AHR =
LS)
oe Parts No. Description Shenae Q’ty
AMP. PANEL BLOCK
20-1x BZ487271 Amp. Panel Block Comp.
(GX-221)
20-2x BZ487282 Amp. Panel Block Comp.
(GX-221D)
20-3x BZ487260 Amp. Panel Block Comp.
(GX-225D)
20-4 SP487732 Amp. Panel D GX-221 MS-5018
20-5x SP487743 Amp. Panel E GX-221D MS-5018
20-6x SP487721 Amp. Panel C GX-225D MS-5018
20-7 SM487754 Amp. Panel Name Plate MS-5202
20-8 $Z409320 IHlumination Escutcheon 61-5023
MECH. PANEL BLOCK
20-9x BZ487462 Mech. Panel Block Comp. MS-2,3
20-10 SP487473 Mech. Panel C MS-6014
20-11 $Z397618 Counter Escutcheon KD-6008
20-12 SZ487440 Head Cover Table A MS-6203
20-13x $Z425070 Head Cover Prop MS~6016
20-14x ZW200384 Screw, countersunk head 3x6
20-15 ZW425125 Screw, oval countersunk
head 3x6
20-16 $Z435082 Panel Ring KD-A6004
SIDE PLATE (RIGHT) BLOCK
20-17x BZ432461 Side Plate (Right) Block
Comp. (GX-221)
20-18x BZ432527 Side Plate (Right) Block
Comp.. (Deck)
20-19 $Z424901 Side Wall B (GX-221) MS-6001
20-20x $Z540281 Side Wall B2 (Deck) MS-6001
20-21 ZW290250 U type Speed Nut, M4 #1
(large) §-3-2
20-22 ZW290248 U type Speed Nut, M4 #1
(small) 6-3-2
20-23 SS391342 Speaker SK-2187E (GX-221) 29-5-9
20-24 ER364713 Cement/R. 5W 27(K)
(Wire-wound type) 35-16-3
20-25x ZW355487 Screw, binding head 3x10
20-26x ZW425002 Washer (SPC) D3.1x8x0.5t
20-27x ZW273756 Nut, M3
20-28x MZ447592 L Metal Fitting B MS-6039
20-29x ZW447840 Tapping Screw #2 3x8(BR)
20-30 SZ424923 Side Plate A (GX-221) MS-6003
20-31x §Z424934 Side Plate B (Deck) MS-6003
20-32 $Z424945 Speaker Grill (GX-221) MS-6004
20-33 SZ424967 Reflection Plate (GX-221) MS-6006
20-34 $Z237508 Reflection Plate Retaining
Metal 3A-419
20-35x ZW201183 Screw, truss head 3x8(black)
20-36 ZW425046 Screw 3x25 (truss),
without groove
20-37x ZW259593 Washer (BSP) D3.4x7.8x0.5t
20-38 ZW437444 Screw, oval countersunk head
4x25
20-39 ZW462150 Decorative Washer, M4
SIDE PLATE (LEFT) BLOCK 7
20-40x BZ432516 Side Plate (Left) Block
Comp. (GX-221)
20-41x BZ432538 Side Plate (Left) Block
Comp. (Deck)
20-42 $Z424890 Side Wall A (GX-221) MS-6001
20-43x $Z540270 Side Wall A2 (Deck) MS-6001
20-44 ZWw290250 U type Speed Nut, M4 #1
(large) 6-3-2
20-45 ZW290248 U type Speed Nut, M4 #1
(small) 6-3-1
20-46 S$S391342 Speaker SK-2187E (GX-221) 29-5-9
20-47 ER364713 Cement/R. 5W 27(K)
: (Wire-wound type) 35-16-3
20-48x ZW355487 Screw, binding head 3x10
Ref.
No.
20-49x
20-50x
20-51x
20-52x
20-53
20-54x
20-55x
20-56
20-57x
20-58x
20-59x
20-60x
20-61x
20-62x
20-63x
20-64
20-65
20-66x
20-67
20-68
20-69
20-70x
20-71
20-72
20-73x
20-74x
20-75
20-76
20-77X
20-78x
20-79
20-80
20-81
20-82x
20-83x
20-84x
20-85x
20-86x
20-8 7x
20-88x
20-89x
20-90x
20-91x
20-92
20-93
20-94x
20-95
20-96x
20-97
20-98
20-99
20-100
20-101x
20-102
20-103x
20-104x
20-105
20-106
20-107
20-108
20-109
20-110x
20-111x
20-112x
20-113x-
Parts No. Description
ZW425002 Washer (SPC) D3.1x8x0.5t
ZW273756 Nut, M3
MZ447996 L Metal Fitting A MS-6039
ZW447840 Tapping Screw #2 3x8(BR)
S$Z424923 Side Plate A (GX-221) MS-6003
$Z424934 Side Plate B (Deck) MS-6003
SZ424945 Speaker Grill(GX-221) MS~-6004
SZ424967 Reflection Plate (GX-221) MS-6006
$Z237508 Reflection Plate Retaining
Metal 3A-419
ZW201183 Screw, truss head 3x8 (black)
ZW425046 Screw, 3x25(truss),
without groove
ZW259593 Washer (BSP) D3.4x7.8x0.5t
ZW437444 Screw, oval countersunk
head 4x25
ZW462150 Decorative Washer, M4
ASSEMBLY BLOCK
$Z425024 Panel Support MS -6008
SP487506 Sash (Right), w/pin MS-6009
SP487528 Sash (Left), w/pin MS-6009
ZW323728 Screw, binding head 3x5
ZW447772 Tapping Screw #2 3x6(BR)
SZ454893 Channel A MS -6038
$Z454904 Channel B MS-6041
SZ433956 Head Cover Shield MS~6035
SC487541 Head Cover A MS -6204
SM487563 Head Cover Name Plate
GX-221 MS~6205
SM487574 Head Cover Name Plate
GX-221D MS~-6205
SM487552 Head Cover Name Plate
GX-225D MS-6205
$Z425160 Bottom Plate MS-6021B
SZ377190 LM Rubber Foot LM-404
ZW419646 Washer (SPC) D4.5x9.8x0.5t
ZW487776 Screw, truss head 4x18
ZW408418 Panel Washer KD-6029
ZW411660 Screw, oval countersunk head
3x6
SZ425171 Upper Plate (Ceiling) MS~6021
ZW463037 Washer, M3 (Mountain type)
ZW425125 Screw, oval countersunk
head 3x6 (black)
SZ425316 Change Name Plate MS-6024
ZW432944 Push Nut 3x10x0.3t
ZW332065 Lock Screw MR-648
ZW259514 Washer (Nylon) D3.1x8x1t
SZ488801 Back Cover A-1 (GX-221) MS ~6023
SZ488812 Back Cover D-1 (Deck) MS-6023
7W462194 Tapping Screw #2 3x8(pan),
w/washer
ZW200643 Tapping Screw #1 4x25(truss)
SK425158 Pinch Roller Cap MS~6020
SK487585 Mech. K obA MS -6206
ZW253405 Mech. Knob Screw 7-1-46
SK476752 Pause Knob MR-612
ZW433001 Set Screw, hexagon socket
3x5 (cup)
SK409498 Lever Switch Knob A, B 61-5027,8
MP271170 LC Pinch Roller LC-321
SK487293 Equalizer Knob MS-5206
SK487326 Volume Knob A (GX-221) MS-5303
ZW200766 Set Screw 3x5 (cup)
$K487337 Volume Knob B (GX-221) MS~-5304
ZW200733 Set Screw 3x4 (cup)
SK476111 Amp. Knob (Deck) MR-6010
SK487697 Knob B CG-2007
SK487675 KnobC CG-2007
SB424618 Direction Change Bottun MS-5004
SK383095 TUM Knob RD-A507
EZ424383 Collar, Jack MS-5032
EF424811 Fuse ST-2 2.5A 39-1-26
EF394773 Fuse 2A 250V 39-1-39
EF338387 Fuse ST-2 1.5A 39-1-26
EF304626 Fuse ST-4 1A 39-1-28
aeons Q’ty
See eee P HP
N
eee RP ODF EN
he Sb bhAWAOr eS
eee eee
YyNnNeE DHA
Eee BP WWNPENWWWWR HE
When
ordering
parts,
please
describe
Parts
Number,
Serial
Number,
and
Model
Number
in
detail.
—————-——-—>
55
