Akai GX-230 Service Manual

I
SOmm-
BRAKE
BAND SUSPENSION
METAL
BRAKE
BAND .
2.

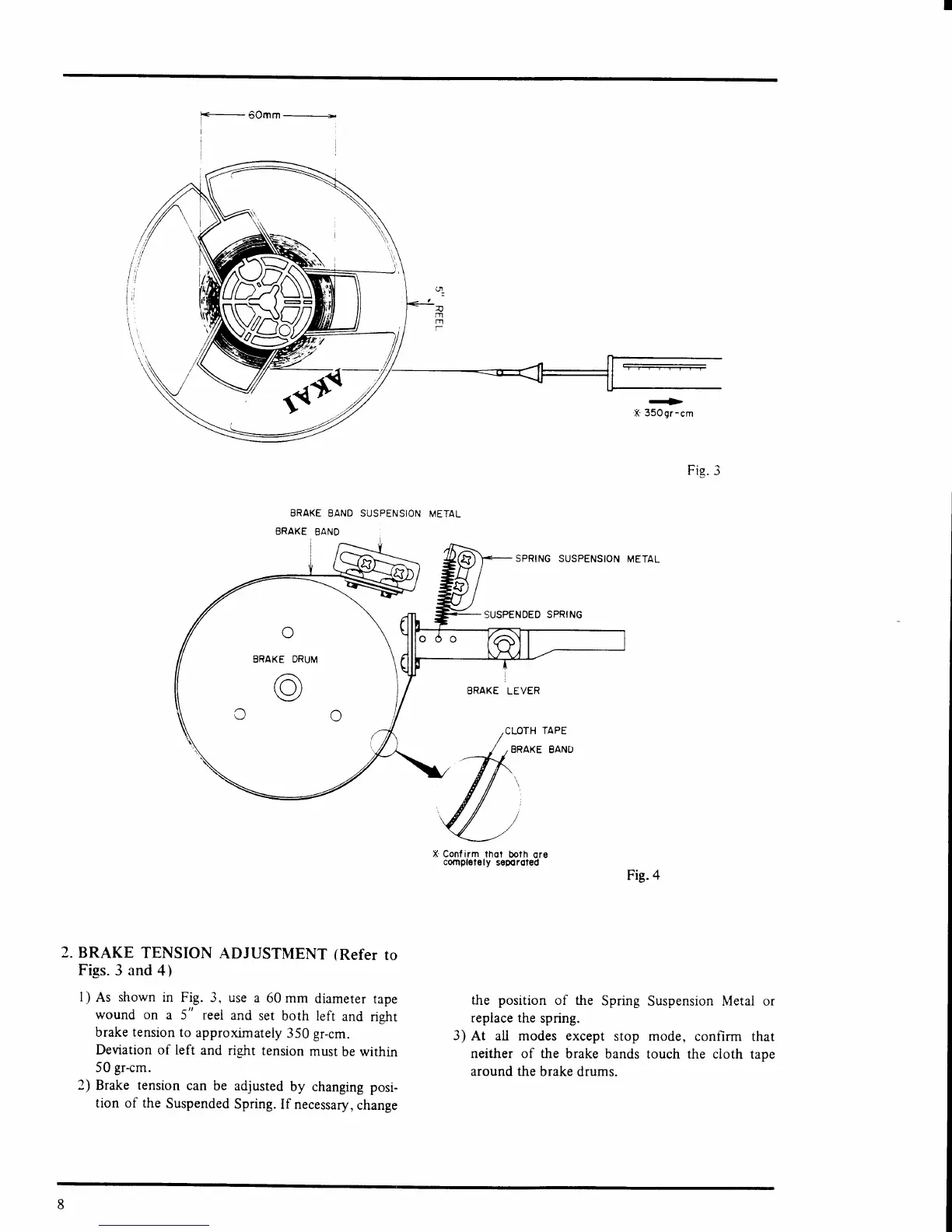

BRAKE
TENSION
ADJUSTMENT
(Refer
to
Figs.
3 and
4)
l)
As
shown
in
Fig. 3, use
a
60mm
diameter
tape
wound on
a 5" reel
and
set
both
left
and
right
brake tension
to
approximately
350 gr-cm.
Deviation of
left
and right
tension
must
be within
50
gr-cm.
2)
Brake
tension
can
be adjusted
by changing posi-
tion
of
the
Suspended
Spring.
If necessary,
change
Fig.3
METAL
X Confirm thot
boih ore
coírpl€loly
soporoted
Fig.4
the position
of the
Spring
Suspension Metal or
replace the
spring.
3)
At all modes except
stop mode, confirm
that
neither of
the brake
bands touch the cloth
tape
around the
brake drums.
ERAKE DRUM
A
v
