Akai GX-230 Service Manual

t
X'O.l
to O.3nm
Fig.
7
l=__1_IAPE
GUTDE
,
'i--'i
t
TENSION ARM
A&JUSTMENT
lfl':,i:
lT'a
slightly
\

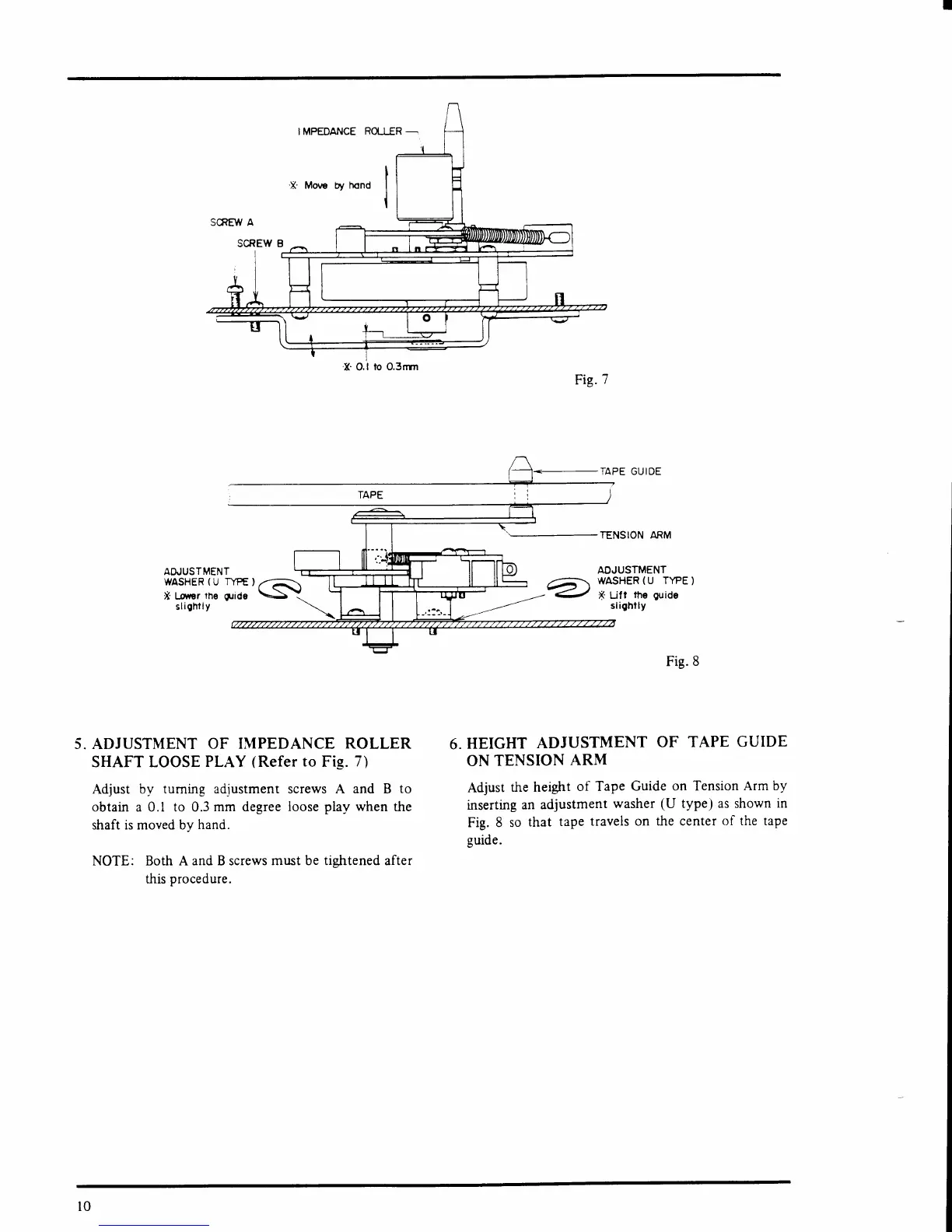

5. ADJUSTMENT
OF IMPEDANCE ROLLER
SHAFT LOOSE
PLAY
(Refer
to
Fig.
7)
Adjust
by
tuming adjustment screws A and B
to
obtain a 0.1 to 0.3
mm degree loose
play
when the
shaft is moved bv
hand.
NOTE: Both A and B screws
must be tiehtened after
this
procedure.
6.
HEIGHT
ADJUSTMENT
OF TAPE
GUIDE
ON
TENSION
ARM
Adjust
the height
of Tape
Guide
on Tension
Arm by
inserting
an
adjustment
washer
(U
type)
as shown
in
Fig.
8 so
that
tape
travels on
the center
of the tape
euide.
ADJUSTMENT
WASHER(U
TYPE)
X'L¡ff
fh€
gu¡do
slighl ly
Fig.
8
l0

Akai GX-230 Specifications

General

Brand	Akai
Model	GX-230
Category	Tape Deck
Language	English
