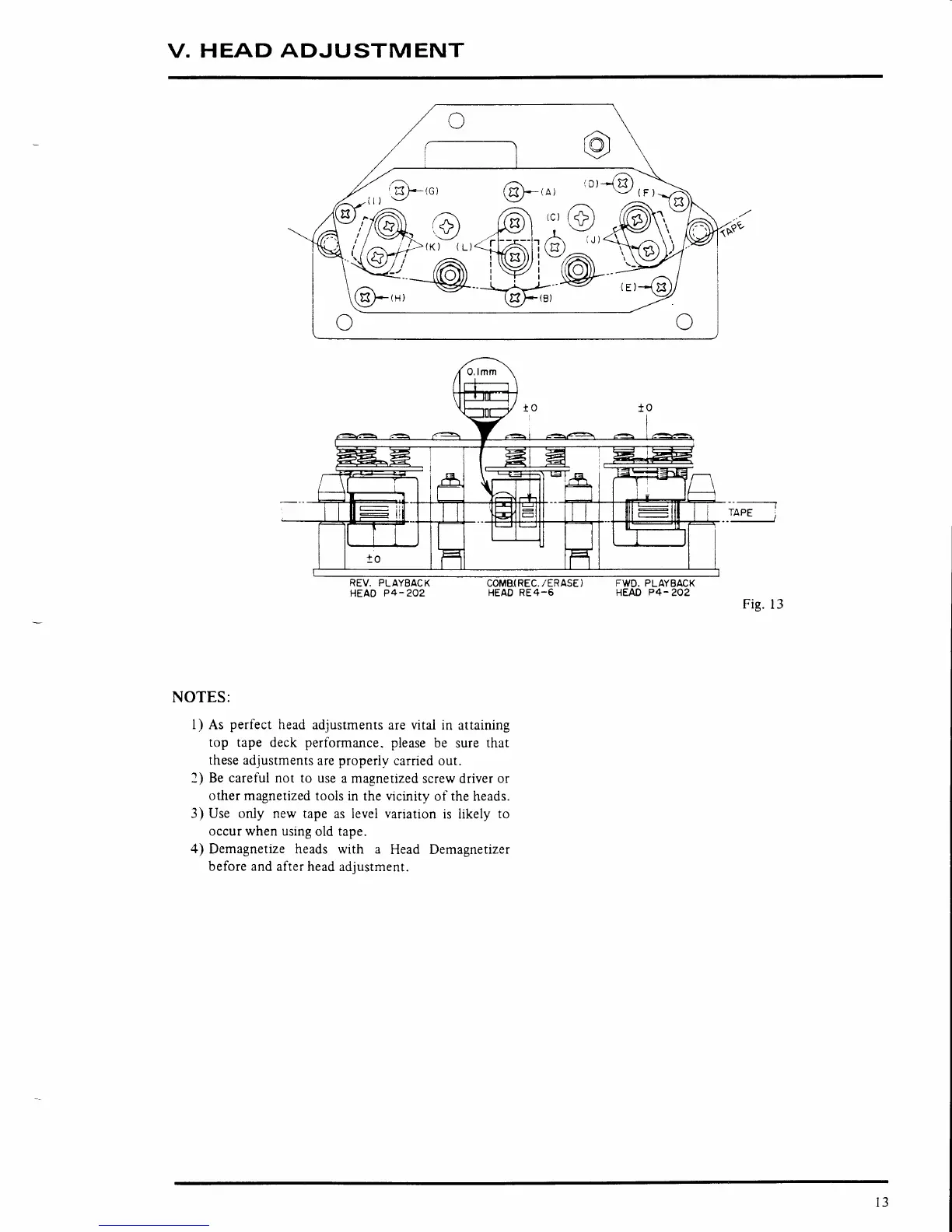

Akai GX-230 Service Manual

V.
HEAD
ADJUSTMENT
'@*'o'
@,o,
,0,@,r,-
q
Fig.
l3
REV. PLAYBACK
HEAO
P4-2O2
NOTES:
I
)
As
perfect
head
adjustmenrs
are
vitai
in
attaining
top
tape deck
perforrnance.
piease
be
sure
that
these adjustments
are
properiy
carried out.
2)
Be careful not
to
use
a magnetized screw
driver
or
other magnetized
tools
in the
vicinity
of the heads.
3) Use only new tape
as level
variation
is likely
to
occur when using
old tape.
4)
Demagnetize heads
with
a
Head Demagnetizer
before and after head
adjusrment.
COMB(REC./ERASE)
FWD.
PLAYBACK
HEAD RE4-6 HEAD
P4-2O2
13
