Akai GX-630D

TAPE GUIDE
TAPE
TENSION ARM
ADJUSTMENT WASHER ADJUSTMENT WASHER CD
% LOWER THE GUIDE DOWN A LITTLE % LIFT THE GUIDE UP A LITTLE
Fig. 6
TAPE GUIDE
ADJUSTMENT
WASHER Olt
Be KE ED SATAII
Ce, re,
Fig. 7

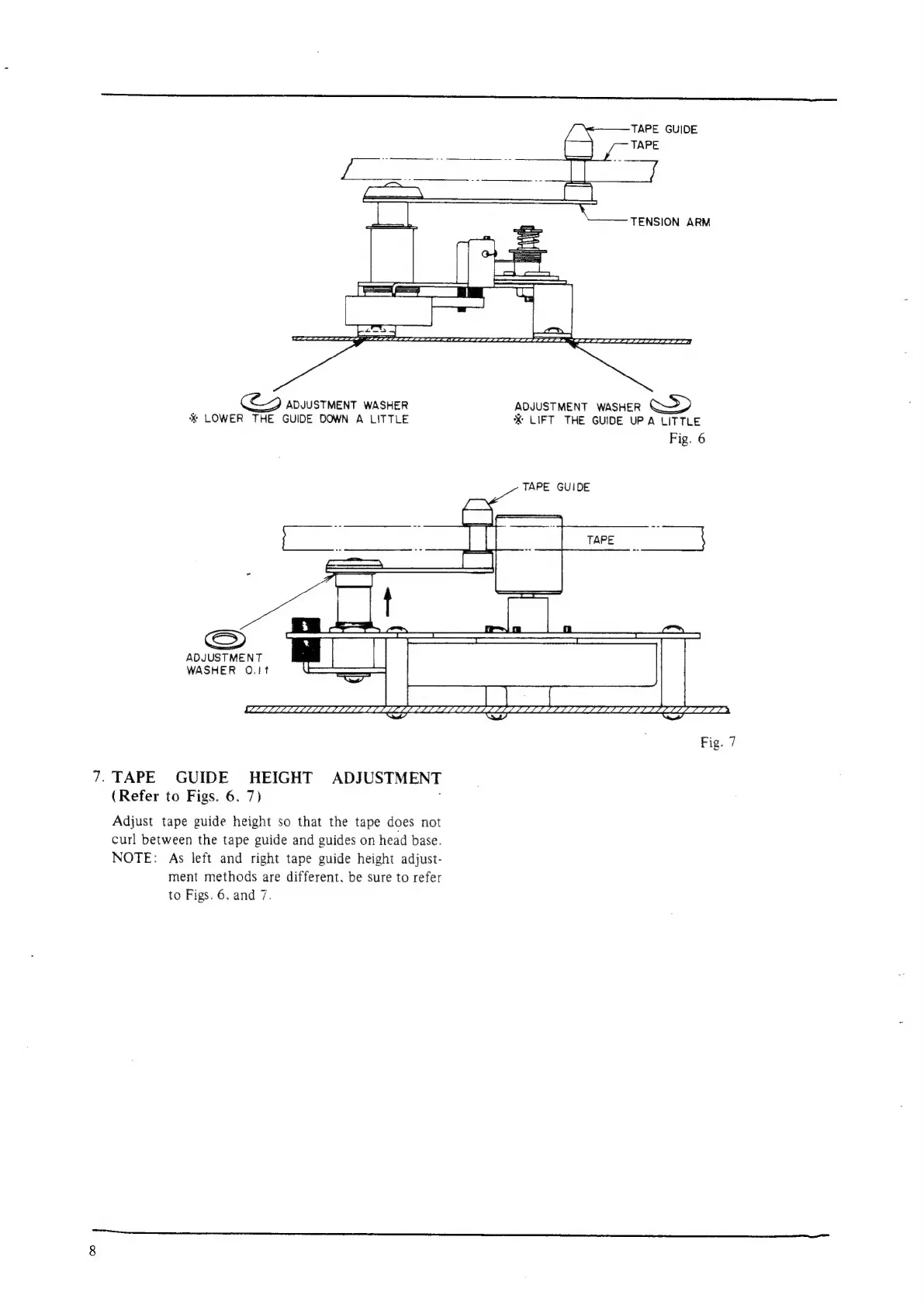

7. TAPE GUIDE HEIGHT ADJUSTMENT
(Refer to Figs. 6. 7)
Adjust tape guide height so that the tape does not
curl between the tape guide and guides on head base.
NOTE: As left and right tape guide height adjust-
ment methods are different. be sure to refer
to Figs. 6, and 7.
