Akai GX-630D Service Manual

OD
NG
3

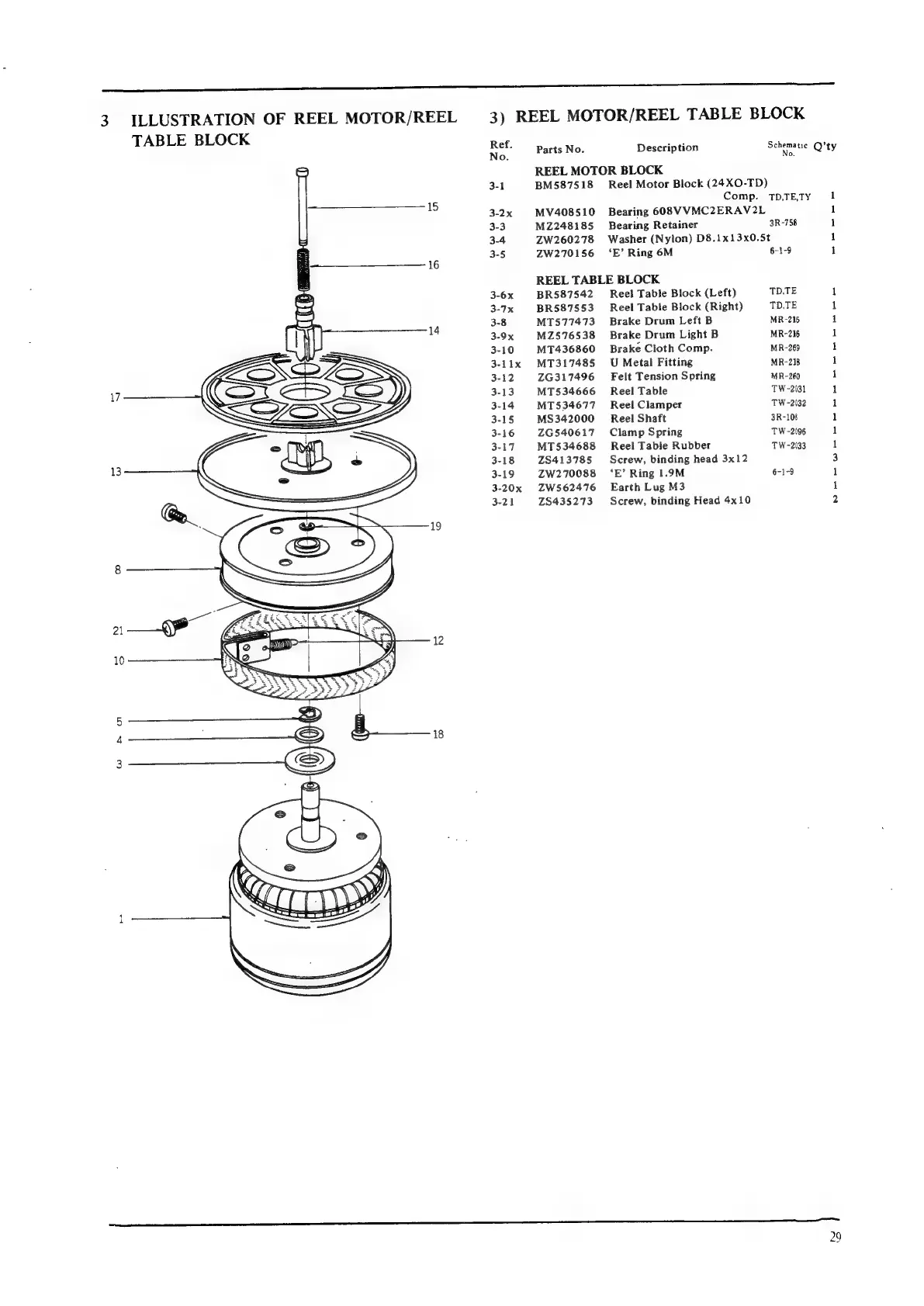

ILLUSTRATION
OF
REEL
MOTOR/REEL
TABLE
BLOCK
3)
REEL
MOTOR/REEL
TABLE
BLOCK
Ref.
No.
3-1
3-2Xx
3-3
3-4
3-5
3-6x
3-7x
3-8
3-9x
3-10
3-11x
3-12
3-13
3-14
3-15
3-16
3-17
3-18
3-19
3-20x
3-21
Parts No. Description
REEL MOTOR BLOCK
BM587518 Reel Motor Block (24XO-TD)
Comp. TDTETY
MV408510 Bearing 608VVMC2ERAV2L
MZ248185
Bearing
Retainer
3R-158
ZW260278 Washer (Nylon) D8.1x13x0.5t
ZW270156
‘E'
Ring
6M
6-1-9
REEL TABLE BLOCK
BR587542
Reel
Table
Block
(Left)
TD,TE
BR587553
Reel
Table
Block
(Right)
TD,TE
MT577473
Brake
Drum
Left
B
MR-216
MZ576538 Brake Drum Light B MR-216
MT436860 Brake Cloth Comp. MR-269
MT317485 U Metal Fitting MR-218
ZG317496 Felt Tension Spring MR-260
MT534666
Reel
Table
TW-2031
MT534677 Reel Clamper TW-2032
MS342000 Reel Shaft 3R-108
ZG540617 Clamp Spring TW-2096
MT534688 Reel Table Rubber TW-2033
ZS413785 Screw, binding head 3x12
ZW270088 ‘E’ Ring 1.9M 6-1-9
ZW562476 Earth Lug M3
ZS435273 Screw, binding Head 4x 10
Schematic OQ’
No. Q ty
ee ee ee

Akai GX-630D Specifications

General

Track System	4-track, 2-channel, stereo/monaural system
Reel Size	up to 10.5 inch reel
Wow and Flutter	0.06% (7 1⁄2 ips)
Signal to Noise Ratio	58dB
Output	0.775V
Type	Reel-to-reel tape deck
Heads	3 (erase, record, playback)
Motor	2 x reel, 1 x capstan
Tape Speeds	3 3⁄4 ips, 7 1⁄2 ips
