Akai GX-630D

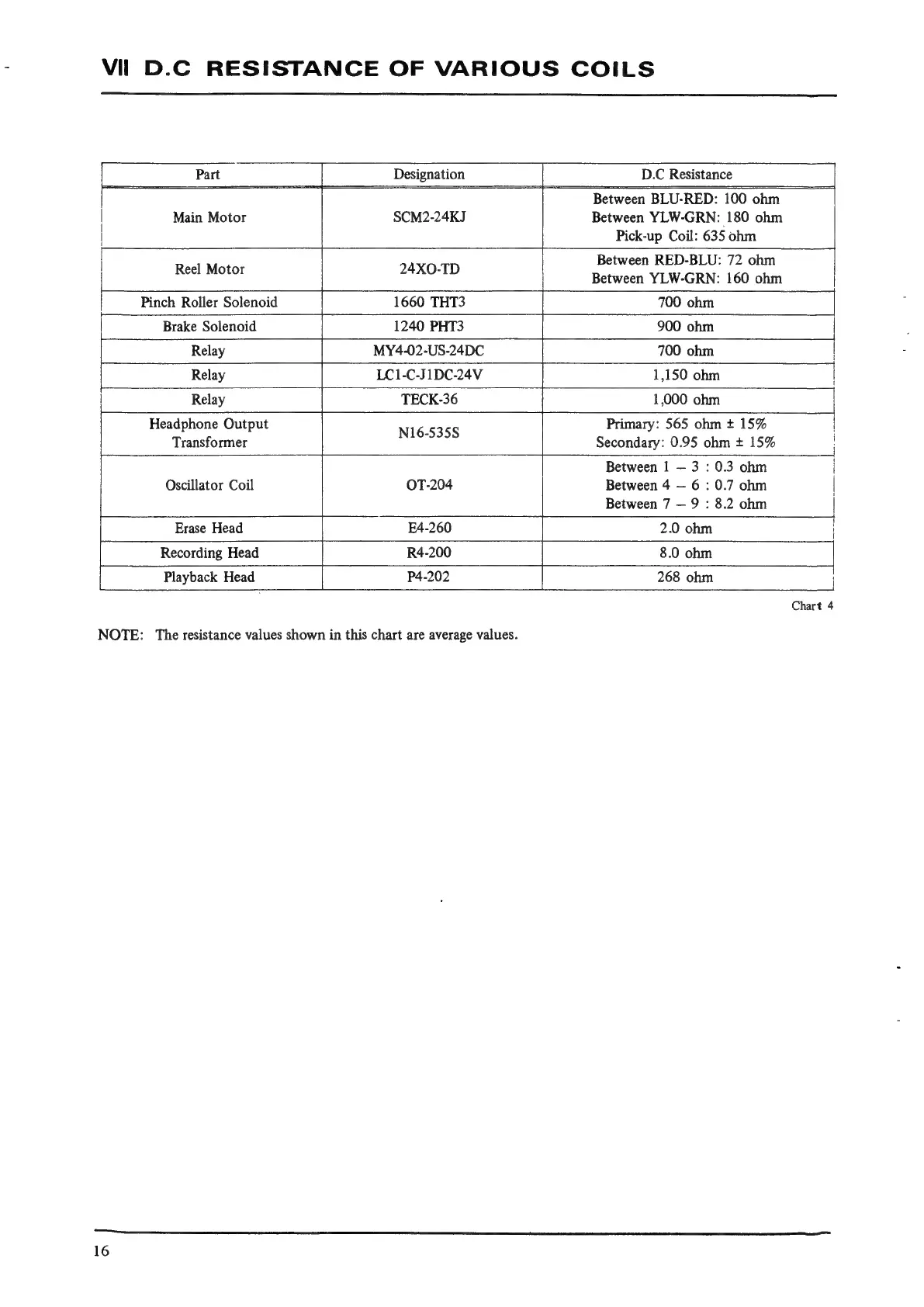

VII D.C RESISTANCE OF VARIOUS COILS
Part
Main Motor
Reel Motor
Pinch Roller Solenoid
Brake Solenoid
Relay
Relay
Relay
Headphone Output
Transformer
Oscillator Coil
Erase Head
Recording Head
Playback Head
NOTE:
16
Designation D.C Resistance
Between BLU-RED: 100 ohm
SCM2-24KJ Between YLW-GRN: 180 ohm
Pick-up Coil: 635 ohm
et - :72
ZANOD enen Ì bon
700 ohm
1240 PHT3 900 ohm
MY4-02-US-24DC 700 ohm |
LC1-C-J1DC-24V 1,150 ohm
TECK-36
N16-535S
OT-204
E4-260
1,000 ohm
Primary: 565 ohm + 15% |
Secondary: 0.95 ohm + 15%
Between 1 — 3 : 0.3 ohm
Between 4 — 6 : 0.7 ohm
Between 7 — 9 : 8.2 ohm
2.0 ohm
The resistance values shown in this chart are average values.
268 ohm |
Chart 4
