Akai GX-646 Service Manual

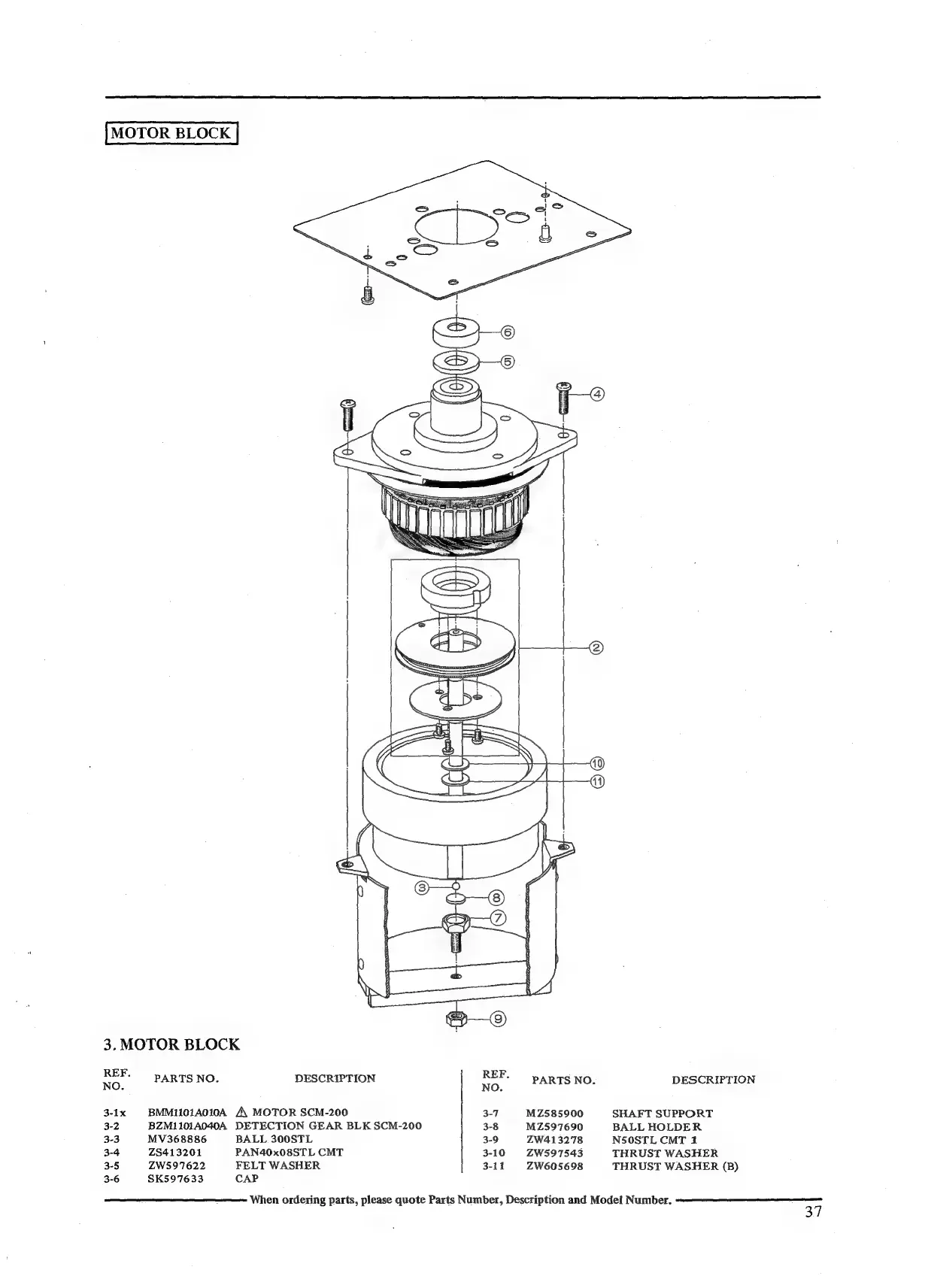

MOTOR BLOCK
3. MOTOR BLOCK
REF.
NO.
3-1x
3-2
3-3
3-4
3-5
3-6
PARTS NO. DESCRIPTION
BMM1101A010A /A\ MOTOR SCM-200
BZM1101A040A DETECTION GEAR BLK SCM-200
MV368886
ZS413201
ZW597622
SK597633
BALL 300STL
PAN40x08STL CMT
FELT WASHER
CAP
REF.
NO.
3-7
3-8
3-9
3-10
3-11
PARTS NO.
MZ585900
MZ597690
ZW413278
ZW597543
ZW605698
When ordering parts, please quote Parts Number, Description and Model Number.
DESCRIPTION
SHAFT SUPPORT
BALL HOLDER
NS5O0STL CMT 1
THRUST WASHER
THRUST WASHER (B)
37
