Akai GX-646 Service Manual

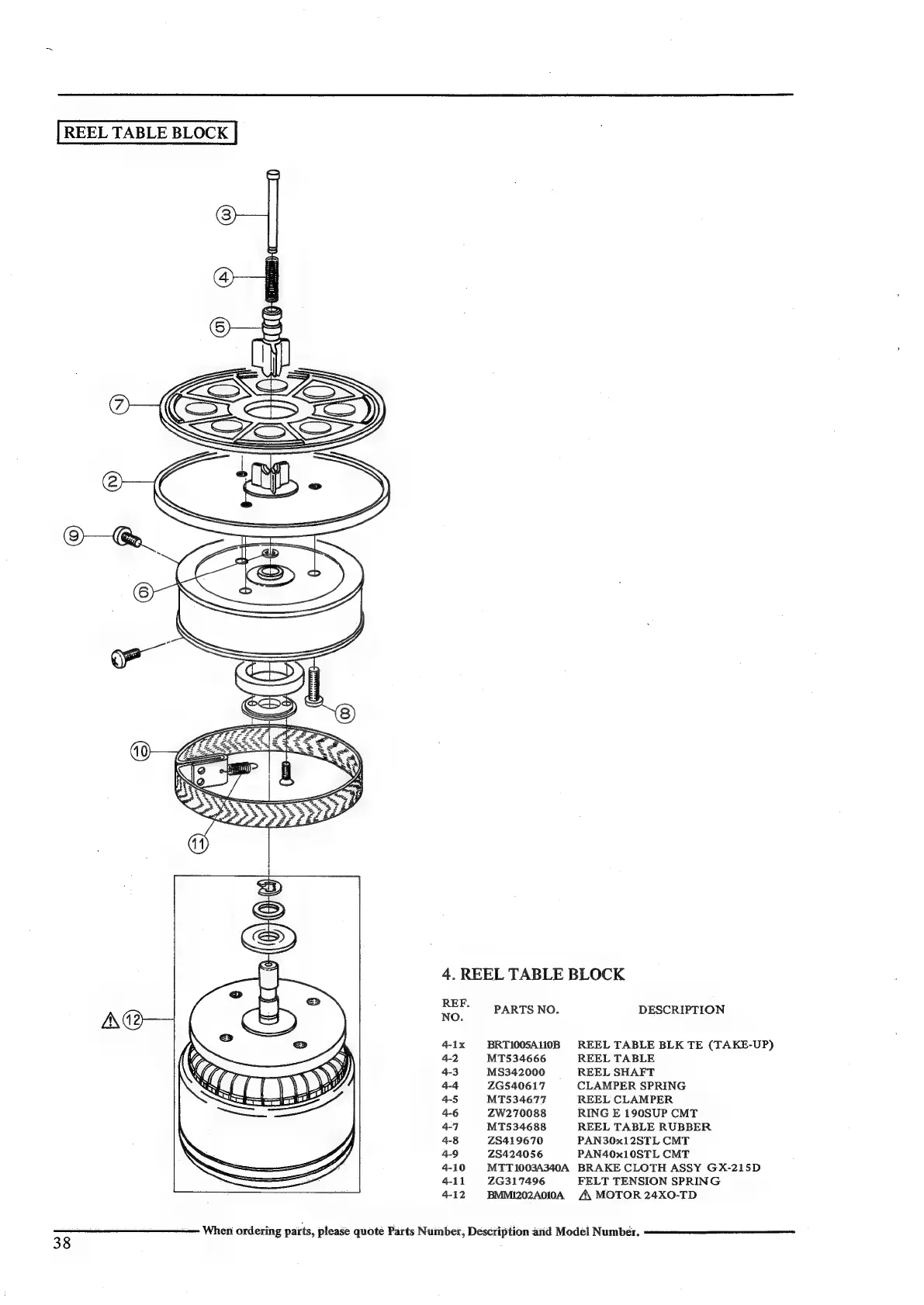

REEL TABLE BLOCK
NO.
4-1x
4-2
4-3
4-4
4-5
4-6
4-7
4-8
4-9
4-10
4-11
4-12
38
PARTS NO.
BRT1005A110B
MT534666
MS342000
ZGS40617
MT534677
ZW270088
MT534688
28419670
ZS424056
MTT 1003A340A
2G317496
BMM1202A010A.
When ordering parts, please quote Parts Number, Description and Model Number.
4. REEL TABLE BLOCK
REF.
DESCRIPTION
REEL TABLE BLK TE (TAKE-UP)
REEL TABLE
REEL SHAFT
CLAMPER SPRING
REEL CLAMPER
RING E 190SUP CMT
REEL TABLE RUBBER
PAN30x12STL CMT
PAN40x10STL CMT
BRAKE CLOTH ASSY GX-215D
FELT TENSION SPRING
A\ MOTOR 24X0-TD
