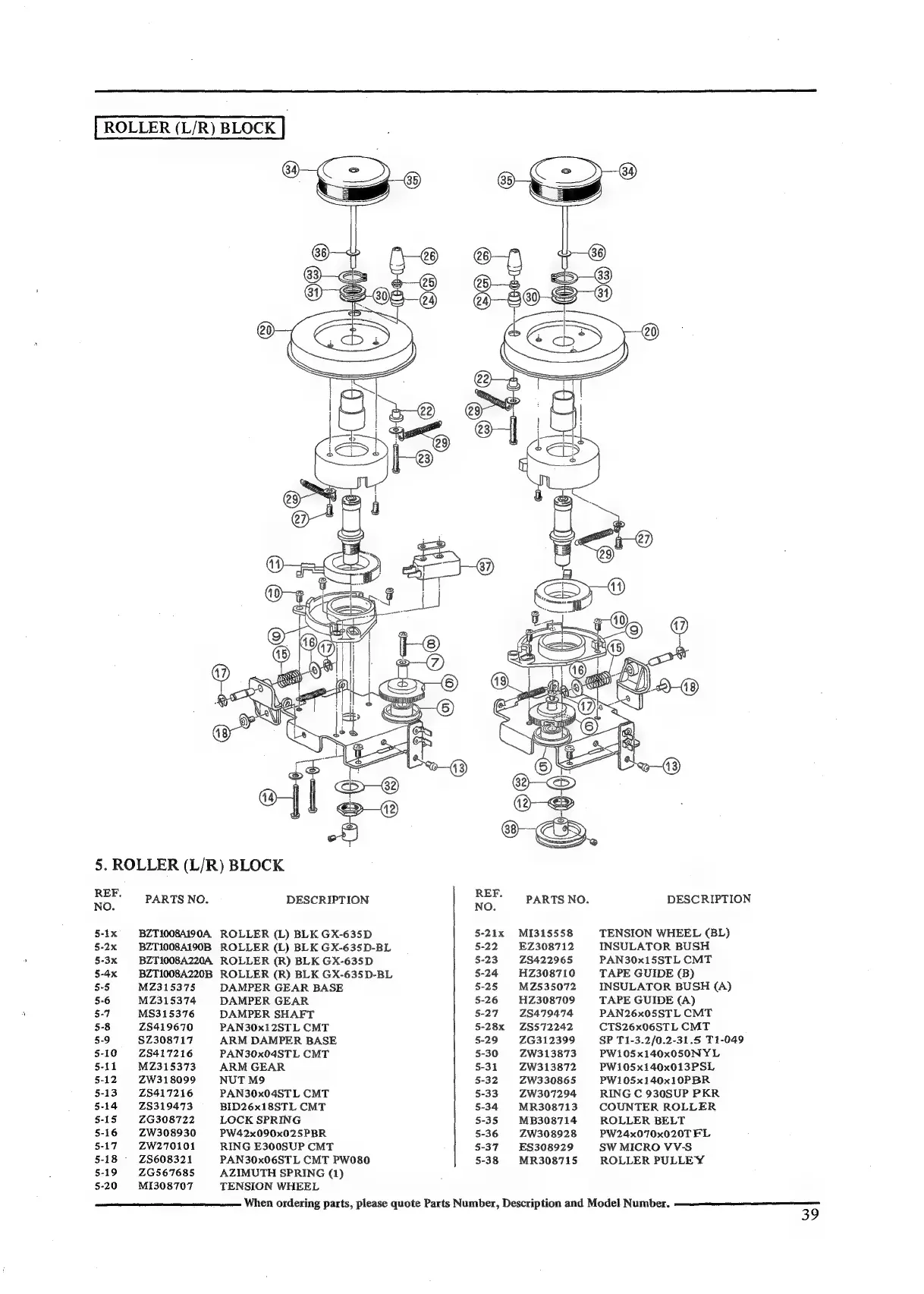

ROLLER (L/R) BLOCK
5. ROLLER (L/R) BLOCK
REF. REF.
NO: PARTS NO. DESCRIPTION no. PARTS NO. DESCRIPTION
5-1x BZTI008A190A_ ROLLER (L) BLK GX-635D 5-21x MI315558 TENSION WHEEL (BL)
5-2x BZT1008A190B ROLLER (L) BLK GX-635D-BL 5-22 EZ308712 INSULATOR BUSH
5-3x BZT1008A220A. ROLLER (R) BLK GX-635D 5-23 ZS422965 PAN30x15STL CMT
5-4x BZT1008A220B ROLLER (R) BLK GX-635D-BL 5-24 HZ308710 TAPE GUIDE (B)
5-5 MZ315375 DAMPER GEAR BASE 5-25 MZ535072 INSULATOR BUSH (A)
5-6 MZ315374 DAMPER GEAR 5-26 HZ308709 TAPE GUIDE (A)
5-7 MS315376 DAMPER SHAFT 5-27 7ZS479474 PAN26x05STL CMT
5-8 28419670 PAN30x12STL CMT §-28x ZS572242 CTS26x06STL CMT
5-9 SZ308717 ARM DAMPER BASE 5-29 ZG312399 SP T1-3.2/0.2-31.5 T1-049
5-10 28417216 PAN30x04STL CMT 5-30 ZW313873 PW105x140x050NYL
5-11 MZ315373 ARMGEAR 5-31 ZW313872 PW1i05x140x013PSL
5-12 ZW318099 NUTM9 5-32 ZW330865 PW105x140x10PBR
5-13 28417216 PAN30x04STL CMT 5-33 ZW307294 RINGC930SUP PKR
5-14 28319473 BID26x18STL CMT 5-34 MR308713 COUNTER ROLLER
5-15 ZG308722 LOCK SPRING 5-35 MB308714 ROLLER BELT
5-16 ZW308930 PW42x090x025PBR 5-36 ZW308928 PW24x070x020TFL
5-17 ZW270101 RING E300SUP CMT 5-37 ES308929 SWMICROVV-S
5-18 ° ZS608321 PAN30x06STL CMT PW080 5-38 MR308715 ROLLER PULLEY
5-19 ZG567685 AZIMUTH SPRING (1)
5-20 MI308707 TENSION WHEEL
When ordering parts, please quote Parts Number, Description and Model Number, ——$—$——————————=
39
