Akai GX-77 Service Manual

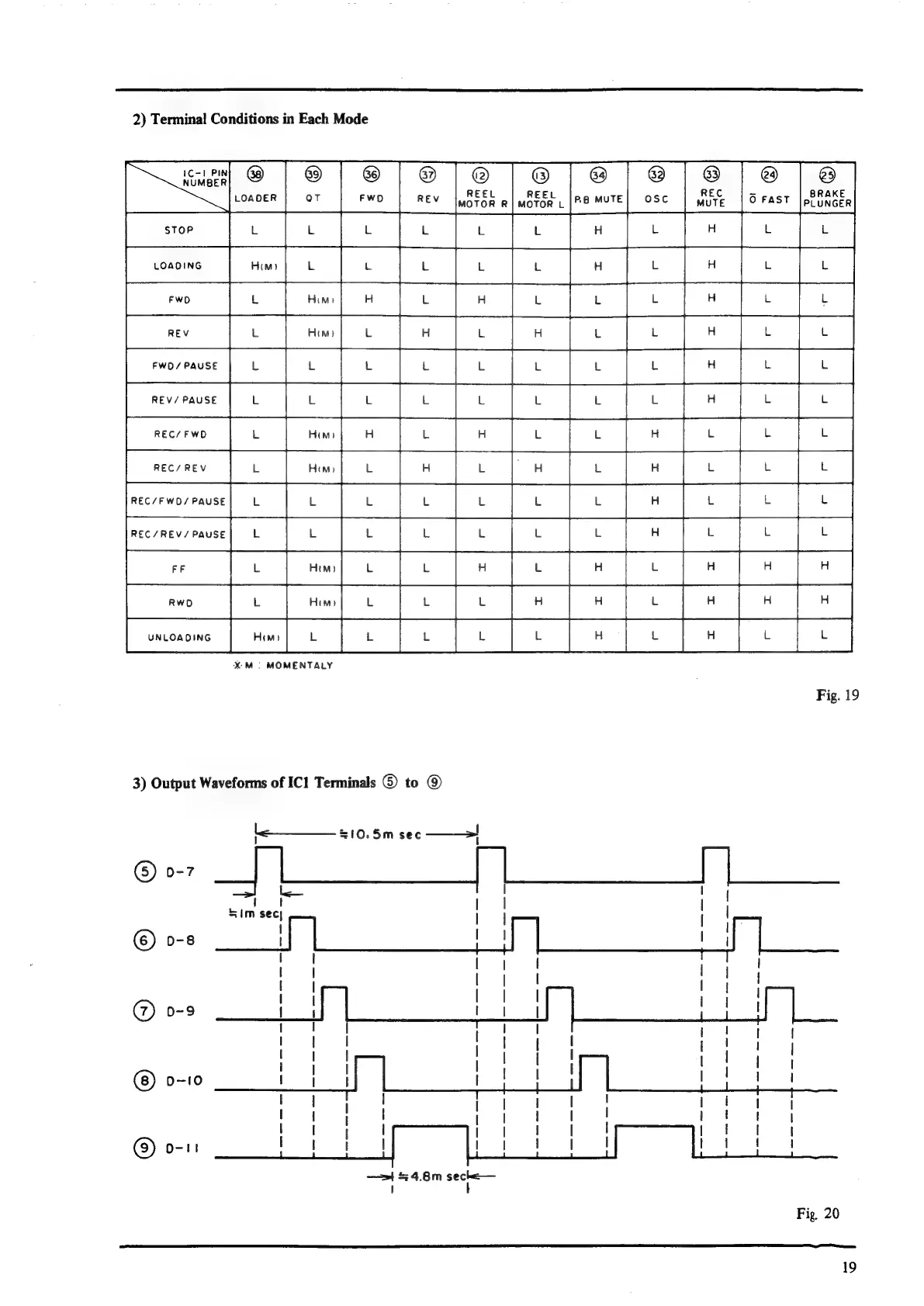

2) Terminal Conditions in Each Mode
Nomeen ® @ @
LOADER oT FWO REV A REEL log MUTE
MOTOR R/| MOTOR L
Him?
Him)
XM > MOMENTALY
Fig. 19
3) Output Waveforms of IC1 Terminals © to ©
be, Sm sec ——>
19

Akai GX-77 Specifications

General

Track System	4-track, 2-channel stereo
Tape Speed	3 3/4 ips, 7 1/2 ips
Wow and Flutter	0.03% (19 cm/s)
Heads	3
Motors	3
Dimensions	440 x 244 x 358mm
Inputs	Line input (RCA)
Outputs	Line, Headphones
