Akai GX-77 Service Manual

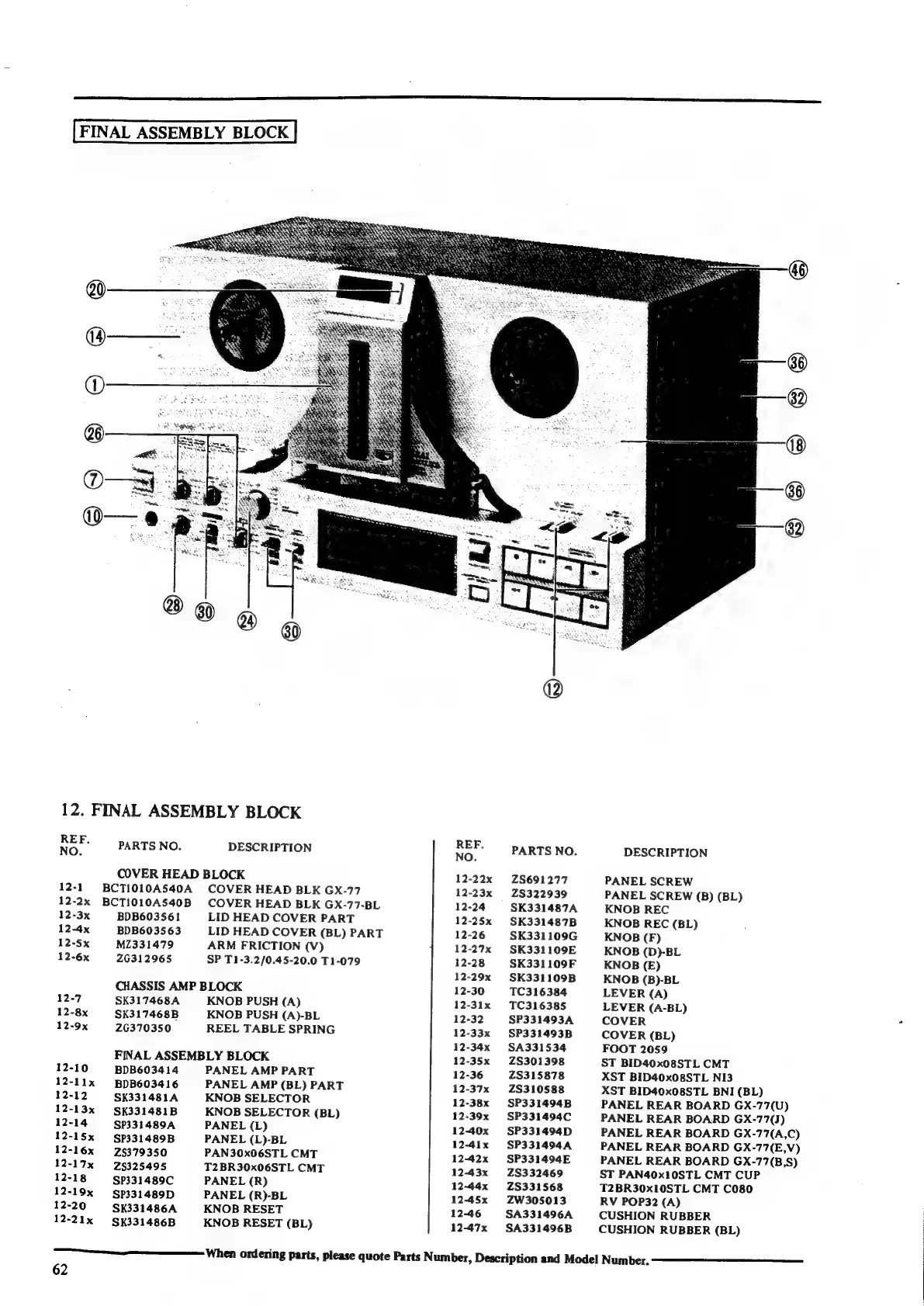

FINAL ASSEMBLY BLOCK
12.
FINAL
ASSEMBLY
BLOCK
REF.
NO.
12-1
12-2x
12-3x
12-4x
12-5x
12-6x
12-7
12-8x
12-9x
12-10
12-11x
12-12
12-13x
12-14
12-15x
12-16x
12-17x
12-18
12-19x
12-20
12-21x
Ta
—nnennnereceemem=
When
ordering
parts,
please
quote
Parts
Number,
Description
and
Model
Number.
62
PARTS NO.
DESCRIPTION
COVER HEAD BLOCK
BCTIO10A540A
COVER HEAD BLK GX-77
BCT1010A540B COVER HEAD BLK GX-77-BL
BDB603561 LID HEAD COVER PART
BDB603563
LID
HEAD
COVER
(BL)
PART
MZ331479 ARM FRICTION (V)
26312965 SP T1-3.2/0.45-20.0 T1-079
CHASSIS AMP BLOCK
SK317468A KNOB PUSH (A)
SK317468B KNOB PUSH (A)-BL
26370350 REEL TABLE SPRING
FINAL ASSEMBLY BLOCK
BDB603414 PANEL AMP PART
BDB603416 PANEL AMP (BL) PART
SK331481A KNOB SELECTOR
SK331481B KNOB SELECTOR (BL)
SP331489A PANEL (L)
SP331489B PANEL (L)-BL
25379350 PAN30x06STL CMT
28325495 T2BR30x06STL CMT
SP331489C PANEL (R)
SP331489D PANEL (R)-BL
SK331486A KNOB RESET
SK331486B KNOB RESET (BL)
REF.
NO.
12-22x
12-23x
12-24
12-25x
12-26
12-27x
12-28
12-29x
12-30
12-31x
12-32
12-33x
12-34x
12-35x
12-36
12-37x
12-38x
12-39x
12-40x
12-41x
12-42x
12-43x
12-44x
12-45x
12-46
12-47x
PARTS NO.
ZS691277
ZS322939
SK331487A
SK331487B
SK331109G
SK331109E
SK331109F
SK331109B
TC316384
TC316385
SP331493A
SP331493B
SA331534
ZS301398
ZS315878
ZS310588
SP331494B
SP331494C
SP331494D
SP331494A
SP331494E
ZS332469
ZS331568
ZW305013
SA331496A
SA331496B
DESCRIPTION
PANEL SCREW
PANEL SCREW (B) (BL)
KNOB REC
KNOB REC (BL)
KNOB (F)
KNOB (D)-BL
KNOB (E)
KNOB (B)-BL
LEVER (A)
LEVER (A-BL)
COVER
COVER (BL)
FOOT 2059
ST BID40x08STL CMT
XST BID40x08STL NI3
XST BID40x08STL BNI (BL)
PANEL REAR BOARD GX-77(U)
PANEL REAR BOARD GX-77(3)
PANEL REAR BOARD GX-77(A,C)
PANEL REAR BOARD GX-77(E,V)
PANEL REAR BOARD GX-77(B,S)
ST PAN40x10STL CMT CUP
T2BR30x10STL CMT C080
RV POP32 (A)
CUSHION RUBBER
CUSHION RUBBER (BL)

Akai GX-77 Specifications

General

Track System	4-track, 2-channel stereo
Tape Speed	3 3/4 ips, 7 1/2 ips
Wow and Flutter	0.03% (19 cm/s)
Heads	3
Motors	3
Dimensions	440 x 244 x 358mm
Inputs	Line input (RCA)
Outputs	Line, Headphones
