Akai GX-77 Service Manual

0
A

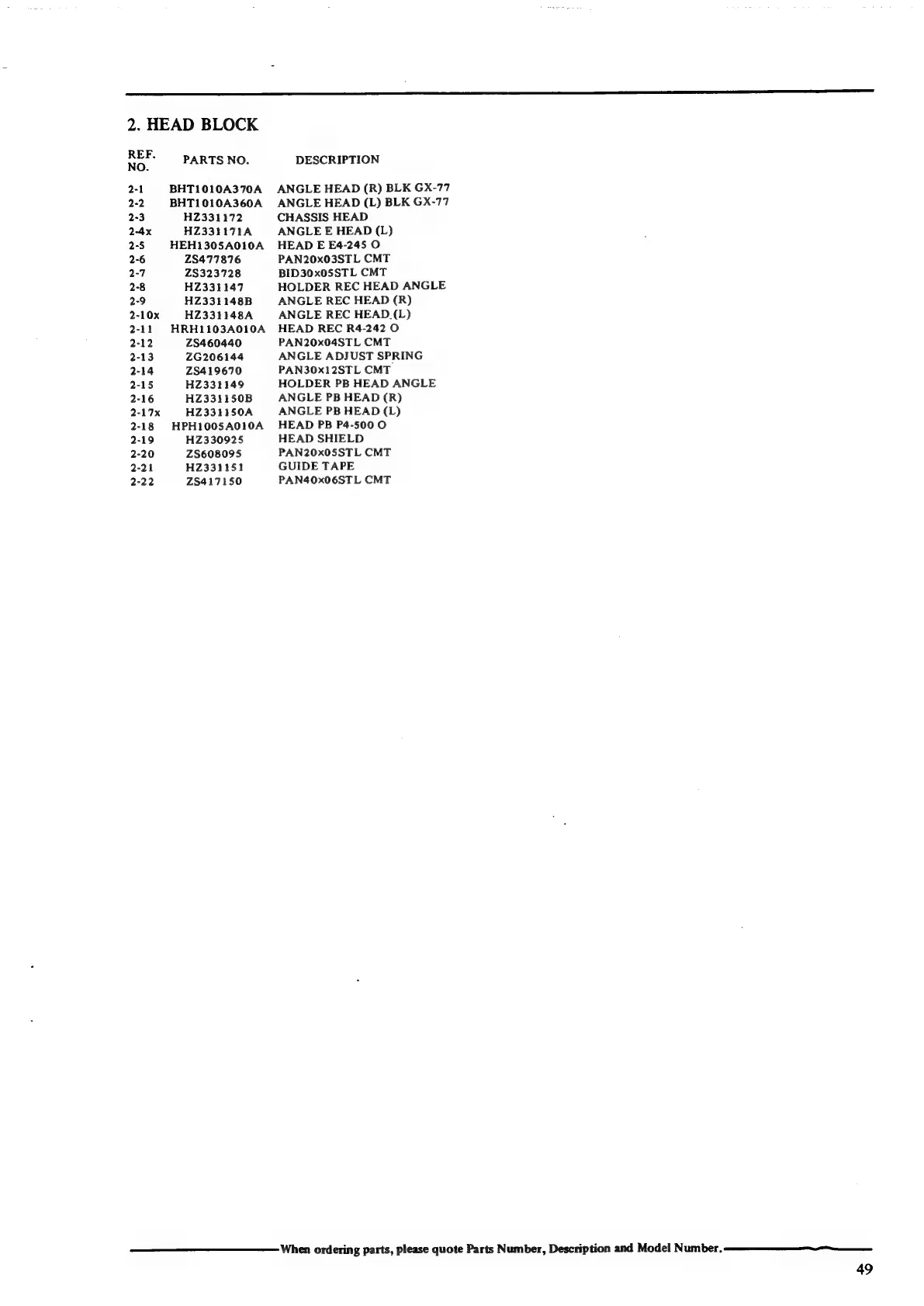

2. HEAD BLOCK
REF.
NO.
2-1
2-2
2-3
2-4x
2-5
2-6
2-7
2-8
2-9
2-10x
2-11
2-12
2-13
2-14
2-15
2-16
2-17x
2-18
2-19
2-20
2-21
2-22
PARTS NO.
BHT1010A370A
BHT1010A360A
HZ331172
HZ333171A
HEH1305A010A
ZS4.77876
ZS323728
HZ331147
HZ331148B
HZ331148A
HRH1103A010A
ZS460440
ZG206144
ZS419670
HZ331149
HZ331150B
HZ331150A
HPH1005A010A
HZ330925
ZS608095
HZ331151
ZS417150
DESCRIPTION
ANGLE HEAD (R) BLK GX-77
ANGLE HEAD (L) BLK GX-77
CHASSIS HEAD
ANGLE E HEAD (L)
HEAD E E4-245 O
PAN20x03STL CMT
BID30x0S5STL CMT
HOLDER REC HEAD ANGLE
ANGLE REC HEAD (R)
ANGLE REC HEAD. (L)
HEAD REC R4-242 O
PAN20x04STL CMT
ANGLE ADJUST SPRING
PAN30x12STL CMT
HOLDER PB HEAD ANGLE
ANGLE PB HEAD (R)
ANGLE PB HEAD (L)
HEAD PB P4-500 O
HEAD SHIELD
PAN20x0S5STL CMT
GUIDE TAPE
PAN40x06STL CMT
When ordering parts, please quote Parts Number, Description and Model Number, —————————-___—
49

Akai GX-77 Specifications

General

Track System	4-track, 2-channel stereo
Tape Speed	3 3/4 ips, 7 1/2 ips
Wow and Flutter	0.03% (19 cm/s)
Heads	3
Motors	3
Dimensions	440 x 244 x 358mm
Inputs	Line input (RCA)
Outputs	Line, Headphones
