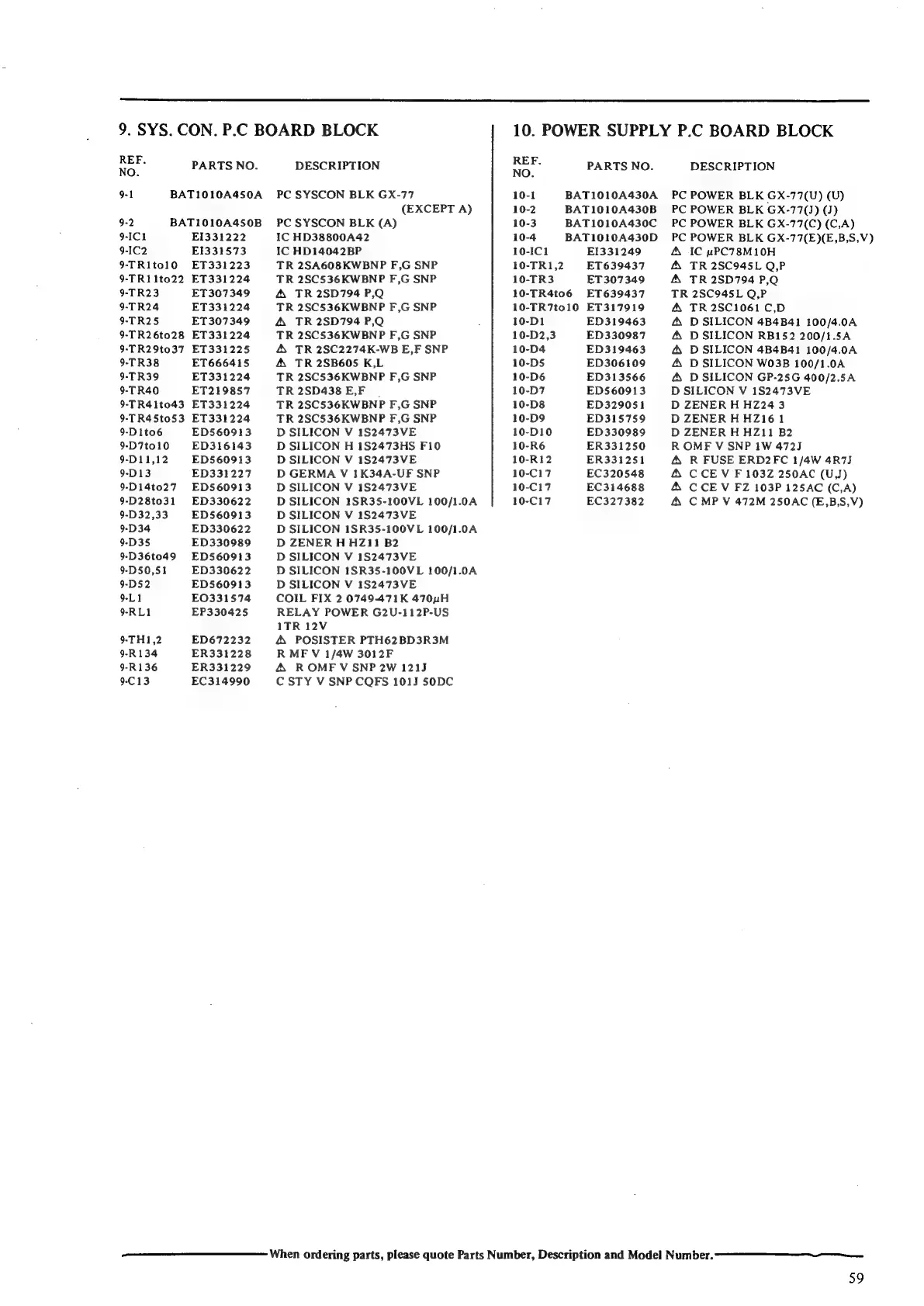

9. SYS. CON. P.C BOARD BLOCK
REF.
NO. PARTS NO.
9-1 BAT1010A450A
9-2 BAT1010A450B
9-ICt E1331222
9-1C2 EI331573
9-TR1tol10 ET331223
9-TR11to22 ET331224
9-TR23 ET307349
9-TR24 ET331224
9-TR25 ET307349
9-TR26to28 ET331224
9-TR29to37 ET331225
9-TR38 ET666415
9-TR39 ET331224
9-TR40 ET219857
9-TR41to43 ET331224
9-TR45to53 ET331224
9-D1to6 EDS560913
9-D7to10 ED316143
9-D11,12 ED560913
9-D13 ED331227
9-D14to27 EDS60913
9-D28to31 ED330622
9-D32,33 EDS560913
9-D34 ED330622
9-D35 ED330989
9-D36to49 EDS560913
9-D50,51 ED330622
9-D52 ED560913
9-L1 E0331574
9-RL1 EP330425
9-TH1,2 ED672232
9-R134 ER331228
9-R136 ER331229
9-C13 EC314990
DESCRIPTION
PC SYSCON BLK GX-77
(EXCEPT A)
PC SYSCON BLK (A)
IC HD38800A42
IC HD14042BP
TR 2SA608KWBNP F,G SNP
TR 2SCS36KWBNP F,G SNP
A TR 2SD794 P,Q
TR 2SC536KWBNP F,G SNP
A TR2SD794 P,Q
TR 2SCS36KWBNP F,G SNP
A TR 2SC2274K-WB E,F SNP
A TR 2SB605 K,L
TR 2SC536KWBNP F,G SNP
TR2SD438 E,F _
TR 2SCS36KWBNP F,G SNP
TR 2SCS36KWBNP F,G SNP
D SILICON V 1S2473VE
D SILICON H 1S2473HS F10
D SILICON V 1S2473VE
D GERMA V 1K34A-UF SNP
D SILICON V 1S82473VE
D SILICON 1SR35-100VL 100/1.0A
D SILICON V 182473VE
D SILICON 1SR35-100VL 100/1.0A
D ZENER H HZ11 B2
D SILICON V 182473VE
D SILICON 1SR35-100VL 100/1.0A
D SILICON V 1$2473VE
COIL FIX 2 0749-471K 470uH
RELAY POWER G2U-112P-US
1TR 12V
A POSISTER PTH62BD3R3M
R MF V 1/4W 3012F
A&A ROME V SNP 2W 1215
C STY V SNP CQFS 1013 50DC
10. POWER SUPPLY P.C BOARD BLOCK
REF.
NO. PARTS NO.
10-1 BAT1010A430A
10-2 BAT1010A430B
10-3 BAT1010A430C
10-4 BAT1010A430D
10-IC1 E1331249
10-TR1,2 ET639437
10-TR3 ET307349
10-TR4to6 ET639437
10-TR7to10 ET317919
10-D1 ED319463
10-D2,3 ED330987
10-D4 ED319463
10-DS5 ED306109
10-D6 ED313566
10-D7 EDS60913
10-D8 ED329051
10-D9 ED315759
10-D10 ED330989
10-R6 ER331250
10-R12 ER331251
10-C17 EC320548
10-C17 EC314688
10-C17 EC327382
DESCRIPTION
PC POWER BLK GX-77(U) (U)
PC POWER BLK GX-77(J) (J)
PC POWER BLK GX-77(C) (C,A)
PC POWER BLK GX-77(E)(E;B,S,V)
4 IC uPC78M10H
A TR 2SC945L Q,P
A TR 2SD794 P,Q
TR 2SC945L Q,P
TR 2SC1061 C,D
D SILICON 4B4B41 100/4.0A
D SILICON RB152 200/1.5A
D SILICON 4B4B41 100/4.0A
D SILICON W03B 100/1.0A
D SILICON GP-25G 400/2.5A
D SILICON V 1S82473VE
D ZENER H HZ24 3
D ZENER HHZ16 1
D ZENER H HZ11 B2
R OMF V SNP 1W 472)
A R FUSE ERD2FC 1/4W 4R7J
A CCE V F 103Z 250AC (U,J)
A CCE V FZ 103P 125AC (C,A)
A CMP V 472M 250AC (E,B,S,V)
PBPBPPBRD
When ordering parts, please quote Parts Number, Description and Model Number.-———————————~>—-
