Akai GX-F31

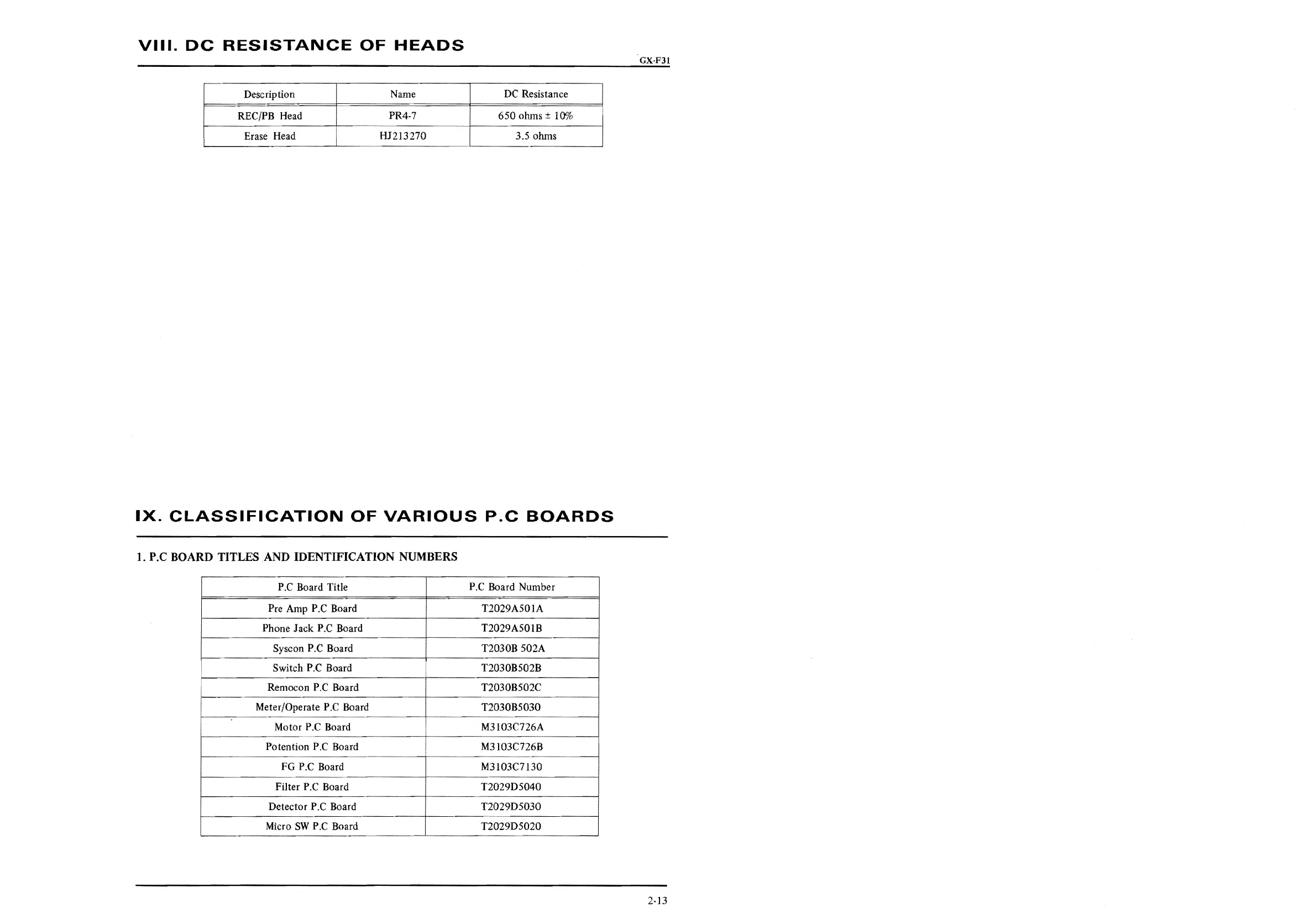

VIII. DC RESISTANCE OF HEADS
GX-F31
Description
Name
DC Resistance
REC/PB Head
PR4-7
650
ohms± 10%
Erase Head HJ213270 3.5 ohms
IX. CLASSIFICATION OF VARIOUS P.C BOARDS
I. P.C BOARD TITLES AND IDENTIFICATION NUMBERS
P.C Board Title
P.C Board Number
Pre Amp
P.C Board T2029A501A
Phone Jack
P.C Board
T2029A501B
Syscon
P.C Board T2030B 502A
Switch
P.C Board T2030B502B
Remocon
P.C Board
T2030B502C
Meter/Operate
P.C Board
T2030B5030
Motor
P.C Board M3103C726A
Potention
P.C Board M3103C726B
FG P.C Board M3103C7130
Filter
P.C Board T2029D5040
Detector
P.C Board T2029D5030
Micro
SW P .C Board T2029D5020
2-13
