Akai GX-F31

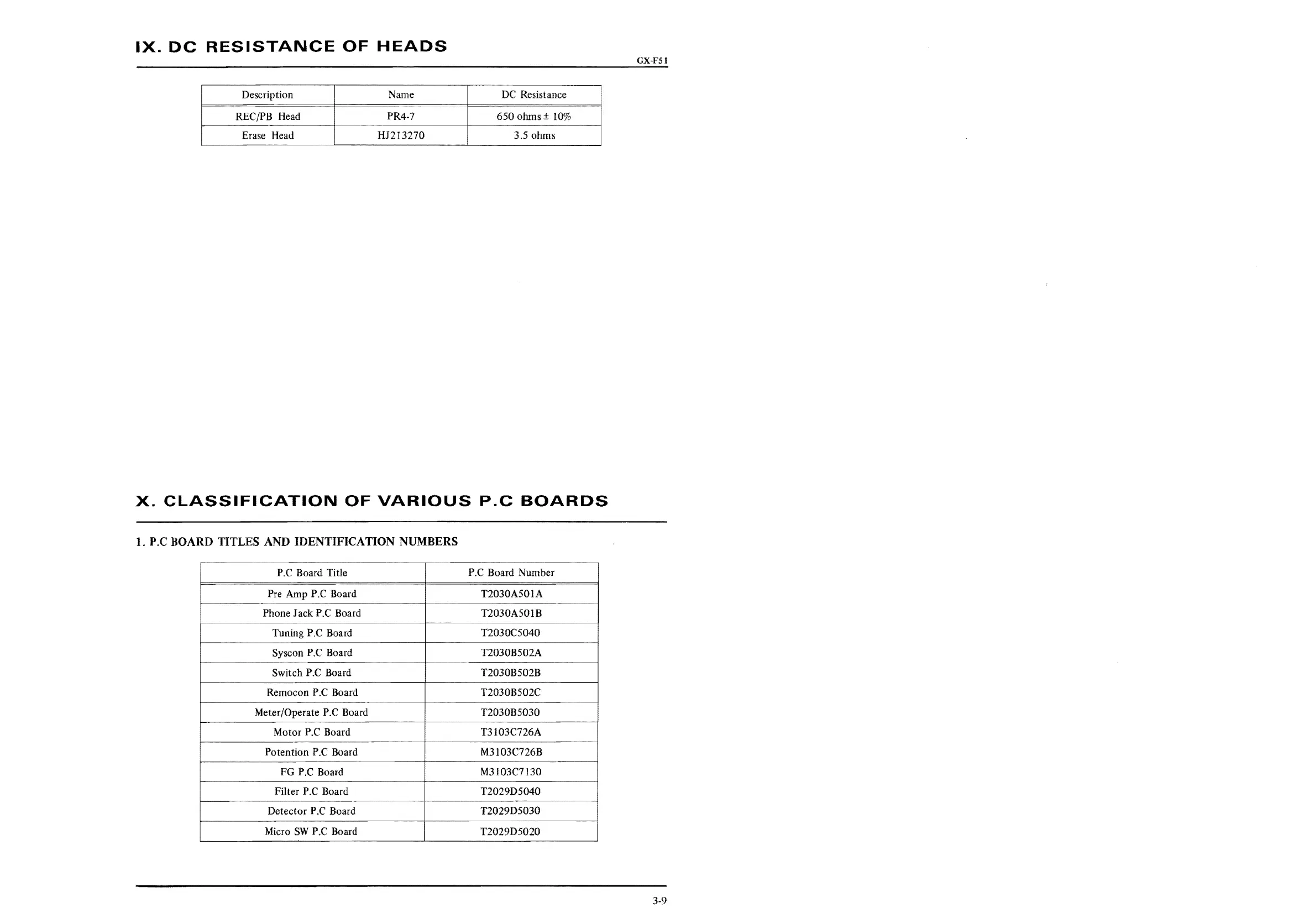

IX. DC RESISTANCE OF HEADS
GX-FSI
Description Name DC Resistance
REC/PB Head
PR4-7
650 ohms± 10%
Erase Head HJ213270 3.5 ohms
X. CLASSIFICATION OF VARIOUS P.C BOARDS
1. P.C BOARD TITLES AND IDENTIFICATION NUMBERS
P.C Board Title
P.C Board Number
Pre Amp
P.C Board
T2030A501A
Phone Jack
P.C Board
T2030A501B
Tuning
P.C Board T2030C5040
Syscon
P.C Board T2030B502A
Switch
P.C Board T20308502B
Remocon
P.C Board T2030B502C
Meter/Operate
P.C Board
T2030B5030
Motor
P.C Board T3103C726A
Potention
P.C Board
M3103C726B
FG P.C Board
M3103C7130
Filter
P.C Board T2029D5040
Detector
P.C Board
T2029D5030
Micro
SW P.C Board T2029D5020
3-9
