MAKING THE CONNECTIONS
CONNECTING MAIN UNIT TO PEDESTAL UNIT

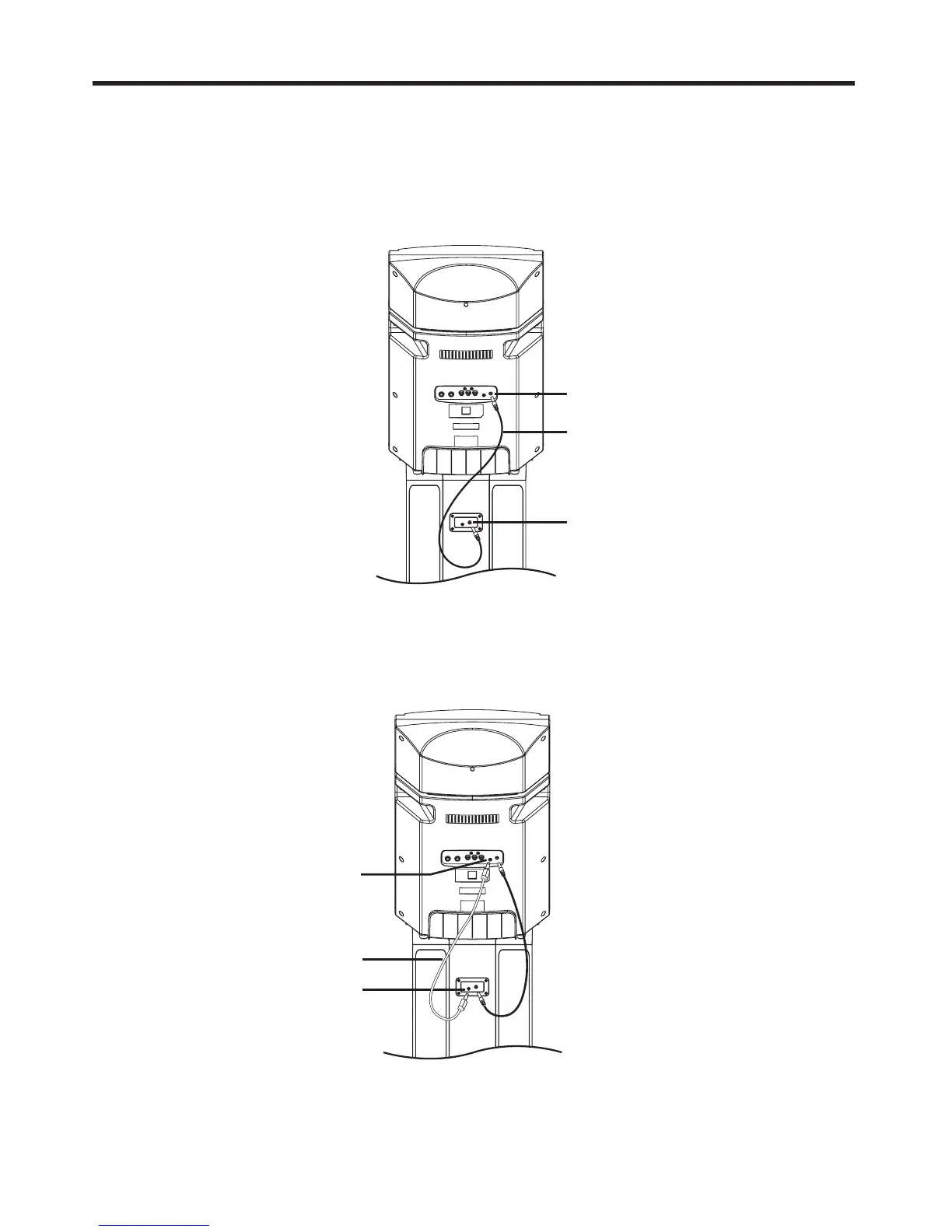

1. Please follow the steps below to make connection between main unit and pedestal unit.
2. Connect the supplied DC power connection cable between the DC OUT jack at the back
of the speaker pedestal and DC IN jack at the back of the main unit.
3. Connect the supplied audio connection cable between the LINE IN jack at the back of the
speaker pedestal and LINE OUT jack at the back of the main unit.
11
DC CONNECTION CABLE
DC OUT JACK
DC IN JACK
AUDIO CONNECTION CABLE
LINE OUT JACK
LINE IN JACK
