Akai M-10 User Manual

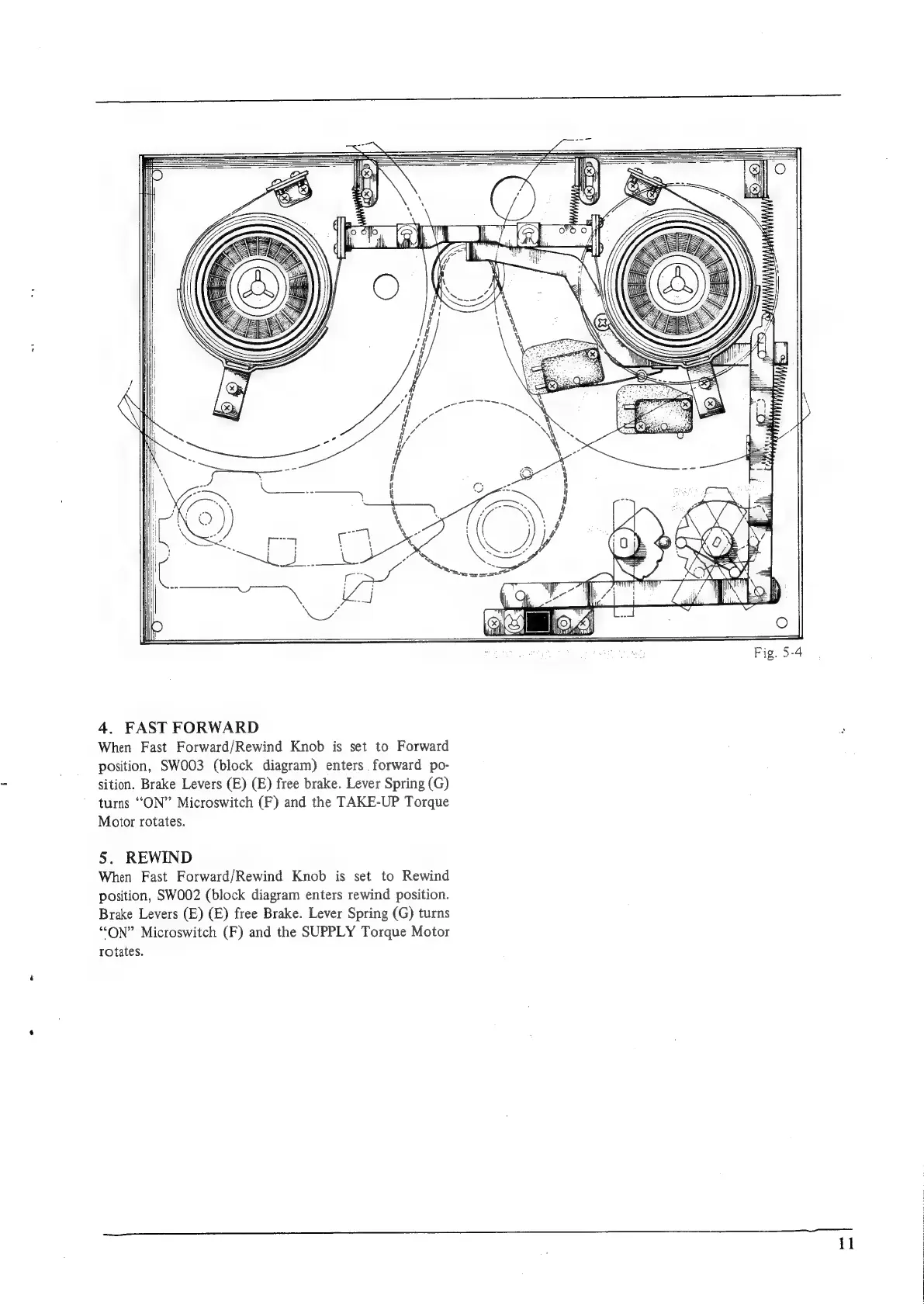

4, FAST FORWARD
When Fast Forward/Rewind Knob is set to Forward
position, SW003 (block diagram) enters forward po-
sition. Brake Levers (E) (E) free brake. Lever Spring (G)
turns ‘‘ON” Microswitch (F) and the TAKE-UP Torque
Motor rotates.
5. REWIND
When Fast Forward/Rewind Knob is set to Rewind
position, SW002 (block diagram enters rewind position.
Brake Levers (E) (E) free Brake. Lever Spring (G) turns
“ON” Microswitch (F) and the SUPPLY Torque Motor
rotates.
Fig. 5-4
11
