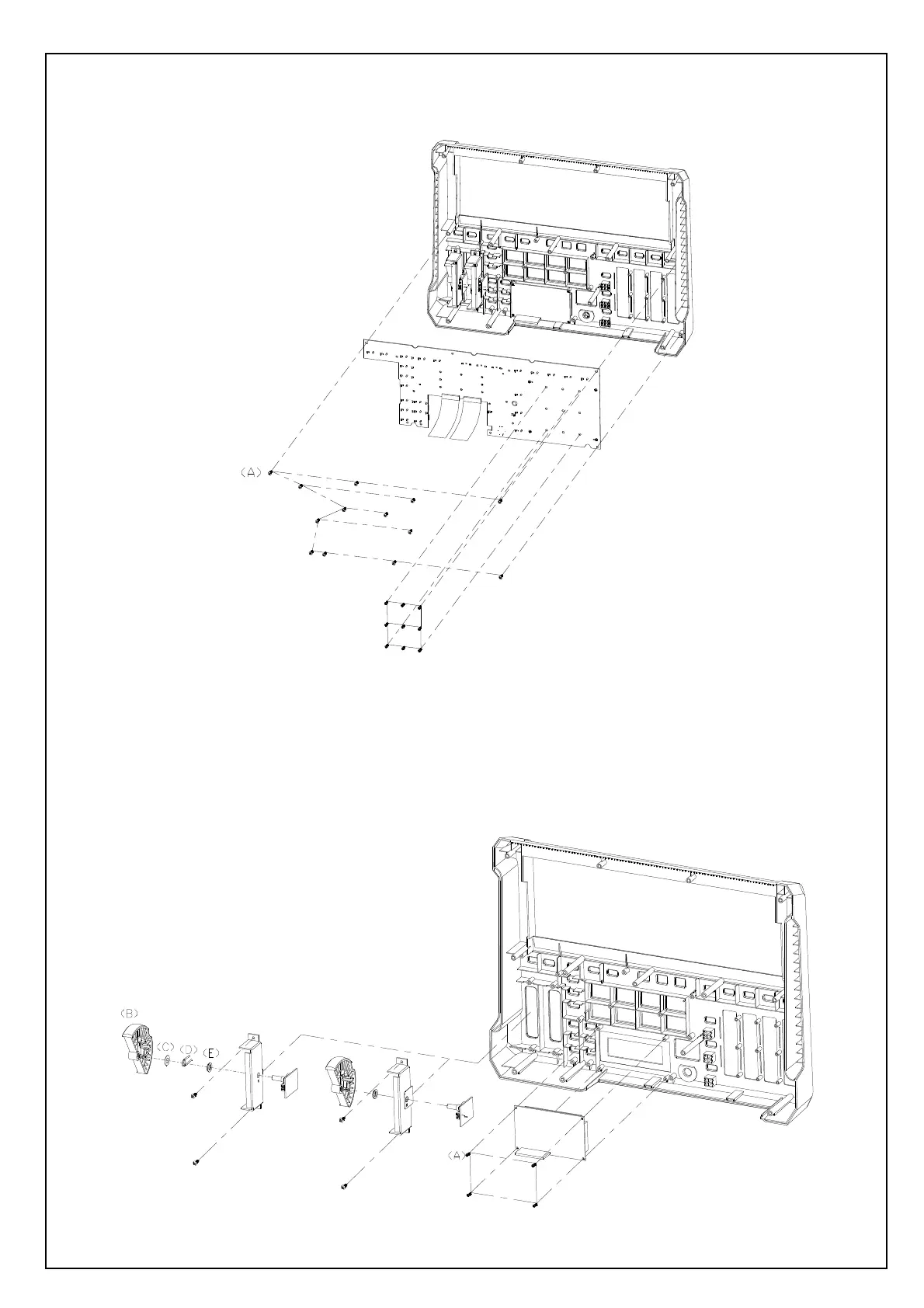

3.DISASSEMBLE THE TOP PANEL PCB $66¶<)LJ.3)
(A) REMOVE 22 SCREWS.
(Fig.3)
4.DISASSEMBLE THE LCM $66¶< , MOD PCB AND PITCH PCB. (Fig.4)
(A) REMOVE 8 SCREWS.
(B) REMOVE 2 WHEELS.
(C) REMOVE 1 WASHER.
(D) REMOVE 1 SPRING.
(E) REMOVE 2 NUTS
(Fig.4)
