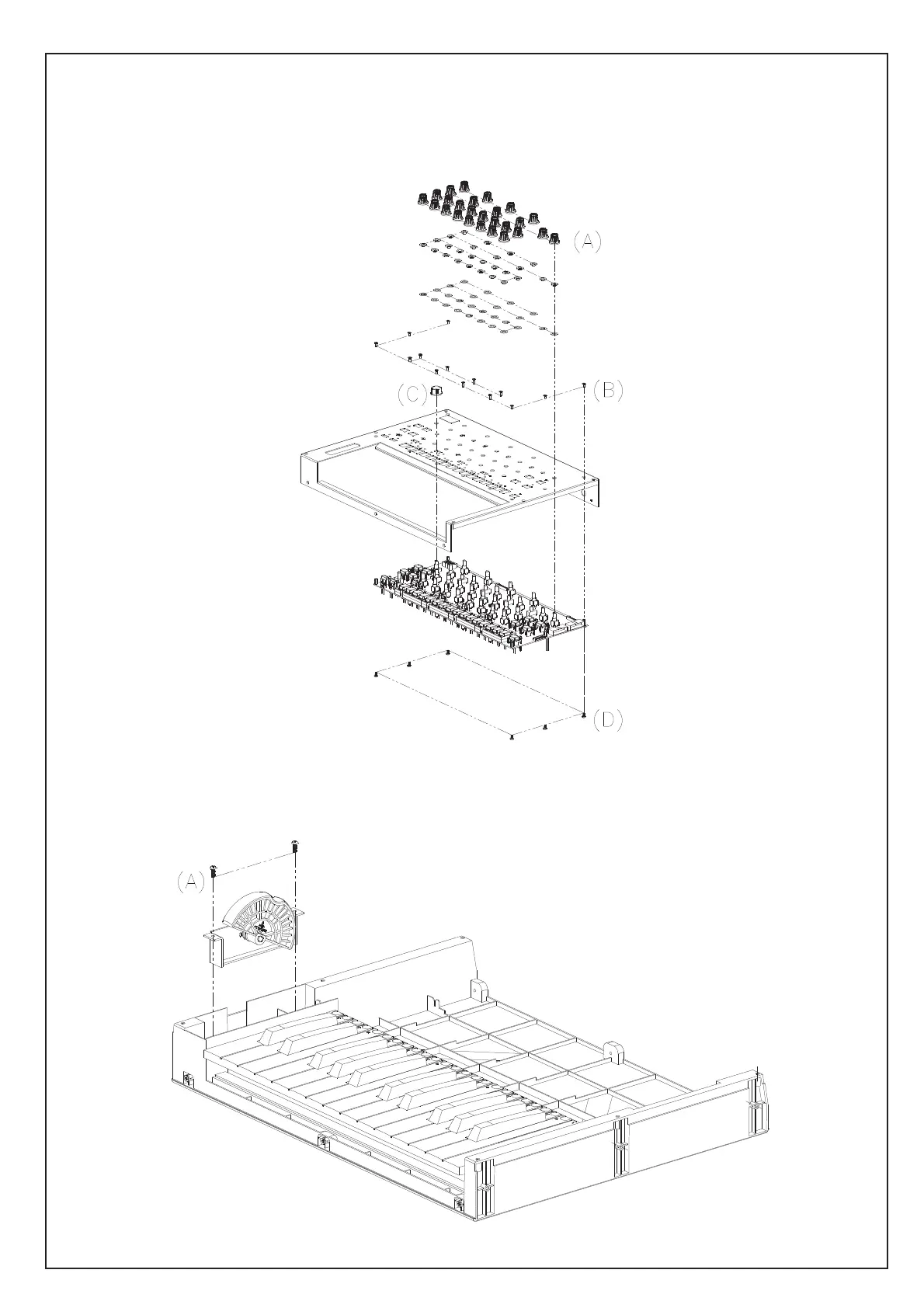

3. DISASSEMBLE THE MAIN PCB ASS’Y.
(A)REMOVE 26 PCS KNOB.WASHER.NUT FROM THE TOP PANEL.
(B)REMOVE 14 PCS SCREW FROM THE TOP PANEL.
(C)REMOVE 1 PC KNOB FROM THE TOP PANEL.
(D)REMOVE 6 PCS SCREW FROM THE MAIN PCB ASS’Y.
(Fig3)
4. DISASSEMBLE THE P/M WHEEL ASS’Y.
(A)REMOVE 2 PCS SCREW FROM THE P/M WHEEL ASS’Y.
(Fig4)
