Akai TIMBREWOLF - Disassembly

DISASSEMBLY PROCEDURES
1.
DISASSEMBLE THE BOTTOM PANEL. RIGHT COVER AND LEFT COVER.
(A) REMOVE 6 PCS SCREW FROM THE RIGHT COVER AND LEFT COVER.
(B) REMOVE 6 PCS SCREW FROM THE BOTTOM PANEL.
(C) REMOVE 6 PCS SCREW FROM THE TOP PANEL.

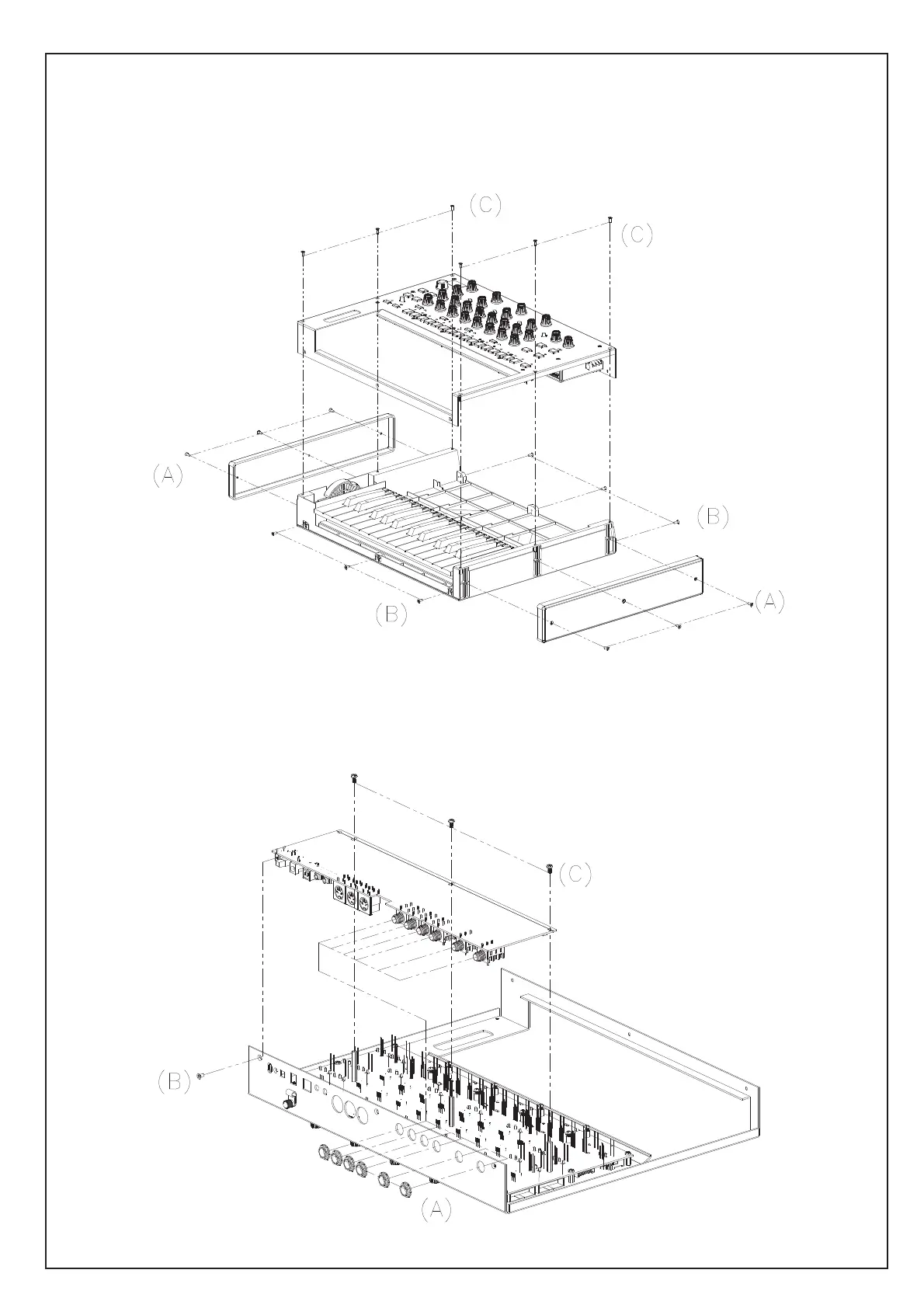

(Fig1)
2. DISASSEMBLE THE I/O PCB ASS’Y.
(A)REMOVE 6 NUTS FROM THE I/O PCB ASS’Y.
(B)REMOVE 1 PCS SCREW FROM THE I/O PCB ASS’Y.
(C)REMOVE 3 PCS SCREW FROM THE I/O PCB ASS’Y.
(Fig2)
