VOLUME MOTOR MAIN VR PCB CD-FLD PCB SYSTEM-FLD PCB OPERATION PCB
Fam — ies
EJECT TAPE-l| EJECT MOTOR TAPE-! CAPSTAN
CAM GEAR MECHANISM BLOCK MECHANISM BLOCK MOTOR

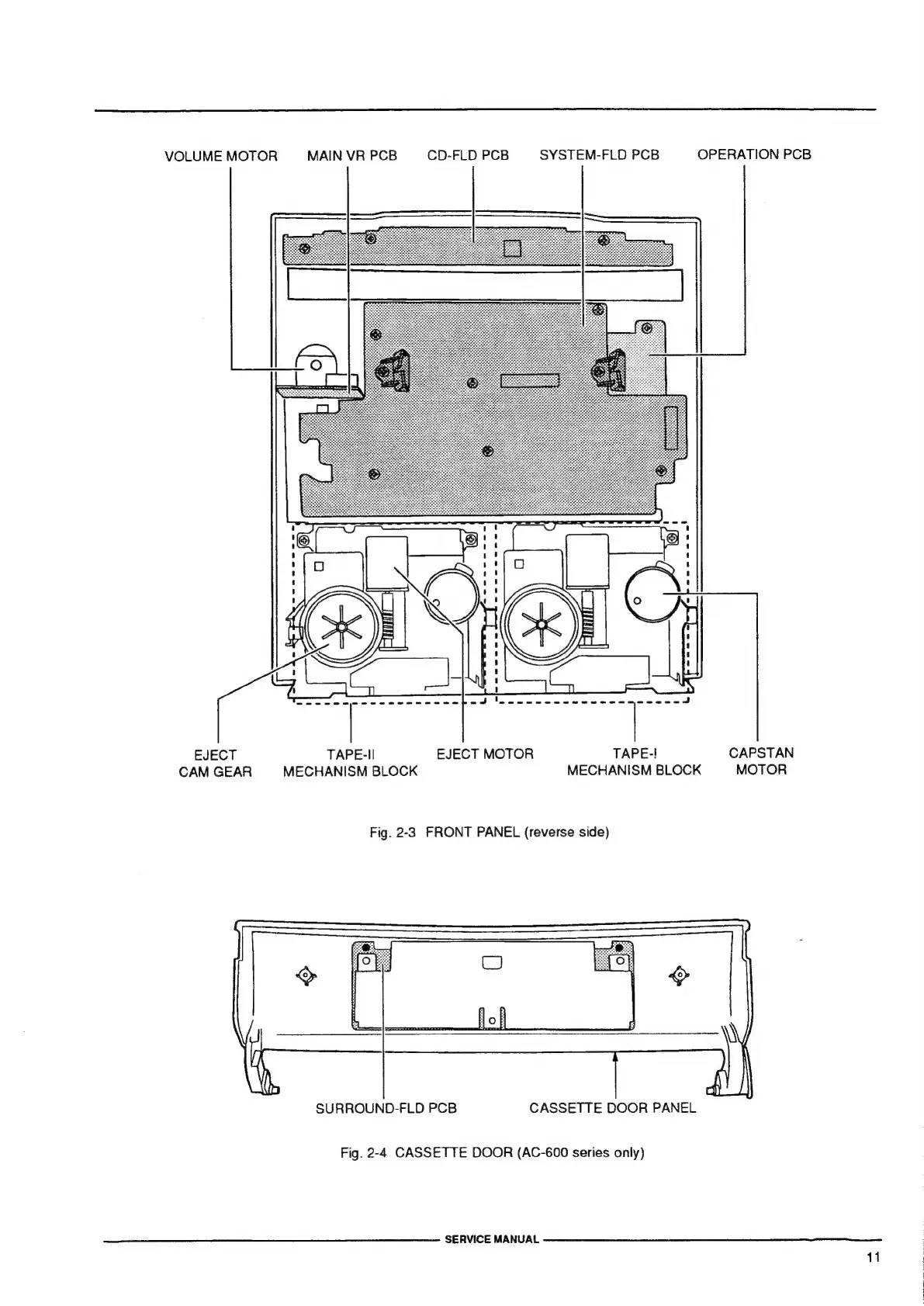

Fig. 2-3 FRONT PANEL (reverse side)
SURROUND-FLD PCB CASSETTE DOOR PANEL
Fig. 2-4 CASSETTE DOOR (AC-600 series only)
SERVICE MANUAL
