Akai X-1810

7.
RECORD/PLAYBACK
CHANGING
MECHANISM

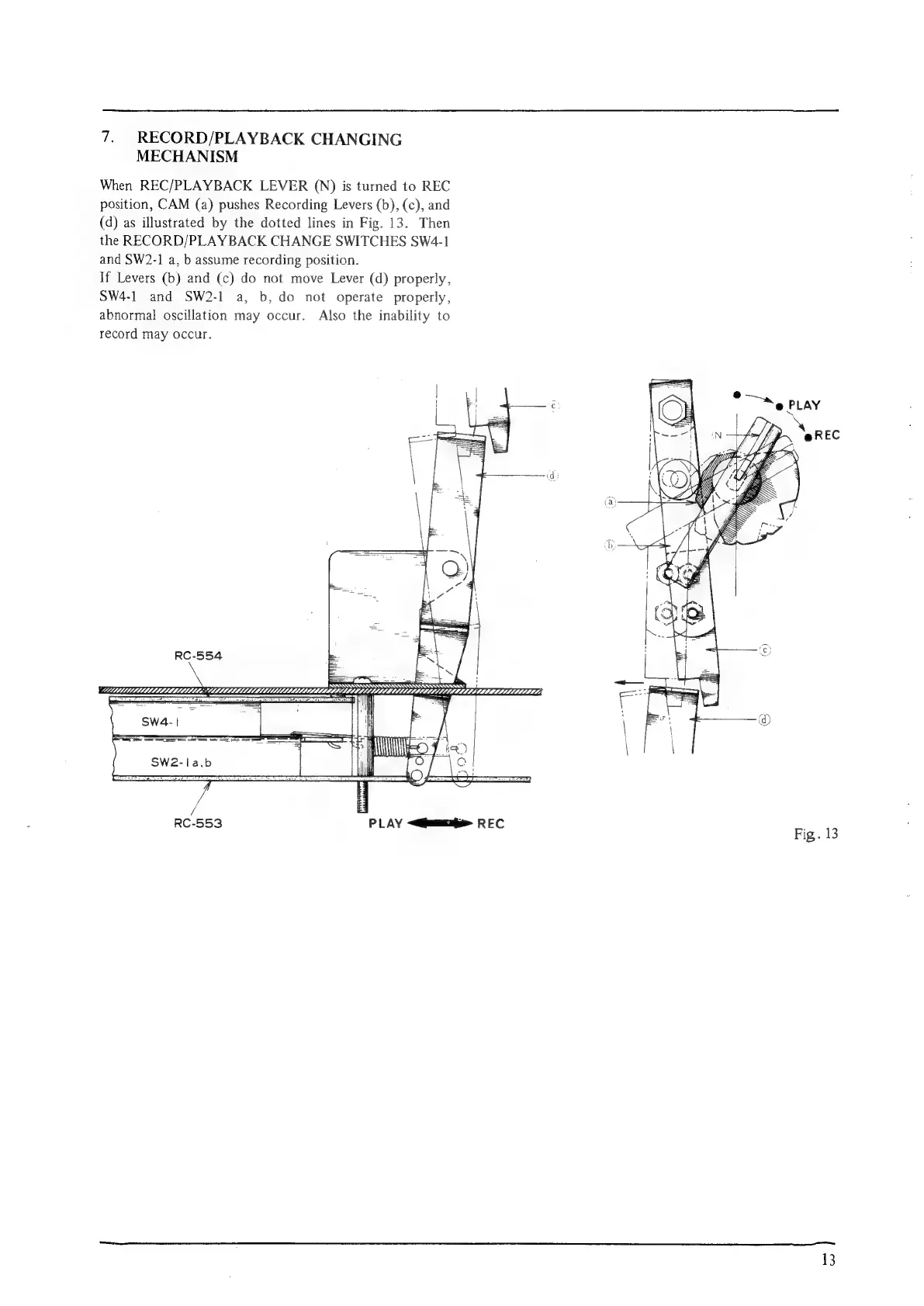

When REC/PLAYBACK LEVER (N) is turned to REC
position, CAM (a) pushes Recording Levers (b), (c), and
(d) as illustrated by the dotted lines in Fig. 13. Then
the RECORD/PLAYBACK CHANGE SWITCHES SW4-1
and SW2-1 a, b assume recording position.
lf Levers (b) and (c) do not move Lever (d) properly,
SW4-1 and SW2-1 a, b, do not operate properly,
abnormal oscillation may occur. Also the inability to
record may occur.
= ant. == x
ESS OO oso
WZ LLL Lh i glg.
/ E
RC-553 PLAY ~<a REC
Fig,. 13
