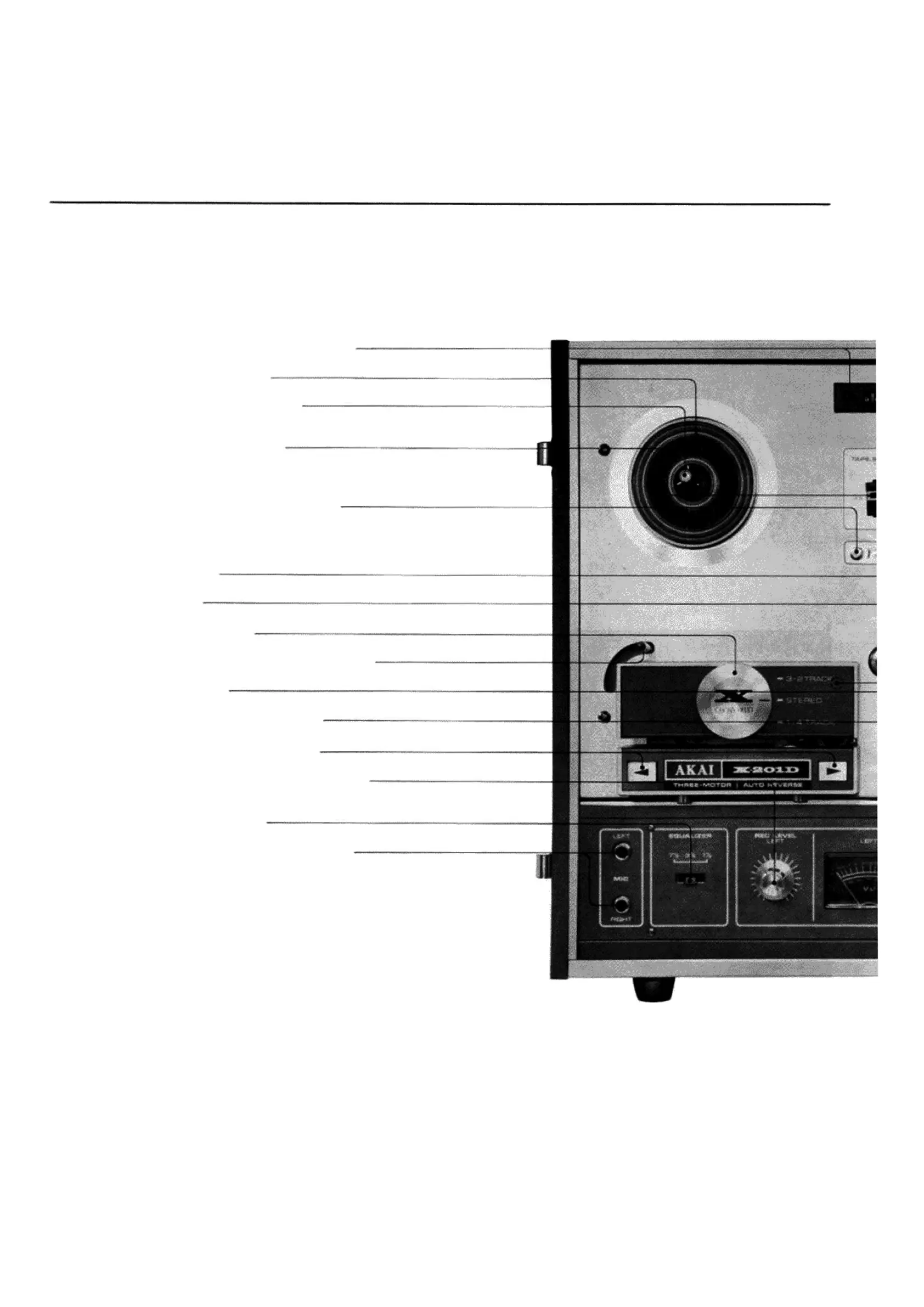

CONTROLS
INDEX COUNTER & RESET BUTTON
SUPPLY REEL TABLE
BUILT-IN REEL RETAINER
Locks reel firmly into place.
TAPE SPEED SELECTOR
Set this Selector and the Equalizer Switch to corresponding
speed.
CYCLE CONVERSION SWITCH (A)
Out position : SO Hz., In position : 60 Hz.
Set this switch and Cycle Conversion Switch (B) to
correspond with are3 power source.
TAPE GUIDE
CAPSTAN
TR ACK SELECTOR
TAPE TENSION LEVER (SENSING POLE)
PINCH WHEEL
RECORDING SAFETY BUTTON
MANUAL REVERSE BUTTONS
RECORDING LEVEL CONTROL (LEFT)
Adjust while observing left VU Meter.
EQUALIZER SWITCH
MICROPHONE JACKS (LFFT/RIGHT)
GS
To Next Page
