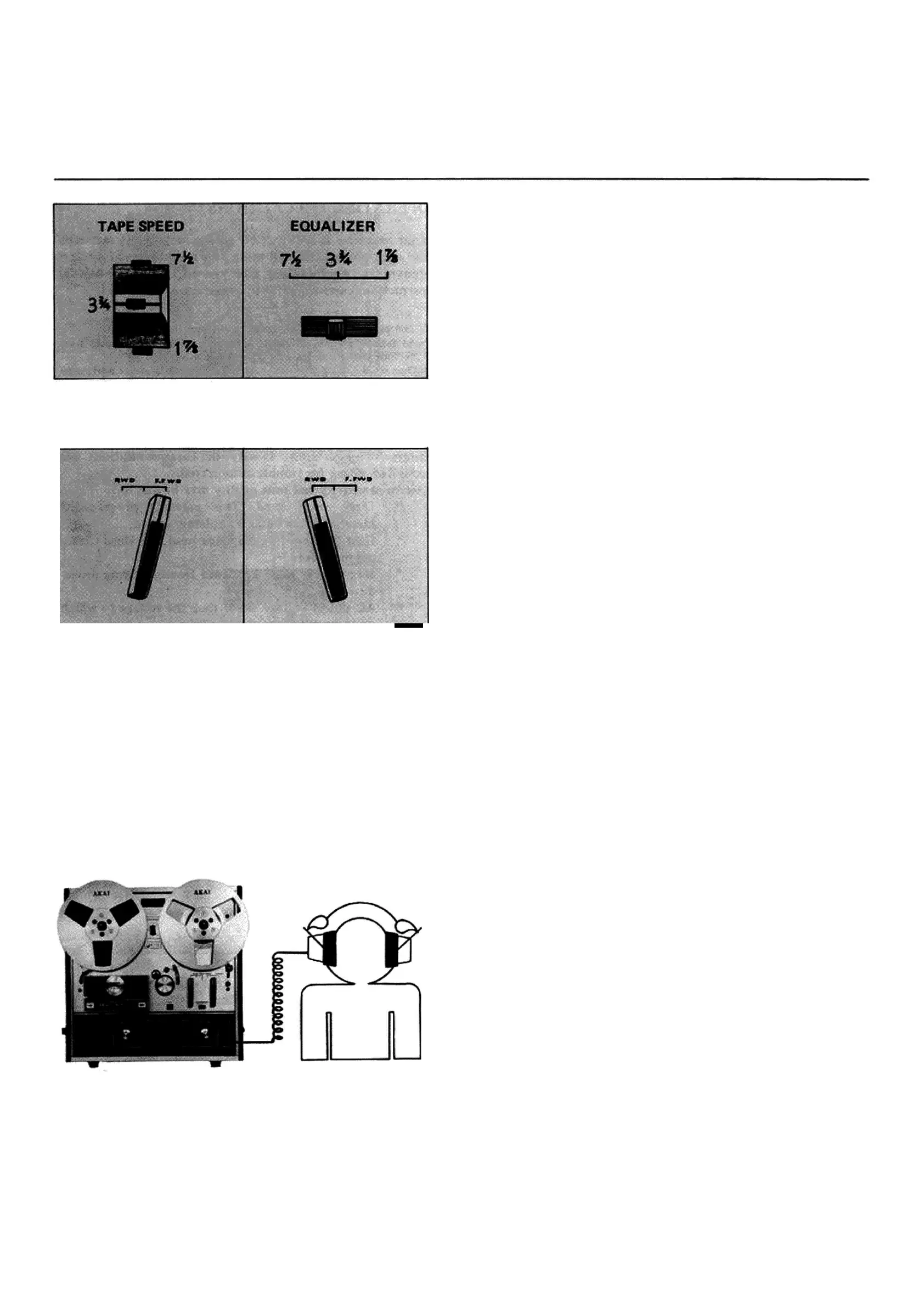

Fig. 8
TAPE SPEED SELECTION & EQUALIZER
This model operates on three tape speeds : 7-1 /2 ips
(19cm/sec), 3-3/4 ips (9.5 cm/sec) and 1-7/8 ips
(4.75 cm/sec). Use the Tape Speed Selector for selection of
tape speed. A Tape Speed Equalizer is also provided for
equalization of the amplifier to correspond with the tape
speed. The setting of the equalizer must always correspond
with that of the Tape Speed Selector. Recording time using
a 1800ft. tape is: (4-track stereo) 6 hours (1-7/8 ips),
3 hours (3-3/4 ips) and 1.5 hours (7-1/2 ips) ; (4-track
monaural) 12 hours (1-7/8 ips), 6 hours (3-3/4 ips) and
3 hours (7-1/2 ips).
Fig. 9
FAST FORWARD & REWIND
For rapid forwarding of the tape set Fast Forward/Rewind
Lever to F.FWD position, and for rapid rewinding of the
tape set to RWD position. This lever cannot be operated
while the Playback/Record Lever is in operation.
AUTOMATIC STOP & SHUT-OFF
The Automatic Stop & Shut-Off functions are also out
standing features of the unit. For automatic stop (to stop
reel movement at end of tape), set the Automatic Stop/
Shut-Off Switch to STOP position, and for automatic
shut-off (to cut off power of the entire unit at end of tape),
set to SHUT-OFF position. CHE models are not equipped
with an automatic shut-off mechanism.
PAUSE CONTROL
To momentarily stop the tape during recording or play
back, set Pause Lever to pause position. Pause control is
useful in editing tape during recording, or to adjust input
level. To release depress the Start Button.
* Pause control does not function during fast forward or rewind
mode.
MONITORING
For monitoring, connect stereo headphones to Headphone
Jack. Use stereo headphones of low (8 £2) impedance. Akai
model ASE-22 or ASE-20 is highly recommended.
