2 Description
2.1 Introduction
Dear Customer:
Thank you for purchasing an AKG
product. This Manual contains important
instructions for setting up and operating
your equipment. Please take a few
minutes to read the instructions below
carefully before operating the equip-
ment. Please keep the Manual for future
reference. Have fun and impress your
audience!
2.2 Unpacking
Check that the package contains all the
parts listed above. If anything is missing,
please contact your AKG dealer.
2.3 Optional Accessories
CU 40 charger
2.4 Description
The GB 40 is a WMS 40 microtools
Series miniature transmitter that has
been specifically designed for electric
guitars and basses but is also suited for
keyboards.
The transmitter features a permanently
attached, swiveling 1/4" jack plug that
allows you to plug the transmitter directly
into the output jack of your instrument. A
built-in spring presses the transmitter
against the instrument to hold it securely
in place. The bottom of the transmitter is
fitted with a soft plastic pad that will leave
no trace on the instrument.
The GB 40 operates on a single fixed,
quartz stabilized carrier frequency in the
710 MHz to 865 MHz UHF band and
uses a permanently attached flexible
antenna.
The color of the battery cover indicates
the carrier frequency of your transmitter.
You can replace the color code battery
cover with the supplied black replace-
ment cover.
2.5 Controls (Refer to fig. 1)
1 ON/MUTE/OFF: This slide switch
provides three positions:
ON: Power to the transmitter is on.
M: The signal delivered by the micro-
phone is muted while power and the
RF carrier frequency remain on. This
prevents the receiver from respond-
ing to interference from other trans-
mitters.
9

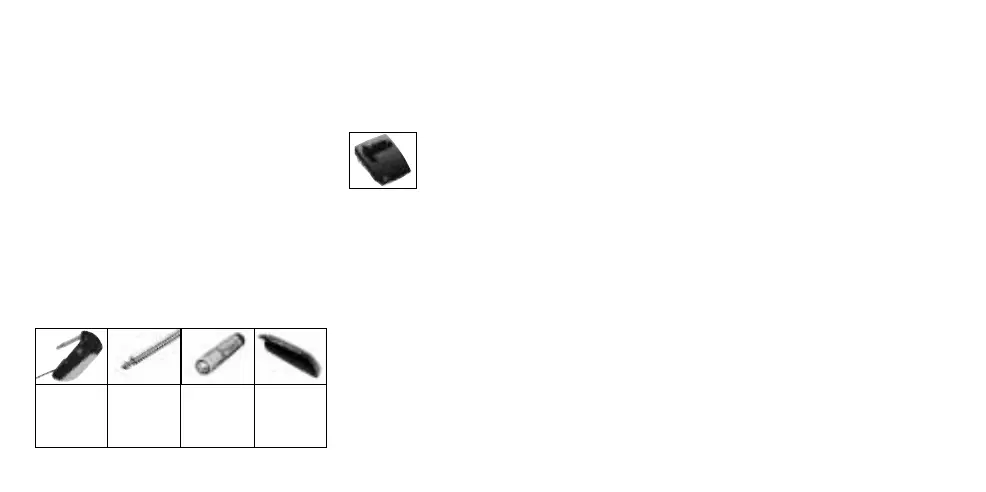

1 GB 40
transmitter
1 long
adapter
plug
1 AAA
size bat-
tery
1 black
battery
cover
