OFF: Power to the transmitter is off.
2 Battery compartment for one 1.5-V
AAA size battery (supplied).
The color of the battery compartment
cover indicates the carrier frequency
of your transmitter:
Frequency Color
US54: 710.400 MHz reddish brown
US58: 734.600 MHz purple
KR3: 745.650 MHz mint green
KR4: 750.900 MHz dark gray
EU62: 802.525 MHz Bordeaux red
EU63: 812.800 MHz yellow
SP1: 848.750 MHz light blue
SP2: 851.750 MHz yellowish green
UK69A: 854.900 MHz violet
UK69B: 858.200 MHz green
ISM1: 863.100 MHz melon yellow
ISM2: 864.375 MHz gray
3 Status LED: Indicates battery status.
LED flashes momentarily upon switching
ON and extinguishes: battery is OK.
LED lights constantly: battery will be
dead in about 60 minutes.
4 Input Gain: This rotary pot sets the
sensitivity of the transmitter’s audio
section.
5 Charging contacts for charging a
rechargeable battery inside the bat-
tery compartment using the optional
CU 40 charger.
6 Jack plug: 1/4" TS jack plug for
plugging the transmitter directly into
an instrument output jack.
7 Flexible antenna
10

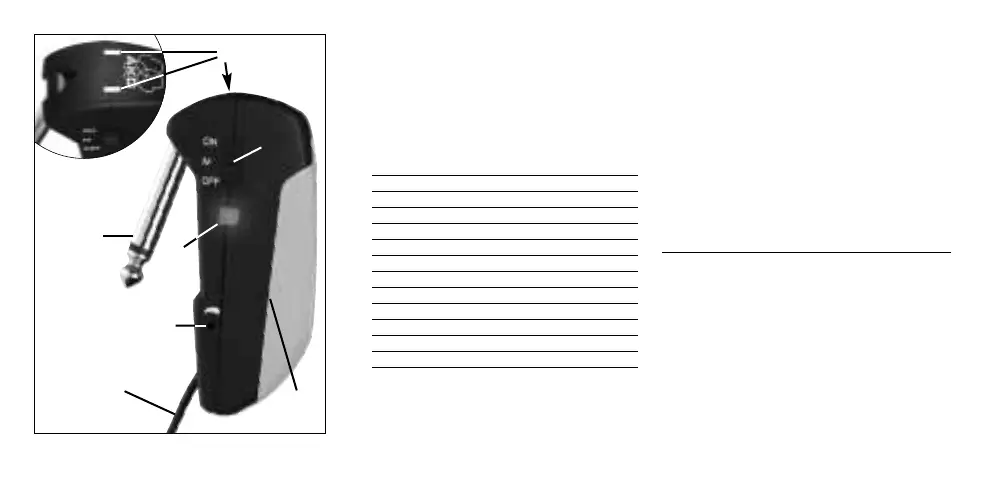

Fig. 1: GB 40 controls.
