4. User Controls.

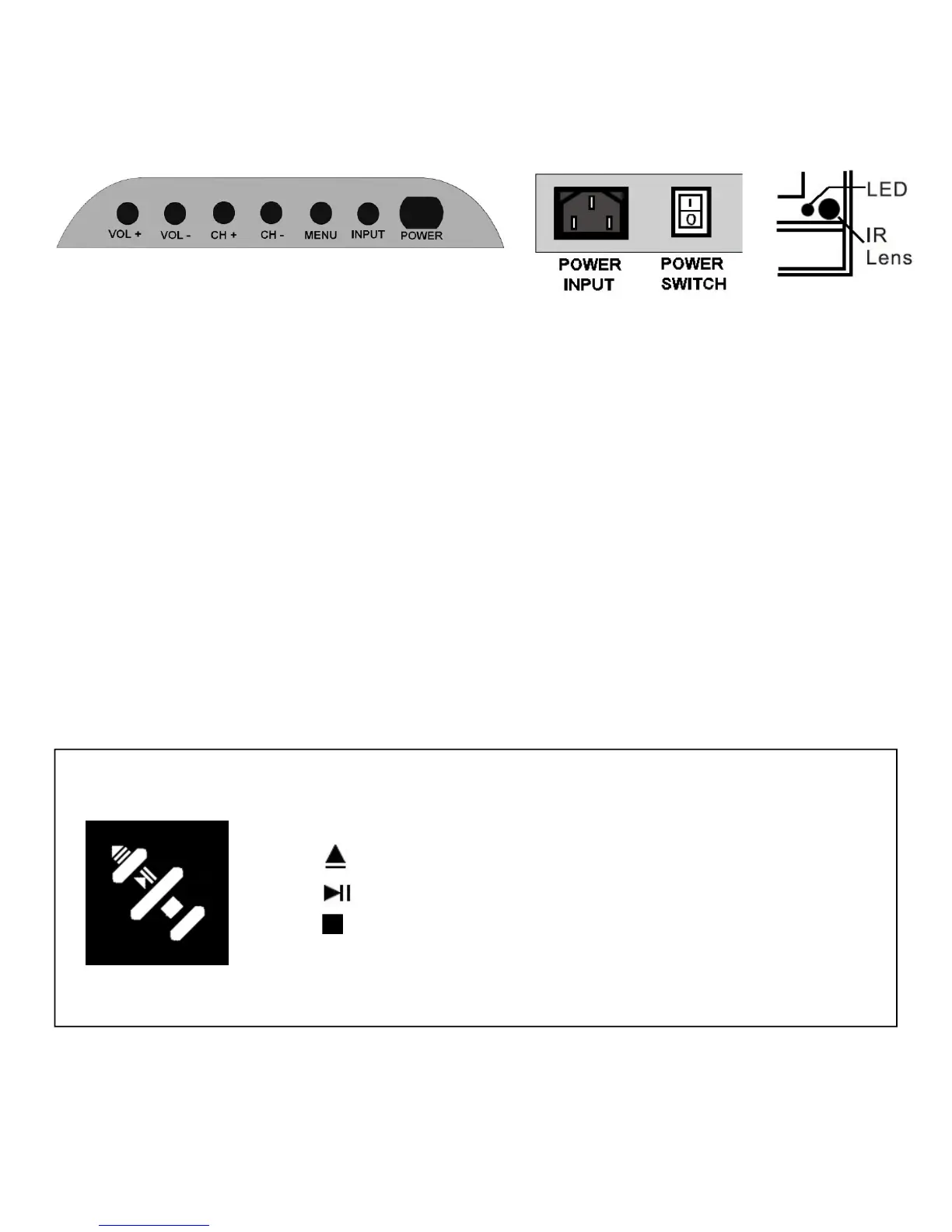

Side View
Side view
DVD Controls
1. Press to insert or eject disc from player.
2. Press to play and pause disc. If paused press to restart playing.
3. Press to stop disc playing. Press once to “pre stop” press again to fully stop.
5
Rear Panel
1. Vol + Increases Volume level. In menu mode, will shift the selection to the right, or increase
level being adjusted.
2. Vol – Reduces Volume level. In menu mode will shift the selection to the left, or decreases level
being adjusted.
3. CH + Increases channel selection by 1 with each press. In menu mode will shift the selection
upwards
4. CH - Reduces channel selection by 1 with each press. In menu mode will shift the selection
downwards
5. Menu. Selects the MENU function. If in a sub menu, will revert to previous level of menu.
6. Input. Selects the different input sources, each press will select another input source.
7. Power. Switches TV On from standby. Also returns TV to standby.
8. Power Input. (Rear of cabinet) Mains supply input 100 – 240V AC 50/60 Hz
9. Power Switch. (Rear of cabinet). Isolates TV from Mains supply.
10. LED. Displays Tv status. In standby illuminates Red, in operation illuminates Green.
11. I R Lens. Remote control receiver lens. Do not obstruct or cover.
To Next Page
